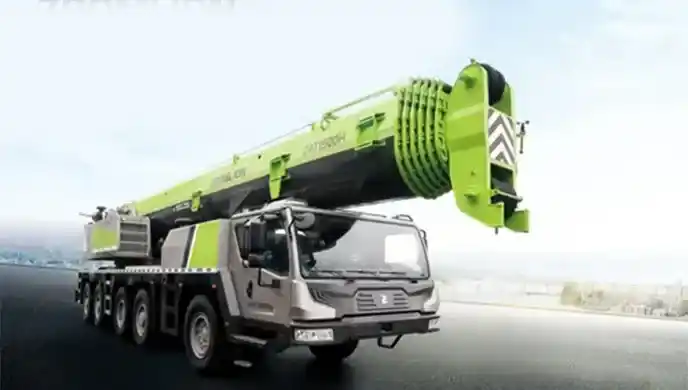

ZOOMLION ZAT1500H753

Ex-Showroom Price

₹ 2.50 Cr - 3.79 Cr

Diesel

150000 kg

74 m

Download ZOOMLION ZAT1500H753 Brochure

Download ZOOMLION ZAT1500H753 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ZOOMLION ZAT1500H753

Engine Power

420 HP

Operating Weight

54000 kg

Lifting Capacity

150000 kg

Lifting Height

74 m

Working Radius

78 m

Drive Type

2WD

About ZOOMLION ZAT1500H753 Overview

The ZOOMLION ZAT1500H753 is a high-capacity all-terrain mobile crane designed for complex heavy-lifting operations in construction, energy, petrochemical, and large infrastructure projects. Manufactur...

ZOOMLION ZAT1500H753 Specs & Features

Engine

Engine MakeMercedes-Benz

Engine ModelOM 471 LA

Engine Type4-Stroke, Inline 6-Cylinder Turbocharged Diesel

AspirationTurbocharged & Intercooled

Gross Power390 HP

Net Power380 HP

Engine Power420 HP

Engine Displacement12000 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM1800

Emission StandardEuro V / China Stage V

Max Torque2600 Nm

Power Train

Transmission TypeAutomatic Powershift

Drive Type2WD

Clutch TypeHydraulic Torque Converter with Lock-Up

No. of Forward Speeds12

No. of Reverse Speeds2

Gear Box TypeZF Automatic Gearbox

Differential TypeInter-Axle & Cross-Axle Locking Differential

Boom & Lifting

Crane TypeAll-Terrain Crane

Boom TypeTelescopic Boom

Boom Length13.5 - 75 m

No. of Boom Sections6

Boom Extension TypeHydraulic Telescopic

Max Lifting Height74 m

Max Working Radius78 m

Rated Capacity

Max Lifting Capacity150 t

Rated Load150 t

Capacity at Min Radius150 tons @ 3 m

Capacity at Max Radius8 tons @ 60 m

Load Moment4200 tm

Fly Jib

Fly Jib Length10 - 21 m

Fly Jib AvailableYes

Max Height with Fly Jib97 m

Speed

Max Travel Speed80 km/h

Creep Speed2 km/h

Dimensions

Overall Length15800 mm

Overall Width3000 mm

Overall Height3990 mm

Wheelbase7450 mm

Min Ground Clearance310 mm

Wheel Track Front2590 mm

Wheel Track Rear2590 mm

ZOOMLION ZAT1500H753 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹5,53,887

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹2,49,00,000
Interest Amount (12 %)	₹83,33,205
Total Amount Payable	₹3,32,33,205

ZOOMLION ZAT1500H753 Pros and cons

Pros

Handles large loads up to 150 t, suitable for major infrastructure and industrial projects like bridges, energy installations, and large buildings.
Long telescopic main boom (~74 m) and optional jib for very high lifts (~102.5 m), giving flexibility on large jobs.
Designed with multi‑axle drive and steer for rough or uneven ground; good mobility on and off paved roads.

Cons

Heavy all‑terrain cranes are expensive to purchase and operate — initial cost plus import GST, logistics & installation can push price to ₹2 Cr+.
Exact cc specification isn’t publicly available for this specific model, making spec comparisons harder without dealer info.
Advanced hydraulic and electronic systems require trained technicians and higher maintenance costs.

Download ZOOMLION ZAT1500H753 Brochure

Download ZOOMLION ZAT1500H753 brochure online. Check out the ZOOMLION ZAT1500H753 PDF brochure at Only Heavy with all features and specifications.

ZOOMLION ZAT1500H753 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
