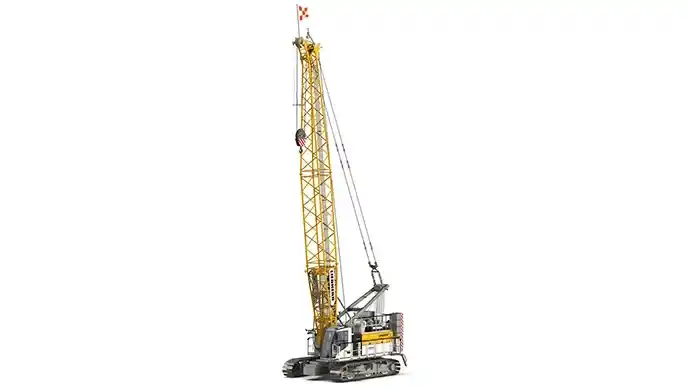

Liebherr LR 1100.1

Ex-Showroom Price

₹ 3.49 Cr - 5.00 Cr

Diesel

100000 kg

60 m

Download Liebherr LR 1100.1 Brochure

Download Liebherr LR 1100.1 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Liebherr LR 1100.1

Engine Power

308 HP

Operating Weight

109800 kg

Lifting Capacity

100000 kg

Lifting Height

60 m

Working Radius

53 m

Drive Type

2WD

About Liebherr LR 1100.1 Overview

The Liebherr LR 1100.1 is a modern 100-ton class crawler crane engineered for reliable and efficient lifting performance across infrastructure, industrial construction, wind energy, and heavy assembly...

Liebherr LR 1100.1 Specs & Features

Engine

Engine MakeLiebherr

Engine ModelD 944 A7-04

Engine Type6-Cylinder, Water-Cooled Diesel

AspirationTurbocharged with Intercooler

Gross Power230 HP

Net Power220 HP

Engine Power308 HP

Engine Displacement7960 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM1700

Emission StandardStage IV

Max Torque1350 Nm

Power Train

Transmission TypeHydrostatic Drive

Drive Type2WD

Clutch TypeN/A (Hydrostatic)

No. of Forward SpeedsInfinitely Variable

No. of Reverse SpeedsInfinitely Variable

Gear Box TypePlanetary Reduction Drive

Differential TypeN/A

Boom & Lifting

Crane TypeLattice Boom Crawler Crane

Boom TypeLattice Steel Boom

Boom Length60 m

No. of Boom Sections8

Boom Extension TypePin-Connected Modular Sections

Max Lifting Height60 m

Max Working Radius53 m

Rated Capacity

Max Lifting Capacity100 t

Rated Load100 t

Capacity at Min Radius100t@3

Capacity at Max Radius3t@52

Load Moment300 tm

Fly Jib

Fly Jib Length10 m

Fly Jib AvailableYes

Max Height with Fly Jib79 m

Speed

Max Travel Speed2 km/h

Creep Speed0.3 km/h

Dimensions

Overall Length8500 mm

Overall Width3000 mm

Overall Height3200 mm

WheelbaseN/A mm

Min Ground Clearance450 mm

Wheel Track Front3000 mm

Wheel Track Rear3000 mm

Liebherr LR 1100.1 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹7,74,107

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹3,48,00,000
Interest Amount (12 %)	₹1,16,46,407
Total Amount Payable	₹4,64,46,407

Liebherr LR 1100.1 Pros and cons

Pros

High Lifting Capacity: 100 t class crane suitable for heavy construction lifts.
Good Reach: Boom height up to ~60 m with large working radius (~52 m).
Reliable Engine: Liebherr diesel with ~308 HP for strong performance.

Cons

Costly Investment: Even used units cost multiple crores INR.
Slow Travel Speed: Crawlers are not as fast as wheel-mounted cranes.
Complex Assembly: Assembly/disassembly requires planning and expertise.

Download Liebherr LR 1100.1 Brochure

Download Liebherr LR 1100.1 brochure online. Check out the Liebherr LR 1100.1 PDF brochure at Only Heavy with all features and specifications.

Liebherr LR 1100.1 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
