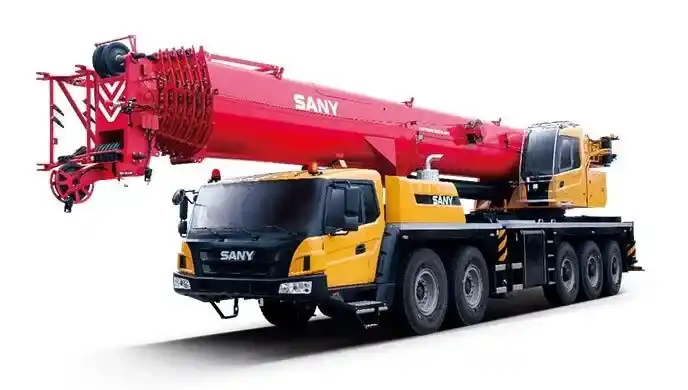

SANY STC1600T7

Ex-Showroom Price

₹ 1.49 Cr - 4.50 Cr

Diesel

160000 kg

102.5 m

Download SANY STC1600T7 Brochure

Download SANY STC1600T7 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of SANY STC1600T7

Engine Power

424 HP

Operating Weight

54600 kg

Lifting Capacity

160000 kg

Lifting Height

102.5 m

Working Radius

93 m

Drive Type

4WD

About SANY STC1600T7 Overview

SANY STC1600T7 is a highly popular Crane in India. This machine comes with a boom length of 76 Meter, and has a ground contract pressure of 77 PSI. In addition the max travel speed of the SANY STC1600...

SANY STC1600T7 Specs & Features

Engine

Engine MakeWeichai

Engine ModelWP12.430N

Engine TypeInline 6-cylinder, 4-stroke diesel

AspirationTurbocharged & Intercooled

Gross Power316 HP

Net Power310 HP

Engine Power424 HP

Engine Displacement11596 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM1900

Emission StandardBS IV

Max Torque2100 Nm

Power Train

Transmission TypeManual / Automated Manual

Drive Type4WD

Clutch TypeHeavy-duty dry single plate clutch

No. of Forward Speeds12

No. of Reverse Speeds2

Gear Box TypeSynchromesh manual gearbox

Differential TypeHeavy-duty hypoid differential with inter-axle lock

Boom & Lifting

Crane TypeHydraulic Truck Crane

Boom Type5-section telescopic boom

Boom Length13.5 m

No. of Boom Sections5

Boom Extension TypeHydraulic telescopic

Max Lifting Height102.5 m

Max Working Radius93 m

Rated Capacity

Max Lifting Capacity160 t

Rated Load160 t

Capacity at Min Radius160t@3

Capacity at Max Radius2.5 t @ 70

Load Moment4900 tm

Fly Jib

Fly Jib Length32 m

Fly Jib AvailableYes

Max Height with Fly Jib102 m

Speed

Max Travel Speed80 km/h

Creep Speed2 km/h

Dimensions

Overall Length15600 mm

Overall Width3000 mm

Overall Height3950 mm

Wheelbase8700 mm

Min Ground Clearance310 mm

Wheel Track Front2600 mm

Wheel Track Rear2580 mm

SANY STC1600T7 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹3,29,218

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹1,48,00,000
Interest Amount (12 %)	₹49,53,070
Total Amount Payable	₹1,97,53,070

SANY STC1600T7 Pros and cons

Pros

Handles up to 160 t of load and very tall lifts (~100 m+ with jib), making it suitable for large industrial & infrastructure projects.

With ~424 HP from a large diesel engine, provides robust performance in heavy lifting and travel with load.

10×6×8 multi-axle drive and steering improves stability and mobility on large sites.

Cons

Big engine and crane weight (~54,600 kg) means higher fuel use and transport logistics cost.

Unlike simple 2WD/4WD vehicles, the 10×6×8 system can be complicated to maintain and drive without trained operators

Due to its size and advanced systems, skilled crane operators and maintenance crew are needed (training & cost).

Download SANY STC1600T7 Brochure

Download SANY STC1600T7 brochure online. Check out the SANY STC1600T7 PDF brochure at Only Heavy with all features and specifications.

SANY STC1600T7 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
