Compare Cranes. Choose Smarter.
SANY STC1600T7 VS SANY SCC1300TB Comparison
SANY STC1600T7
₹ ₹ 1.49 Cr - 4.50 CrL*
VS

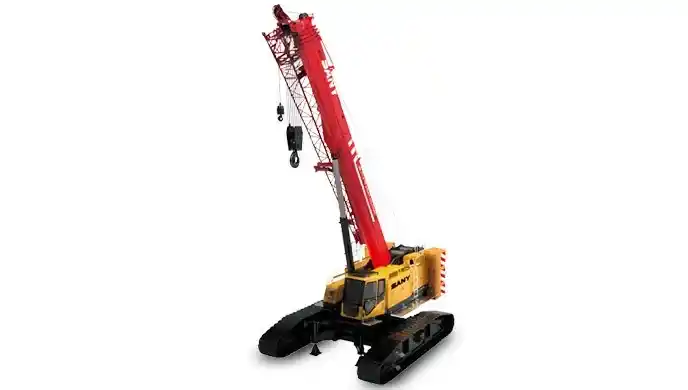

SANY SCC1300TB
₹ 1.80 Cr - 4.00 Cr
SANY STC1600T7
₹149L
SANY SCC1300TB
₹180L
Compare cranes to make an informed purchase decision.
SANY STC1600T7
From ₹ 149 Lakh
SANY SCC1300TB
From ₹ 180 Lakh
Engine
Engine Make
Weichai
ISUZU
Engine Make
Weichai
ISUZU
Engine Model
WP12.430N
6HK1‑XDHAG
Engine Model
WP12.430N
6HK1‑XDHAG
Engine Displacement
11596 cc
7790 cc
Engine Displacement
11596 cc
7790 cc
Engine Power
424 HP
284 HP
Engine Power
424 HP
284 HP
Maximum Torque
2100 Nm
1050 Nm
Maximum Torque
2100 Nm
1050 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Overall Dimension & Weight
Overall Length
15600 mm
12500 mm
Overall Length
15600 mm
12500 mm
Overall Width
3000 mm
3200 mm
Overall Width
3000 mm
3200 mm
Overall Height
3950 mm
3800 mm
Overall Height
3950 mm
3800 mm
Wheel Base
8700 mm
N/A mm
Wheel Base
8700 mm
N/A mm
Min Ground Clearance
310 mm
350 mm
Min Ground Clearance
310 mm
350 mm
Operating Weight
54600 kg
123000 kg
Operating Weight
54600 kg
123000 kg
Boom & Lifting
Crane Type
Hydraulic Truck Crane
Crawler Telescopic Boom Crane
Crane Type
Hydraulic Truck Crane
Crawler Telescopic Boom Crane
Boom Type
5-section telescopic boom
Telescopic boom
Boom Type
5-section telescopic boom
Telescopic boom
Boom Length
13.5 m
10 - 60 m
Boom Length
13.5 m
10 - 60 m
Max Lifting Height
102.5 m
60 m
Max Lifting Height
102.5 m
60 m
Max Working Radius
93 m
60 m
Max Working Radius
93 m
60 m
Rated Capacity
Max Lifting Capacity
160 t
130 t
Max Lifting Capacity
160 t
130 t
Rated Load
160 t
130 t
Rated Load
160 t
130 t
Capacity at Min Radius
160t@3
130t@4
Capacity at Min Radius
160t@3
130t@4
Capacity at Max Radius
2.5 t @ 70
6t@60
Capacity at Max Radius
2.5 t @ 70
6t@60
Hydraulic System
Pump Type
Variable displacement axial piston pump
Variable displacement axial piston
Pump Type
Variable displacement axial piston pump
Variable displacement axial piston
Main Pump Capacity
160 Lpm
200 Lpm
Main Pump Capacity
160 Lpm
200 Lpm
Max Hydraulic Flow
600 Lpm
350 Lpm
Max Hydraulic Flow
600 Lpm
350 Lpm
System Pressure
320 bar
300 bar
System Pressure
320 bar
300 bar
Service Capacities
Engine Oil
28 L
35 L
Engine Oil
28 L
35 L
Rear Axle Oil
35 L
N/A L
Rear Axle Oil
35 L
N/A L
Transmission Oil
35 L
22 L
Transmission Oil
35 L
22 L
Hydraulic System
1200 L
1000 L
Hydraulic System
1200 L
1000 L
Fuel Tank
400 L
350 L
Fuel Tank
400 L
350 L
Cooling System
45 L
55 L
Cooling System
45 L
55 L
Steering & Brakes
Steering Type
Hydraulic power steering (multi-axle steering)
Hydraulic crawler steering
Steering Type
Hydraulic power steering (multi-axle steering)
Hydraulic crawler steering
Turning Radius
12 m
8 m
Turning Radius
12 m
8 m
Service Brake Type
Full air dual-circuit drum brakes with ABS
Multi‑disc wet brake
Service Brake Type
Full air dual-circuit drum brakes with ABS
Multi‑disc wet brake
Parking Brake Type
Spring-actuated parking brake
Spring applied, hydraulic released
Parking Brake Type
Spring-actuated parking brake
Spring applied, hydraulic released
Tyres
Tyre Size
385/95 R25
N/A (crawler tracks)
Tyre Size
385/95 R25
N/A (crawler tracks)
No. of Tyres
10
N/A
No. of Tyres
10
N/A
Electrical & General
Battery
24/200
24 V / 2 × 100 Ah
Battery
24/200
24 V / 2 × 100 Ah
Alternator Output
70 A
80 A
Alternator Output
70 A
80 A
Max Travel Speed
80 km/h
1.8 km/h
Max Travel Speed
80 km/h
1.8 km/h
SANY STC1600T7
Pros
- Handles up to 160 t of load and very tall lifts (~100 m+ with jib), making it suitable for large industrial & infrastructure projects.
- With ~424 HP from a large diesel engine, provides robust performance in heavy lifting and travel with load.
- 10×6×8 multi-axle drive and steering improves stability and mobility on large sites.
SANY SCC1300TB
Pros
- 130‑Tonne Class Telescopic Boom Crawler Crane: Combines crawler mobility with telescopic performance counters traditional lattice crawlers.
- Long Reach: 60 m full boom + up to ~18 m fixed jib for extra reach.
- Compact Transport: Relatively compact dimensions for a 130 t crawler crane make on‑site transport easier.
