Compare Cranes. Choose Smarter.
ACE 40XW VS ZOOMLION ZCC850V Comparison

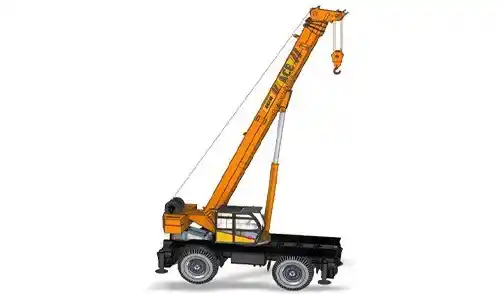

ACE 40XW
₹ ₹ 1.20 Cr - 1.50 CrL*
VS
ZOOMLION ZCC850V
₹ 1.20 Cr - 1.60 Cr
ACE 40XW
₹120L
ZOOMLION ZCC850V
₹120L
Compare cranes to make an informed purchase decision.
ACE 40XW
From ₹ 120 Lakh
ZOOMLION ZCC850V
From ₹ 120 Lakh
Engine
Engine Make
Ashok Leyland H-series
Weichai
Engine Make
Ashok Leyland H-series
Weichai
Engine Model
H6ETI-CRS
WP10G336E341
Engine Model
H6ETI-CRS
WP10G336E341
Engine Displacement
3839 cc
6700 cc
Engine Displacement
3839 cc
6700 cc
Engine Power
180 HP
260 HP
Engine Power
180 HP
260 HP
Maximum Torque
450 Nm
1500 Nm
Maximum Torque
450 Nm
1500 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Overall Dimension & Weight
Overall Length
11500 mm
13500 mm
Overall Length
11500 mm
13500 mm
Overall Width
2600 mm
3300 mm
Overall Width
2600 mm
3300 mm
Overall Height
3450 mm
3200 mm
Overall Height
3450 mm
3200 mm
Wheel Base
4200 mm
Not Applicable mm
Wheel Base
4200 mm
Not Applicable mm
Min Ground Clearance
350 mm
500 mm
Min Ground Clearance
350 mm
500 mm
Operating Weight
40000 kg
88000 kg
Operating Weight
40000 kg
88000 kg
Boom & Lifting
Crane Type
Pick & Carry Crane
Crawler Crane
Crane Type
Pick & Carry Crane
Crawler Crane
Boom Type
Telescopic Boom
Lattice Boom
Boom Type
Telescopic Boom
Lattice Boom
Boom Length
12.8 m – 30 m m
13 - 61 m
Boom Length
12.8 m – 30 m m
13 - 61 m
Max Lifting Height
32 m
55 m
Max Lifting Height
32 m
55 m
Max Working Radius
16 m
38 m
Max Working Radius
16 m
38 m
Rated Capacity
Max Lifting Capacity
40 t
85 t
Max Lifting Capacity
40 t
85 t
Rated Load
40 t
85 t
Rated Load
40 t
85 t
Capacity at Min Radius
40 tons @ 3 m
85 tons @ 3.7 m
Capacity at Min Radius
40 tons @ 3 m
85 tons @ 3.7 m
Capacity at Max Radius
8 tons @ 26 m
8 tons @ 56 m
Capacity at Max Radius
8 tons @ 26 m
8 tons @ 56 m
Hydraulic System
Pump Type
Gear Pump
Variable Displacement Axial Piston Pump
Pump Type
Gear Pump
Variable Displacement Axial Piston Pump
Main Pump Capacity
110 Lpm
320 Lpm
Main Pump Capacity
110 Lpm
320 Lpm
Max Hydraulic Flow
220 Lpm
320 Lpm
Max Hydraulic Flow
220 Lpm
320 Lpm
System Pressure
250 bar
320 bar
System Pressure
250 bar
320 bar
Service Capacities
Engine Oil
16 L
28 L
Engine Oil
16 L
28 L
Rear Axle Oil
18 L
Not Applicable L
Rear Axle Oil
18 L
Not Applicable L
Transmission Oil
18 L
40 L
Transmission Oil
18 L
40 L
Hydraulic System
300 L
700 L
Hydraulic System
300 L
700 L
Fuel Tank
220 L
400 L
Fuel Tank
220 L
400 L
Cooling System
25 L
60 L
Cooling System
25 L
60 L
Steering & Brakes
Steering Type
Fully Hydraulic Power Steering
Differential Steering
Steering Type
Fully Hydraulic Power Steering
Differential Steering
Turning Radius
7.5 m
In-place Pivot Turn m
Turning Radius
7.5 m
In-place Pivot Turn m
Service Brake Type
Full Air Dual Line Brakes
Hydraulic Wet Disc Brake
Service Brake Type
Full Air Dual Line Brakes
Hydraulic Wet Disc Brake
Parking Brake Type
Spring Actuated, Air Released
Spring Applied, Hydraulic Release
Parking Brake Type
Spring Actuated, Air Released
Spring Applied, Hydraulic Release
Tyres
Tyre Size
14.00 x 25 – 20 PR
Not Applicable (Crawler Tracks)
Tyre Size
14.00 x 25 – 20 PR
Not Applicable (Crawler Tracks)
No. of Tyres
4
Not Applicable
No. of Tyres
4
Not Applicable
Electrical & General
Battery
24V / 150 Ah
24V / 180Ah
Battery
24V / 150 Ah
24V / 180Ah
Alternator Output
70 A
70 A
Alternator Output
70 A
70 A
Max Travel Speed
40 km/h
1.3 km/h
Max Travel Speed
40 km/h
1.3 km/h
ACE 40XW
Pros
- High lifting capacity: 40 T is robust for heavy construction, industrial and infrastructure tasks.
- Telescopic boom with wide reach: Boom from ~10.3 m up to ~32.8 m for versatile applications (multiple working radii).
- Rough terrain mobility: 4×4 drive and earth‑mover tyres enhance traction and stability on uneven sites.
ZOOMLION ZCC850V
Pros
- 85 t lifting capacity and up to ~61 m boom length provide strong lift/reach for construction & infrastructure jobs.
- Crawler tracks distribute weight and deliver very good traction on soft, uneven, and muddy ground conditions.
- A 260 HP Cummins engine delivers reliable and efficient power for lifting and slewing operations.
