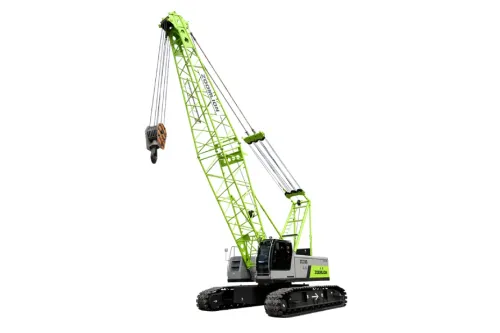

ZOOMLION ZCC850V

Ex-Showroom Price

₹ 80 L - 1.25 Cr

Diesel

85000 kg

55 m

Download ZOOMLION ZCC850V Brochure

Download ZOOMLION ZCC850V brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ZOOMLION ZCC850V

Engine Power

260 HP

Operating Weight

88000 kg

Lifting Capacity

85000 kg

Lifting Height

55 m

Working Radius

38 m

Drive Type

2WD

About ZOOMLION ZCC850V Overview

The ZOOMLION ZCC850V is a high-performance crawler crane designed for demanding lifting operations in infrastructure, energy, petrochemical, and industrial construction projects. Manufactured by Zooml...

ZOOMLION ZCC850V Specs & Features

Engine

Engine MakeWeichai

Engine ModelWP10G336E341

Engine Type4-Stroke, Turbocharged, Intercooled Diesel

AspirationTurbocharged Aftercooled

Gross Power247 HP

Net Power242 HP

Engine Power260 HP

Engine Displacement6700 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM2100

Emission StandardChina Stage III / Tier 3

Max Torque1500 Nm

Power Train

Transmission TypeHydraulic Pilot Controlled

Drive Type2WD

Clutch TypeWet Multi-Disc

No. of Forward Speeds2

No. of Reverse Speeds2

Gear Box TypePlanetary Gearbox

Differential TypeNot Applicable (Crawler Mounted)

Boom & Lifting

Crane TypeCrawler Crane

Boom TypeLattice Boom

Boom Length13 - 61 m

No. of Boom Sections6

Boom Extension TypePin-Connected

Max Lifting Height55 m

Max Working Radius38 m

Rated Capacity

Max Lifting Capacity85 t

Rated Load85 t

Capacity at Min Radius85 tons @ 3.7 m

Capacity at Max Radius8 tons @ 56 m

Load Moment340 tm

Fly Jib

Fly Jib Length19 m

Fly Jib AvailableYes

Max Height with Fly Jib82 m

Speed

Max Travel Speed1.3 km/h

Creep Speed0.3 km/h

Dimensions

Overall Length13500 mm

Overall Width3300 mm

Overall Height3200 mm

WheelbaseNot Applicable mm

Min Ground Clearance500 mm

Wheel Track Front3300 mm

Wheel Track Rear3300 mm

ZOOMLION ZCC850V EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,75,731

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹79,00,000
Interest Amount (12 %)	₹26,43,868
Total Amount Payable	₹1,05,43,868

ZOOMLION ZCC850V Pros and cons

Pros

85 t lifting capacity and up to ~61 m boom length provide strong lift/reach for construction & infrastructure jobs.
Crawler tracks distribute weight and deliver very good traction on soft, uneven, and muddy ground conditions.
A 260 HP Cummins engine delivers reliable and efficient power for lifting and slewing operations.

Cons

As a crawler crane, this model cannot drive on public roads on its own — needs transport via trailers between sites.
Crawler travel speed is slow (~1–2 km/h), making relocation on large sites time‑consuming.
FOB list pricing is only approximate; import duties, freight, and GST significantly affect the India on‑road cost.

Download ZOOMLION ZCC850V Brochure

Download ZOOMLION ZCC850V brochure online. Check out the ZOOMLION ZCC850V PDF brochure at Only Heavy with all features and specifications.

ZOOMLION ZCC850V Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
