Leeboy 523

Ex-Showroom Price

₹ 92 L - 94 L

Diesel

Diesel

24200 kg

24200 kg

6114 mm

6114 mm

Download Leeboy 523 Brochure

Download Leeboy 523 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Leeboy 523

Engine Power

Engine Power

169 HP

Operating Weight

Operating Weight

24200 kg

Bucket capacity

Bucket capacity

1.1 Cu.m

Hydraulic system

Hydraulic system

224 L/min

Maximum Digging Depth

Maximum Digging Depth

6114 mm

Boom Height

Boom Height

9.67 m

About Leeboy 523 Overview

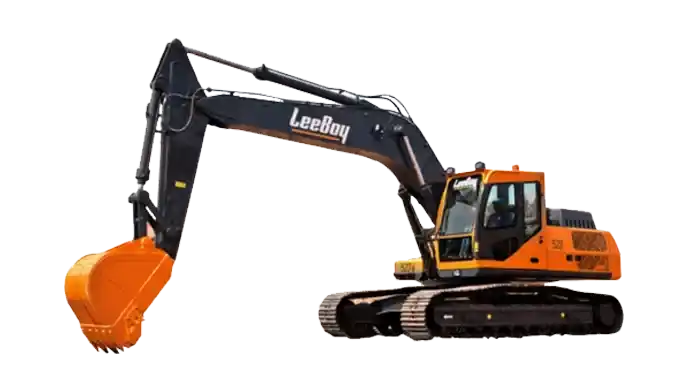

The LeeBoy 523 is a medium‑class hydraulic excavator designed for light to medium‑scale construction and earth‑moving projects. It combines robust power, reliable components, and practical features ai...

Leeboy 523 Specifications & Features

Engine

Engine ModelCummins 6BTA 5.9
Gross Power126 kW
Net Power126 kW
Engine Power169 HP
Displacement5900 cc
Number of Cylinders6 Nos
Rated RPM2100 rpm
Emission StandardBSII
Max Torque660 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight24200 kg
Machine Weight24200 kg
Counterweight4500 kg
Ground Pressure45.1 kPa

Hydraulic System

Main Pump Type2 × Variable Displacement Pumps + 1 Gear Pump (pilot)
Maximum Hydraulic Flow2 × 224 + 1 × 2 L/min
Maximum System Pressure324 bar
Hydraulic Oil Capacity260 litres
Auxiliary Hydraulic Flow180 L/min

Working Range

Maximum Digging Depth6114 mm
Maximum Vertical Wall Digging Depth5494 mm
Maximum Reach at Ground Level9430 mm
Maximum Dumping Height6886 mm
Maximum Cutting Height9671 mm
Boom Length5.700 m
Arm Length2400 mm
Bucket Breakout Force145 kN
Arm Tear-out Force111 kN

Leeboy 523 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹2,02,424

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹91,00,000
Interest Amount (12 %)₹30,45,468
Total Amount Payable₹1,21,45,468

Leeboy 523 Pros and cons

like

Pros

  • Strong Engine Performance
  • Good Digging Force & Fuel Capacity
  • Balanced Fuel Efficiency
    • dislike

    Cons

  • Not Ideal for Very Heavy Duty Tasks
  • Fixed Standard Bucket Size
  • Heavier Machine Weight

    • Download Leeboy 523 Brochure PDF

    Download Leeboy 523 brochure online. Check out the Leeboy 523 PDF brochure at Only Heavy with all features and specifications.

    Leeboy 523 Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching
