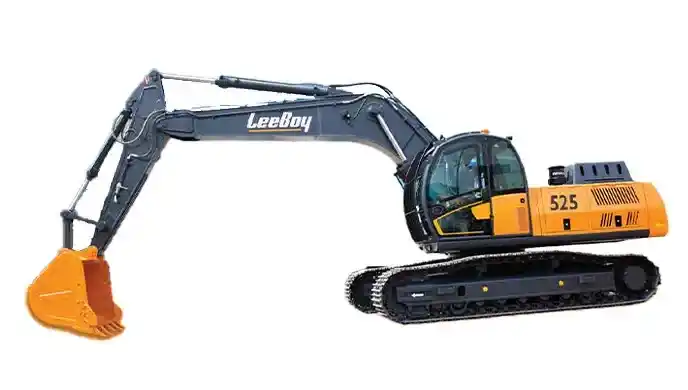

Leeboy 525E

Ex-Showroom Price

₹ 60 L - 90 L

Diesel

24200 kg

6863 mm

Download Leeboy 525E Brochure

Download Leeboy 525E brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Leeboy 525E

Engine Power

170 HP

Operating Weight

24200 kg

Bucket capacity

1.6 Cu.m

Hydraulic system

224 L/min

Maximum Digging Depth

6863 mm

Boom Height

5.7 m

About Leeboy 525E Overview

Leeboy is a very popular name in the heavy construction equipment segment. Leeboy 525E is designed with segment best specification, which helps in providing better work efficiency. The Excavator model...

Leeboy 525E Specifications & Features

Engine

Engine ModelCummins QSB 6.7 170 (CRDI Turbocharged

Gross Power125 kW

Net Power120 kW

Engine Power170 HP

Displacement6700 cc

Number of Cylinders6 Nos

Rated RPM2000 rpm

Emission StandardBS IV

Max Torque660 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight24200 kg

Machine Weight24200 kg

Counterweight4367 kg

Ground Pressure45 kPa

Hydraulic System

Main Pump TypeVariable Displacement Pumps + Pilot Gear Pump

Maximum Hydraulic Flow469 L/min

Maximum System Pressure324 bar

Hydraulic Oil Capacity260 litres

Auxiliary Hydraulic Flow154 L/min

Working Range

Maximum Digging Depth6863 mm

Maximum Vertical Wall Digging Depth5494 mm

Maximum Reach at Ground Level9430 mm

Maximum Dumping Height6886 mm

Maximum Cutting Height9671 mm

Boom Length5.700 m

Arm Length2400 mm

Bucket Breakout Force145 kN

Arm Tear-out Force111 kN

Leeboy 525E EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,31,242

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹59,00,000
Interest Amount (12 %)	₹19,74,534
Total Amount Payable	₹78,74,534

Leeboy 525E Pros and cons

Pros

Strong digging force — ~145 kN bucket force for robust earthmoving.

Powerful engine — ~170 hp from Cummins engine with high torque (660 Nm), giving good performance under load.

Standard comfort features — AC cabin and GPS included as standard, improving operator comfort and productivity.

Cons

Price transparency: No official listed price — needs dealer engagement for a quote.

Higher ground pressure: ~45.1 kPa can be higher than some competitors for soft‐ground conditions.

Weight: ~24,200 kg operating weight is relatively heavy, potentially increasing transport and fuel costs.

Download Leeboy 525E Brochure PDF

Download Leeboy 525E brochure online. Check out the Leeboy 525E PDF brochure at Only Heavy with all features and specifications.

Leeboy 525E Uses

Excavation

Digging

Construction

Material handling

Trenching
