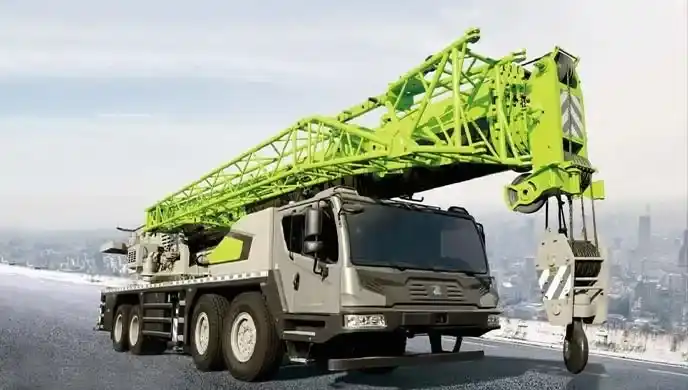

ZOOMLION ZTC1100R

Ex-Showroom Price

₹ 1.19 Cr - 1.60 Cr

Diesel

Diesel

110000 kg

110000 kg

86 m

86 m

Download ZOOMLION ZTC1100R Brochure

Download ZOOMLION ZTC1100R brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ZOOMLION ZTC1100R

Engine Power

Engine Power

360 HP

Operating Weight

Operating Weight

44000 kg

Lifting Capacity

Lifting Capacity

110000 kg

Lifting Height

Lifting Height

86 m

Working Radius

Working Radius

50 m

Drive Type

Drive Type

2WD

About ZOOMLION ZTC1100R Overview

ZOOMLION ZTC1100R is a highly popular Crane in India. This machine comes with a boom length of 19 Meter, and has a ground contract pressure of 86 PSI. In addition the max travel speed of the ZOOMLION ...

ZOOMLION ZTC1100R Specs & Features

Engine

Engine MakeWeichai
Engine ModelWP12.430E50
Engine Type4-Stroke, Turbocharged, Intercooled Diesel
AspirationTurbocharged
Gross Power316 HP
Net Power305 HP
Engine Power360 HP
Engine Displacement11900 cc
No. of Cylinders6
Fuel TypeDiesel
Rated RPM1900
Emission StandardStage V / BS-IV
Max Torque2060 Nm

Power Train

Transmission TypeManual
Drive Type2WD
Clutch TypeDry Single Plate Heavy Duty
No. of Forward Speeds12
No. of Reverse Speeds2
Gear Box TypeSynchromesh / Heavy Duty Manual
Differential TypeDouble Reduction Hypoid

Boom & Lifting

Crane TypeTruck Mounted Hydraulic Crane
Boom TypeTelescopic
Boom Length12 - 52 m
No. of Boom Sections5
Boom Extension TypeFull Hydraulic
Max Lifting Height86 m
Max Working Radius50 m

Rated Capacity

Max Lifting Capacity110 t
Rated Load110 t
Capacity at Min Radius110 tons @ 3 m
Capacity at Max Radius12 tons @ 44 m
Load Moment400 tm

Fly Jib

Fly Jib Length19 m
Fly Jib AvailableYes
Max Height with Fly Jib70 m

Speed

Max Travel Speed85 km/h
Creep Speed2 km/h

Dimensions

Overall Length15600 mm
Overall Width3000 mm
Overall Height3050 mm
Wheelbase7900 mm
Min Ground Clearance300 mm
Wheel Track Front2320 mm
Wheel Track Rear2060 mm

ZOOMLION ZTC1100R EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

2,62,484

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount1,18,00,000
Interest Amount (12 %)39,49,069
Total Amount Payable1,57,49,069

ZOOMLION ZTC1100R Pros and cons

like

Pros

  • Handles 110 t loads for major construction and industrial lifting tasks.
  • Robust 360 HP Cummins engine ensures good torque and performance under load.
  • 59.2 m main boom and ~86 m with jib offer excellent vertical and horizontal working envelope.
  • like

    Cons

  • Import duties, freight and GST make precise India on‑road pricing hard to estimate. Actual cost usually higher than FOB quoted prices.
  • Exact engine displacement (cc) isn’t always published in official spec sheets — most listings only give power and model.
  • Working radius varies by boom extension and load chart — no single fixed value in general docs.
  • Download ZOOMLION ZTC1100R Brochure

    Download ZOOMLION ZTC1100R brochure online. Check out the ZOOMLION ZTC1100R PDF brochure at Only Heavy with all features and specifications.

    ZOOMLION ZTC1100R Uses

    uses

    Construction Lifting

    uses

    Material Handling

    uses

    Infrastructure Projects

    uses

    Heavy Lifting

    uses

    Tower Construction
