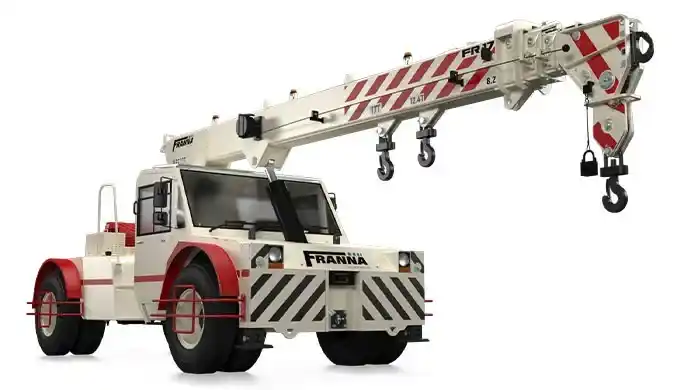

TEREX FR 17

Ex-Showroom Price

₹ 47 L - 49 L

Diesel

17000 kg

20 m

Download TEREX FR 17 Brochure

Download TEREX FR 17 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of TEREX FR 17

Engine Power

101 HP

Operating Weight

16800 kg

Lifting Capacity

17000 kg

Lifting Height

20 m

Working Radius

16 m

Drive Type

4WD

About TEREX FR 17 Overview

TEREX FR 17 is a highly popular Crane in India. The price range of this construction equipment starts from ₹ 51 Lakh and goes up to ₹ 53 Lakh. This machine comes with a boom length of 21 Meter, and ha...

TEREX FR 17 Specs & Features

Engine

Engine MakeVECV

Engine ModelE494

Engine Type4‑Stroke Diesel, Water‑Cooled

AspirationTurbocharged

Gross Power74 HP

Net Power74 HP

Engine Power101 HP

Engine Displacement4900 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2400

Emission StandardCEV BS‑IV

Max Torque400 Nm

Power Train

Transmission TypeCarraro / Synchromesh shuttle

Drive Type4WD

Clutch TypeTorque Converter

No. of Forward Speeds4

No. of Reverse Speeds2

Gear Box TypeSynchro Shuttle

Differential TypeHeavy‑Duty Differential with Lock

Boom & Lifting

Crane TypePick & Carry Mobile Crane

Boom TypeHeavy Duty U‑Section Telescopic

Boom Length18 m

No. of Boom Sections4

Boom Extension TypeManual extension rod

Max Lifting Height20 m

Max Working Radius16 m

Rated Capacity

Max Lifting Capacity17 t

Rated Load17 t

Capacity at Min Radius17 t @ ~2 m

Capacity at Max Radius0.8 t @ ~12 m

Load Moment65 tm

Fly Jib

Fly Jib Length2.7 m

Fly Jib AvailableYes

Max Height with Fly Jib20 m

Speed

Max Travel Speed42 km/h

Creep Speed1.8 km/h

Dimensions

Overall Length9800 mm

Overall Width2500 mm

Overall Height3150 mm

Wheelbase3200 mm

Min Ground Clearance325 mm

Wheel Track Front1950 mm

Wheel Track Rear1950 mm

TEREX FR 17 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,02,324

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹46,00,000
Interest Amount (12 %)	₹15,39,468
Total Amount Payable	₹61,39,468

TEREX FR 17 Pros and cons

Pros

Powerful 101 HP engine for heavy lifting

Small turning radius (6.77 m) — good maneuverability

High boom height (~20 m) for construction work

Cons

Higher price compared with 15-ton cranes

Heavy operating weight (16.8 tons) – transport may require trailer

Not ideal for very tight indoor factory spaces

Download TEREX FR 17 Brochure

Download TEREX FR 17 brochure online. Check out the TEREX FR 17 PDF brochure at Only Heavy with all features and specifications.

TEREX FR 17 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
