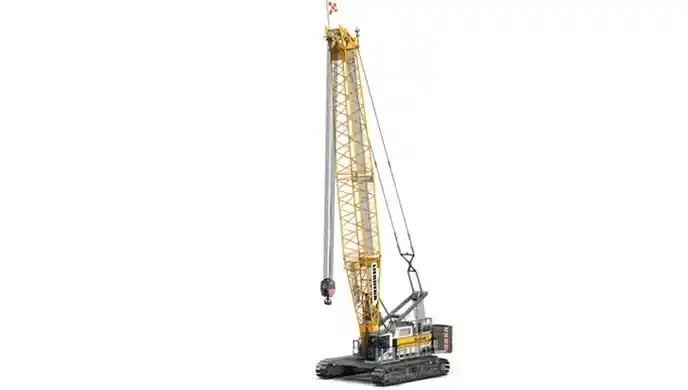

Liebherr LR 1130.1 unplugged

Ex-Showroom Price

₹ 57 L - 60 L

Electric

137000 kg

126 m

Download Liebherr LR 1130.1 unplugged Brochure

Download Liebherr LR 1130.1 unplugged brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Liebherr LR 1130.1 unplugged

Engine Power

347 HP

Operating Weight

150400 kg

Lifting Capacity

137000 kg

Lifting Height

126 m

Working Radius

78 m

Drive Type

2WD

About Liebherr LR 1130.1 unplugged Overview

Liebherr LR 1130.1 unplugged is a highly popular crane in India. Liebherr LR 1130.1 unplugged is quite justifiable, given the features it offers. This machine comes with a boom length of 80 Meter. In ...

Liebherr LR 1130.1 unplugged Specs & Features

Engine

Engine MakeElectric motor / battery drive

Engine ModelElectric motor

Engine TypeElectric

AspirationElectric Charged

Gross Power255 HP

Net Power255 HP

Engine Power347 HP

Engine DisplacementN/A cc

No. of Cylinders6

Fuel TypeElectric

Rated RPM2200

Emission StandardZero emissions (Battery electric

Max Torque1298 Nm

Power Train

Transmission TypeDirect electric drive

Drive Type2WD

Clutch TypeIntegrated electric control

No. of Forward Speeds1

No. of Reverse Speeds1

Gear Box TypePower Shift

Differential TypeDifferential Type

Boom & Lifting

Crane TypeLattice Boom Crawler

Boom TypeLattice, Telescopic Sections

Boom Length80 m

No. of Boom Sections7

Boom Extension TypeTelescopic + Fly Jib optional

Max Lifting Height126 m

Max Working Radius78 m

Rated Capacity

Max Lifting Capacity137 t

Rated Load137 t

Capacity at Min Radius[email protected]

Capacity at Max Radius[email protected]

Load Moment3000 tm

Fly Jib

Fly Jib Length11.7 m

Fly Jib AvailableYes

Max Height with Fly Jib140 m

Speed

Max Travel Speed1.7 km/h

Creep Speed1 km/h

Dimensions

Overall Length15500 mm

Overall Width4200 mm

Overall Height4500 mm

WheelbaseN/A mm

Min Ground Clearance450 mm

Wheel Track FrontN/A mm

Wheel Track RearN/A mm

Liebherr LR 1130.1 unplugged EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,24,569

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹56,00,000
Interest Amount (12 %)	₹18,74,134
Total Amount Payable	₹74,74,134

Liebherr LR 1130.1 unplugged Pros and cons

Pros

Electric operation means no onsite emissions and significantly reduced noise — ideal for urban or sensitive sites.

Despite no diesel engine, lifting capacity and reach are similar to its conventional counterpart.

Can operate while plugged into mains or unplugged on battery.

Cons

Purchase price (especially new) is significantly high compared to smaller cranes; used unit examples still command ~$1 M+ USD.

Battery unplugged runtime is up to ~8 h, depending on load & operation — may require managing recharge times.

Track (crawler) drive offers stability but is slower to relocate onsite compared to wheeled mobile cranes.

Download Liebherr LR 1130.1 unplugged Brochure

Download Liebherr LR 1130.1 unplugged brochure online. Check out the Liebherr LR 1130.1 unplugged PDF brochure at Only Heavy with all features and specifications.

Liebherr LR 1130.1 unplugged Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
