Liebherr LR 1300.1 SX

Ex-Showroom Price

₹ 11.50 Cr - 15.00 Cr

Diesel

300000 kg

169 m

Download Liebherr LR 1300.1 SX Brochure

Download Liebherr LR 1300.1 SX brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Liebherr LR 1300.1 SX

Engine Power

523 HP

Operating Weight

290000 kg

Lifting Capacity

300000 kg

Lifting Height

169 m

Working Radius

143 m

Drive Type

2WD

About Liebherr LR 1300.1 SX Overview

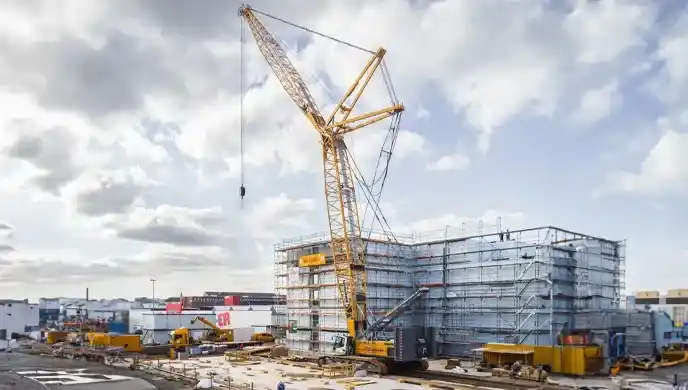

The Liebherr LR 1300.1 SX is a high-capacity lattice boom crawler crane engineered for extreme lifting performance, precision, and stability in some of the most demanding construction and industrial a...

Liebherr LR 1300.1 SX Specs & Features

Engine

Engine MakeLiebherr

Engine ModelLiebherr D 946 A7-04

Engine TypeDiesel, 4-stroke, turbocharged

AspirationTurbocharged & Intercooled

Gross Power390 HP

Net Power390 HP

Engine Power523 HP

Engine Displacement11900 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM1700

Emission StandardStage IV

Max Torque2400 Nm

Power Train

Transmission TypeHydrostatic / Mechanical hybrid

Drive Type2WD

Clutch TypeHydraulic multi-disc braking for crawler travel

No. of Forward Speeds5

No. of Reverse Speeds3

Gear Box TypeHydrostatic/hydraulic travel

Differential TypeSelf-locking track drives

Boom & Lifting

Crane TypeCrawler lattice boom crane

Boom TypeLattice main boom + optional jib

Boom Length92 m

No. of Boom Sections4

Boom Extension TypeModular lattice assembly

Max Lifting Height169 m

Max Working Radius143 m

Rated Capacity

Max Lifting Capacity300 t

Rated Load300 t

Capacity at Min Radius300t@5

Capacity at Max Radius2.5t@75

Load Moment2100 tm

Fly Jib

Fly Jib Length20 m

Fly Jib AvailableYes

Max Height with Fly Jib169 m

Speed

Max Travel Speed1.3 km/h

Creep Speed1 km/h

Dimensions

Overall Length20300 mm

Overall Width3000 mm

Overall Height3600 mm

Wheelbase3411 mm

Min Ground Clearance300 mm

Wheel Track Front1200 mm

Wheel Track Rear1200 mm

Liebherr LR 1300.1 SX EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹25,55,887

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹11,49,00,000
Interest Amount (12 %)	₹3,84,53,222
Total Amount Payable	₹15,33,53,222

Liebherr LR 1300.1 SX Pros and cons

Pros

Excellent Heavy Lift Capability: Up to 300 t maximum capacity, great for large infrastructure projects.
Long Reach: Boom plus jib combinations allow high hook heights (~169 m) and extended working radius (~143 m).
Self-Assembly System: Innovative self-loading/assembly without auxiliary cranes reduces setup time.

Cons

Very High Cost: Even used units remain expensive (hundreds of thousands to millions USD).
Massive Size & Weight: ~290 t operating weight requires special transport planning
Complex Maintenance: Advanced systems and large engine require expert service and parts.

Download Liebherr LR 1300.1 SX Brochure

Download Liebherr LR 1300.1 SX brochure online. Check out the Liebherr LR 1300.1 SX PDF brochure at Only Heavy with all features and specifications.

Liebherr LR 1300.1 SX Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
