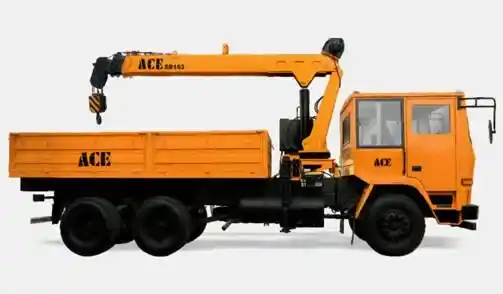

ACE SB 813

Ex-Showroom Price

₹ 65 L - 75 L

Diesel

8000 kg

10 m

Download ACE SB 813 Brochure

Download ACE SB 813 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE SB 813

Engine Power

85 HP

Operating Weight

8000 kg

Lifting Capacity

8000 kg

Lifting Height

10 m

Working Radius

7.5 m

Drive Type

2WD

About ACE SB 813 Overview

The ACE SB 813 is a robust and efficient truck-mounted boom crane designed for versatile lifting, loading, and maintenance operations across construction, infrastructure, logistics, utilities, and ind...

ACE SB 813 Specs & Features

Engine

Engine MakeTata Motors

Engine Model497 TCIC

Engine Type4-stroke, water-cooled, direct injection diesel

AspirationTurbocharged with Intercooler

Gross Power63 HP

Net Power60 HP

Engine Power85 HP

Engine Displacement3783 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2400

Emission StandardBS6

Max Torque310 Nm

Power Train

Transmission TypeManual

Drive Type2WD

Clutch TypeSingle dry plate, hydraulic assisted

No. of Forward Speeds6

No. of Reverse Speeds1

Gear Box TypeSynchromesh

Differential TypeSingle reduction hypoid

Boom & Lifting

Crane TypeTruck Mounted Straight Boom Crane

Boom TypeTelescopic

Boom Length2.8 – 8 m m

No. of Boom Sections3

Boom Extension TypeHydraulic

Max Lifting Height10 m

Max Working Radius7.5 m

Rated Capacity

Max Lifting Capacity8 t

Rated Load8 t

Capacity at Min Radius8 t @ 3 m

Capacity at Max Radius1.3 t @ 7.5 m

Load Moment8 tm

Fly Jib

Fly Jib Length2.5 m

Fly Jib AvailableYes

Max Height with Fly Jib12.5 m

Speed

Max Travel Speed80 km/h

Creep Speed2 km/h

Dimensions

Overall Length8200 mm

Overall Width2350 mm

Overall Height3000 mm

Wheelbase4200 mm

Min Ground Clearance250 mm

Wheel Track Front1850 mm

Wheel Track Rear1750 mm

ACE SB 813 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,42,364

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹64,00,000
Interest Amount (12 %)	₹21,41,868
Total Amount Payable	₹85,41,868

ACE SB 813 Pros and cons

Pros

Good medium-duty lifting class (8 Tm) suitable for lighter truck loading tasks and site utility use.
Decent vertical reach (~10.4 m) and horizontal reach (~7.5 m) for common lifting tasks.
Relatively competitive price range compared with similar loader crane models.

Cons

Engine & drivetrain not standardized — exact engine make, model, displacement (cc), and drive type depend on the truck chassis you use.
Limited public technical data — ACE’s official site lists only lifting moment, reach and basic crane specs; detailed powertrain and operating weights are generally not published.
Performance varies by chassis chosen — truck engine, transmission and drivetrain will strongly affect travel speed, gradeability, and payload.

Download ACE SB 813 Brochure

Download ACE SB 813 brochure online. Check out the ACE SB 813 PDF brochure at Only Heavy with all features and specifications.

ACE SB 813 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
