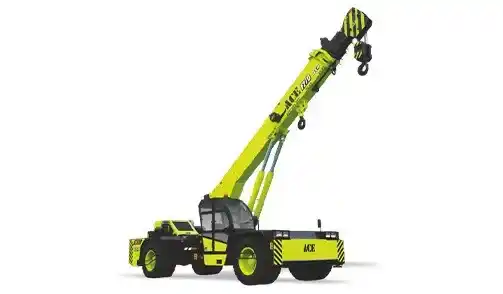

ACE F 270

Ex-Showroom Price

₹ 46 L - 49 L

Diesel

27000 kg

19 m

Download ACE F 270 Brochure

Download ACE F 270 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE F 270

Engine Power

130 HP

Operating Weight

22000 kg

Lifting Capacity

27000 kg

Lifting Height

19 m

Working Radius

18 m

Drive Type

4WD

About ACE F 270 Overview

ACE F 270 comes with an engine which generates a power of 130 hp. In addition, this engine gives a new dimension to work output to this ACE F 270.The ACE F 270 comes with an operating weight of 27 Ton...

ACE F 270 Specs & Features

Engine

Engine MakeAshok Leyland

Engine ModelH4C413022

Engine Type4-Stroke, Water-Cooled Diesel

AspirationTurbocharged with Intercooler

Gross Power97 HP

Net Power85 HP

Engine Power130 HP

Engine Displacement6800 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM2200

Emission StandardCEV Stage IV

Max Torque950 Nm

Power Train

Transmission TypeManual Synchromesh Heavy Duty

Drive Type4WD

Clutch TypeSingle Plate, Dry Type

No. of Forward Speeds12

No. of Reverse Speeds2

Gear Box TypeHeavy Duty Synchromesh

Differential TypeLimited Slip Differential

Boom & Lifting

Crane TypePick & Carry Crane

Boom Type3-Section Telescopic Boom

Boom Length9 – 19.3 m m

No. of Boom Sections3

Boom Extension TypeHydraulic Telescopic

Max Lifting Height19 m

Max Working Radius18 m

Rated Capacity

Max Lifting Capacity27 t

Rated Load27 t

Capacity at Min Radius27 tons @ 2.5 m

Capacity at Max Radius3.2 tons @ 18 m

Load Moment74 tm

Fly Jib

Fly Jib Length5 m

Fly Jib AvailableYes

Max Height with Fly Jib23 m

Speed

Max Travel Speed42 km/h

Creep Speed1.5 km/h

Dimensions

Overall Length10450 mm

Overall Width2550 mm

Overall Height3350 mm

Wheelbase3650 mm

Min Ground Clearance360 mm

Wheel Track Front2050 mm

Wheel Track Rear2050 mm

ACE F 270 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,00,100

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹45,00,000
Interest Amount (12 %)	₹15,06,001
Total Amount Payable	₹60,06,001

ACE F 270 Pros and cons

Pros

27 tonne rated capacity suitable for heavy civil, construction, and industrial jobs.

130 HP engine provides robust performance and good travel and lift power.

Four‑wheel drive improves traction and off‑road mobility on uneven surfaces.

Cons

22 tonnes curb weight may complicate transport and access on soft or uneven ground.

8.25 m turning radius means it’s not ideal for very tight spaces.

Price range (₹47–₹50 Lakh) can vary significantly by dealer, city, and optional features.

Download ACE F 270 Brochure

Download ACE F 270 brochure online. Check out the ACE F 270 PDF brochure at Only Heavy with all features and specifications.

ACE F 270 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
