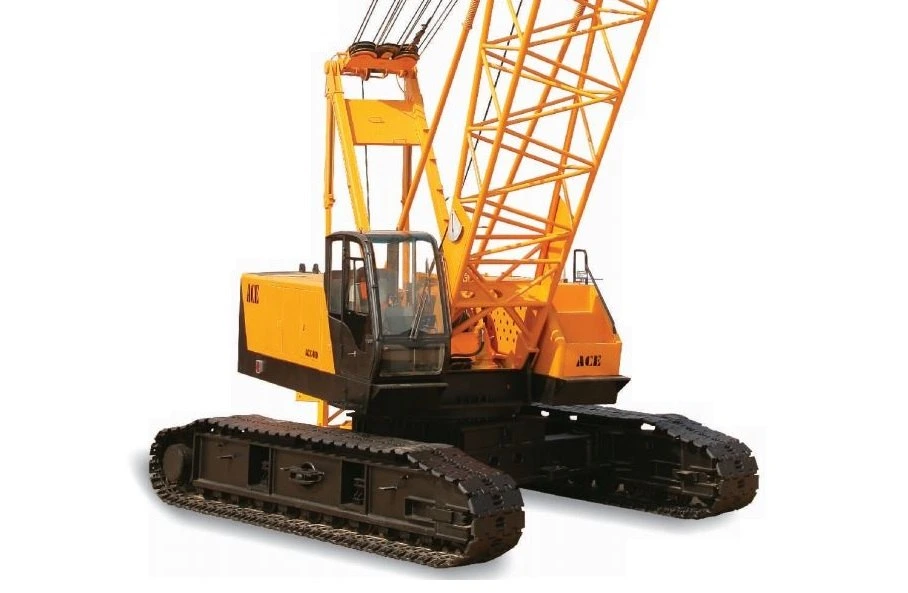

ACE ACX 400

Ex-Showroom Price

₹ 75 L - 1.00 Cr

Diesel

40000 kg

40 m

Download ACE ACX 400 Brochure

Download ACE ACX 400 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE ACX 400

Engine Power

170 HP

Operating Weight

40000 kg

Lifting Capacity

40000 kg

Lifting Height

40 m

Working Radius

21 m

Drive Type

2WD

About ACE ACX 400 Overview

ACE ACX 400 comes with an engine which generates a power of 170 HP. In addition, this engine gives a new dimension to work output to this ACE ACX 400.The ACE ACX 400 comes with an operating weight of ...

ACE ACX 400 Specs & Features

Engine

Engine MakeAshok Leyland

Engine ModelH6 4V Turbo Diesel

Engine Type4-Stroke, Water-Cooled Diesel Engine

AspirationTurbocharged with Intercooler

Gross Power125 HP

Net Power118 HP

Engine Power170 HP

Engine Displacement6000 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM2400

Emission StandardBS IV

Max Torque600 Nm

Power Train

Transmission TypeSynchromesh Manual Transmission

Drive Type2WD

Clutch TypeSingle Dry Plate, Hydraulic Assisted

No. of Forward Speeds8

No. of Reverse Speeds2

Gear Box TypeMechanical Manual Gearbox

Differential TypeHeavy Duty Limited Slip Differential

Boom & Lifting

Crane TypeHydraulic Pick & Carry Crane

Boom Type4-Section Telescopic Boom

Boom Length31 m

No. of Boom Sections4

Boom Extension TypeHydraulic Telescopic

Max Lifting Height40 m

Max Working Radius21 m

Rated Capacity

Max Lifting Capacity40 t

Rated Load40 t

Capacity at Min Radius40 tons @ 3 m

Capacity at Max Radius7 tons @ 26 m

Load Moment110 tm

Fly Jib

Fly Jib Length8 m

Fly Jib AvailableYes

Max Height with Fly Jib40 m

Speed

Max Travel Speed40 km/h

Creep Speed1.5 km/h

Dimensions

Overall Length11200 mm

Overall Width2700 mm

Overall Height3600 mm

Wheelbase4000 mm

Min Ground Clearance380 mm

Wheel Track Front2150 mm

Wheel Track Rear2100 mm

ACE ACX 400 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,64,609

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹74,00,000
Interest Amount (12 %)	₹24,76,535
Total Amount Payable	₹98,76,535

ACE ACX 400 Pros and cons

Pros

40 t rated capacity suitable for power plants, infrastructure, mining & large structures.

Boom lengths up to 40 m plus jib up to ~15.25 m allow high lifting heights & extended working radius

Tracked undercarriage offers 360° slew and movement on soft / uneven ground without outriggers.

Cons

Lack of publicly available engine CC makes direct comparison with competitors harder.

40 t machine weight significantly increases logistics & transport costs.

Crawler footprint and tracked movement require ample space — not ideal for very compact work zones.

Download ACE ACX 400 Brochure

Download ACE ACX 400 brochure online. Check out the ACE ACX 400 PDF brochure at Only Heavy with all features and specifications.

ACE ACX 400 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
