Compare Wheel Loader. Choose Smarter.
Schwing Stetter ZL55GV VS JCB 455-5N Comparison

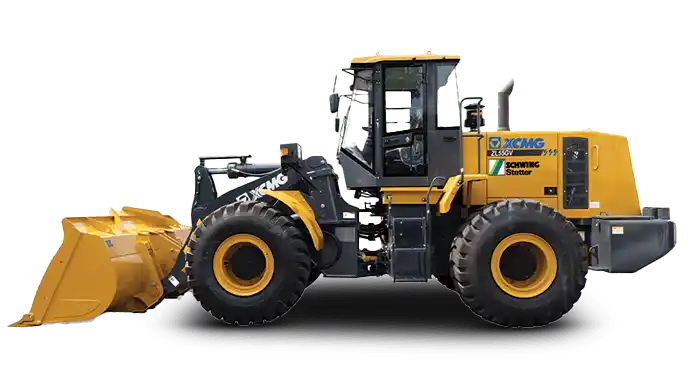

Schwing Stetter ZL55GV
N/A
VS
JCB 455-5N
N/A
Schwing Stetter ZL55GV
₹75L
JCB 455-5N
₹72L
Compare wheel loader helps you make an informed purchase decision.
Schwing Stetter ZL55GV
From ₹ 75 Lakh
JCB 455-5N
From ₹ 72 Lakh
Engine
Model
Weichai WP6G175E301
JCB EcoMAX 672
Model
Weichai WP6G175E301
JCB EcoMAX 672
Engine Make
Weichai
JCB
Engine Make
Weichai
JCB
Engine Type
4-stroke, water-cooled, inline diesel
4-stroke, water-cooled diesel
Engine Type
4-stroke, water-cooled, inline diesel
4-stroke, water-cooled diesel
Gross Power
129 HP
168 HP
Gross Power
129 HP
168 HP
Net Power
125 HP
162 HP
Net Power
125 HP
162 HP
Engine Power
230 HP
168 HP
Engine Power
230 HP
168 HP
Engine Displacement
6750 L
6700 L
Engine Displacement
6750 L
6700 L
Number Of Cylinders
6 nos
6 nos
Number Of Cylinders
6 nos
6 nos
Rated RPM
2200 rpm
2200 rpm
Rated RPM
2200 rpm
2200 rpm
Aspiration
Turbocharged
Turbocharged with intercooler
Aspiration
Turbocharged
Turbocharged with intercooler
Emission Standard
BS IV
BS IV
Emission Standard
BS IV
BS IV
Max Torque
850 Nm
950 Nm
Max Torque
850 Nm
950 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Power Train
Transmission Type
Powershift
Powershift
Transmission Type
Powershift
Powershift
Drive Type
4WD
4WD
Drive Type
4WD
4WD
Torque Converter Type
Single-stage, single-phase
Single-stage, 3-element
Torque Converter Type
Single-stage, single-phase
Single-stage, 3-element
Gear Box Type
Countershaft, automatic
Automatic powershift (4F / 3R)
Gear Box Type
Countershaft, automatic
Automatic powershift (4F / 3R)
Differential Type
Conventional
Limited slip differential
Differential Type
Conventional
Limited slip differential
Hydraulic System
System Type
Load sensing / pilot operated
Load sensing hydraulic system
System Type
Load sensing / pilot operated
Load sensing hydraulic system
Pump Type
Gear pump
Variable displacement piston pump
Pump Type
Gear pump
Variable displacement piston pump
Max Pump Flow
180 L/min
220 L/min
Max Pump Flow
180 L/min
220 L/min
System Pressure
210 bar
250 bar
System Pressure
210 bar
250 bar
Implement Maximum Flow
160 L/min
210 L/min
Implement Maximum Flow
160 L/min
210 L/min
Implement Operating Pressure
200 bar
240 bar
Implement Operating Pressure
200 bar
240 bar
Brakes & Steering
Service Brake Type
Air-over-hydraulic disc brakes
Oil-immersed multi-disc brakes
Service Brake Type
Air-over-hydraulic disc brakes
Oil-immersed multi-disc brakes
Parking Brake Type
Drum / spring applied
Spring-applied, hydraulically released
Parking Brake Type
Drum / spring applied
Spring-applied, hydraulically released
Steering Type
Articulated hydraulic steering
Articulated hydraulic steering
Steering Type
Articulated hydraulic steering
Articulated hydraulic steering
Steering Angle
38 deg
40 deg
Steering Angle
38 deg
40 deg
Axle & Final Drive
Front Axle Type
Heavy-duty rigid axle
Heavy-duty rigid axle
Front Axle Type
Heavy-duty rigid axle
Heavy-duty rigid axle
Rear Axle Type
Oscillating axle
Oscillating axle
Rear Axle Type
Oscillating axle
Oscillating axle
Oscillation Angle
12 deg
12 deg
Oscillation Angle
12 deg
12 deg
Final Drive Type
Planetary reduction
Epicyclic planetary reduction
Final Drive Type
Planetary reduction
Epicyclic planetary reduction
Speed
Top Forward Speed
38 km/h
40 km/h
Top Forward Speed
38 km/h
40 km/h
Top Reverse Speed
22 km/h
25 km/h
Top Reverse Speed
22 km/h
25 km/h
Dimensions
Overall Length
7800 mm
8200 mm
Overall Length
7800 mm
8200 mm
Overall Width
3000 mm
3000 mm
Overall Width
3000 mm
3000 mm
Overall Height
3400 mm
3450 mm
Overall Height
3400 mm
3450 mm
Height Over Cab
3400 mm
3500 mm
Height Over Cab
3400 mm
3500 mm
Height Over Exhaust
3450 mm
3500 mm
Height Over Exhaust
3450 mm
3500 mm
Wheel Base
3000 mm
3200 mm
Wheel Base
3000 mm
3200 mm
Minimum Ground Clearance
400 mm
450 mm
Minimum Ground Clearance
400 mm
450 mm
Width Over Tyres
3000 mm
3000 mm
Width Over Tyres
3000 mm
3000 mm
Wheel Tread
2200 mm
2200 mm
Wheel Tread
2200 mm
2200 mm
Turning Radius Over Tyres
6000 mm
6000 mm
Turning Radius Over Tyres
6000 mm
6000 mm
Turning Radius Over Bucket
6500 mm
6600 mm
Turning Radius Over Bucket
6500 mm
6600 mm
Tyre Size
17.5–25
20.5–25
Tyre Size
17.5–25
20.5–25
Performance
Bucket Capacity
3.5 Cu.m
3.5 Cu.m
Bucket Capacity
3.5 Cu.m
3.5 Cu.m
Bucket Width
3000 mm
3000 mm
Bucket Width
3000 mm
3000 mm
Payload
5000 kg
5500 kg
Payload
5000 kg
5500 kg
Static Tipping Load
10000 kg
13000 kg
Static Tipping Load
10000 kg
13000 kg
Tipping Load Full Turn
8500 kg
11000 kg
Tipping Load Full Turn
8500 kg
11000 kg
Max Breakout Force
160 kN
170 kN
Max Breakout Force
160 kN
170 kN
Dump Height
5500 mm
3000 mm
Dump Height
5500 mm
3000 mm
Dumping Reach
1100 mm
1200 mm
Dumping Reach
1100 mm
1200 mm
Max Dump Angle
45 deg
45 deg
Max Dump Angle
45 deg
45 deg
Bucket Rollback Angle (Ground)
40 deg
40 deg
Bucket Rollback Angle (Ground)
40 deg
40 deg
Bucket Rollback Angle (Carry)
45 deg
45 deg
Bucket Rollback Angle (Carry)
45 deg
45 deg
Bucket Rollback Angle (Full Height)
50 deg
50 deg
Bucket Rollback Angle (Full Height)
50 deg
50 deg
Max Hinge Pin Height
4000 mm
4100 mm
Max Hinge Pin Height
4000 mm
4100 mm
Max Digging Depth
50 mm
60 mm
Max Digging Depth
50 mm
60 mm
Service Refill Capacities
Bucket Capacity
3.5
3.5
Bucket Capacity
3.5
3.5
Bucket Width
3000
3000
Bucket Width
3000
3000
Cabin & Controls
ROPS & FOPS Cabin
Yes
Yes
ROPS & FOPS Cabin
Yes
Yes
AC Cabin
Yes
Yes
AC Cabin
Yes
Yes
Display Type
Digital + analog cluster
Digital display with onboard diagnostics
Display Type
Digital + analog cluster
Digital display with onboard diagnostics
Seat Type
Adjustable suspension seat
Premium suspension seat
Seat Type
Adjustable suspension seat
Premium suspension seat
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Noise Level
80 db(A)
78 db(A)
Noise Level
80 db(A)
78 db(A)
Electrical System
Battery
24V / 120 Ah V/Ah
24V / 150 Ah V/Ah
Battery
24V / 120 Ah V/Ah
24V / 150 Ah V/Ah
Alternator Output
90 A
120 A
Alternator Output
90 A
120 A
Lighting Type
LED
LED
Lighting Type
LED
LED
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
GPS & Telematics
Yes
Yes
GPS & Telematics
Yes
Yes
Remote Diagnostics
No
Yes
Remote Diagnostics
No
Yes
Warranty
2000 Hours
2000 Hours
Warranty
2000 Hours
2000 Hours
Schwing Stetter ZL55GV
Pros
- 230 HP Weichai engine with ~1000 Nm torque → good performance for material handling and loading.
- 17.3 t operating weight gives stability during heavy-load operations.
- Bucket range from 3 m³ to 5.5 m³ makes it versatile for different materials.
JCB 455-5N
Pros
- High power (225 HP) → suitable for heavy-duty operations
- Strong lifting capacity with ~5.5 ton payload
- High tipping load → better stability during loading
