Compare Wheel Loader. Choose Smarter.
L&T WL9020 CEV STAGE IV VS LiuGong 856H Comparison

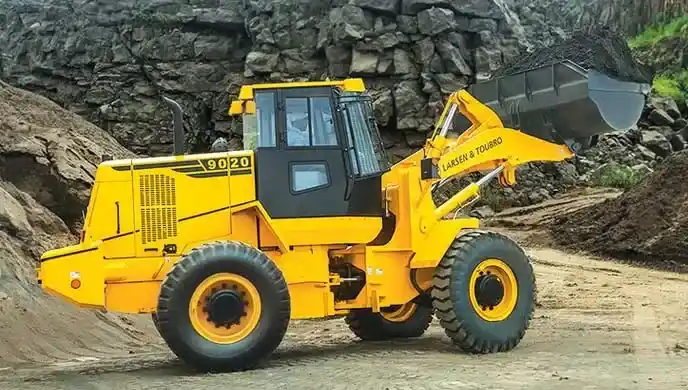

L&T WL9020 CEV STAGE IV
N/A
VS
LiuGong 856H
N/A
L&T WL9020 CEV STAGE IV
₹49L
LiuGong 856H
₹55L
Compare wheel loader helps you make an informed purchase decision.
L&T WL9020 CEV STAGE IV
From ₹ 49 Lakh
LiuGong 856H
From ₹ 55 Lakh
Engine
Model
AL‑H6C413323
6LTAA9.3
Model
AL‑H6C413323
6LTAA9.3
Engine Make
Larsen & Toubro
Cummins
Engine Make
Larsen & Toubro
Cummins
Engine Type
4‑stroke, inline 6‑cylinder, turbocharged diesel
diesel engine
Engine Type
4‑stroke, inline 6‑cylinder, turbocharged diesel
diesel engine
Gross Power
99 HP
162 HP
Gross Power
99 HP
162 HP
Net Power
95 HP
149 HP
Net Power
95 HP
149 HP
Engine Power
140 HP
202 HP
Engine Power
140 HP
202 HP
Engine Displacement
5760 L
9300 L
Engine Displacement
5760 L
9300 L
Number Of Cylinders
6 nos
6 nos
Number Of Cylinders
6 nos
6 nos
Rated RPM
2300 rpm
2200 rpm
Rated RPM
2300 rpm
2200 rpm
Aspiration
Turbocharged
Turbocharged & Intercooled
Aspiration
Turbocharged
Turbocharged & Intercooled
Emission Standard
CEV Stage IV / Bharat Stage IV
Tier 3 / Stage IIIA
Emission Standard
CEV Stage IV / Bharat Stage IV
Tier 3 / Stage IIIA
Max Torque
475 Nm
970 Nm
Max Torque
475 Nm
970 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Power Train
Transmission Type
Powershift transmission
Countershaft powershift transmission
Transmission Type
Powershift transmission
Countershaft powershift transmission
Drive Type
4WD
4WD
Drive Type
4WD
4WD
Torque Converter Type
Single‑stage torque converter
Single-stage, three-element
Torque Converter Type
Single‑stage torque converter
Single-stage, three-element
Gear Box Type
Powershift planetary gearbox
4 Forward / 3 Reverse
Gear Box Type
Powershift planetary gearbox
4 Forward / 3 Reverse
Differential Type
Limited slip differential
Limited slip differential
Differential Type
Limited slip differential
Limited slip differential
Hydraulic System
System Type
Open centre hydraulic system
Load-sensing hydraulic system
System Type
Open centre hydraulic system
Load-sensing hydraulic system
Pump Type
Tandem gear pump
Variable displacement axial piston pump
Pump Type
Tandem gear pump
Variable displacement axial piston pump
Max Pump Flow
150 L/min
260 L/min
Max Pump Flow
150 L/min
260 L/min
System Pressure
210 bar
207 bar
System Pressure
210 bar
207 bar
Implement Maximum Flow
180 L/min
260 L/min
Implement Maximum Flow
180 L/min
260 L/min
Implement Operating Pressure
210 bar
207 bar
Implement Operating Pressure
210 bar
207 bar
Brakes & Steering
Service Brake Type
Oil‑immersed multi disc
Hydraulic wet multi-disc brakes
Service Brake Type
Oil‑immersed multi disc
Hydraulic wet multi-disc brakes
Parking Brake Type
Internal expanding shoe brake
Spring-applied hydraulic release
Parking Brake Type
Internal expanding shoe brake
Spring-applied hydraulic release
Steering Type
Articulated steering, fully hydraulic
Load-sensing articulated hydraulic steering
Steering Type
Articulated steering, fully hydraulic
Load-sensing articulated hydraulic steering
Steering Angle
40 deg
38 deg
Steering Angle
40 deg
38 deg
Axle & Final Drive
Front Axle Type
Heavy‑duty drive axle with limited slip differential
Heavy-duty rigid drive axle
Front Axle Type
Heavy‑duty drive axle with limited slip differential
Heavy-duty rigid drive axle
Rear Axle Type
Oscillating axle
Oscillating drive axle
Rear Axle Type
Oscillating axle
Oscillating drive axle
Oscillation Angle
10 deg
12 deg
Oscillation Angle
10 deg
12 deg
Final Drive Type
Planetary hub reduction
Planetary reduction final drive
Final Drive Type
Planetary hub reduction
Planetary reduction final drive
Speed
Top Forward Speed
35 km/h
38 km/h
Top Forward Speed
35 km/h
38 km/h
Top Reverse Speed
22 km/h
26 km/h
Top Reverse Speed
22 km/h
26 km/h
Dimensions
Overall Length
7200 mm
8350 mm
Overall Length
7200 mm
8350 mm
Overall Width
2450 mm
3000 mm
Overall Width
2450 mm
3000 mm
Overall Height
3100 mm
3400 mm
Overall Height
3100 mm
3400 mm
Height Over Cab
3100 mm
3400 mm
Height Over Cab
3100 mm
3400 mm
Height Over Exhaust
3150 mm
3350 mm
Height Over Exhaust
3150 mm
3350 mm
Wheel Base
2950 mm
3200 mm
Wheel Base
2950 mm
3200 mm
Minimum Ground Clearance
410 mm
450 mm
Minimum Ground Clearance
410 mm
450 mm
Width Over Tyres
2450 mm
3000 mm
Width Over Tyres
2450 mm
3000 mm
Wheel Tread
1900 mm
2250 mm
Wheel Tread
1900 mm
2250 mm
Turning Radius Over Tyres
5200 mm
5900 mm
Turning Radius Over Tyres
5200 mm
5900 mm
Turning Radius Over Bucket
5800 mm
6600 mm
Turning Radius Over Bucket
5800 mm
6600 mm
Tyre Size
17.5‑25
23.5-25
Tyre Size
17.5‑25
23.5-25
Performance
Bucket Capacity
3.5 Cu.m
3 Cu.m
Bucket Capacity
3.5 Cu.m
3 Cu.m
Bucket Width
2800 mm
3000 mm
Bucket Width
2800 mm
3000 mm
Payload
3500 kg
5500 kg
Payload
3500 kg
5500 kg
Static Tipping Load
8500 kg
15000 kg
Static Tipping Load
8500 kg
15000 kg
Tipping Load Full Turn
7800 kg
10800 kg
Tipping Load Full Turn
7800 kg
10800 kg
Max Breakout Force
120 kN
170 kN
Max Breakout Force
120 kN
170 kN
Dump Height
2750 mm
3100 mm
Dump Height
2750 mm
3100 mm
Dumping Reach
1050 mm
1100 mm
Dumping Reach
1050 mm
1100 mm
Max Dump Angle
45 deg
45 deg
Max Dump Angle
45 deg
45 deg
Bucket Rollback Angle (Ground)
45 deg
43 deg
Bucket Rollback Angle (Ground)
45 deg
43 deg
Bucket Rollback Angle (Carry)
50 deg
48 deg
Bucket Rollback Angle (Carry)
50 deg
48 deg
Bucket Rollback Angle (Full Height)
55 deg
60 deg
Bucket Rollback Angle (Full Height)
55 deg
60 deg
Max Hinge Pin Height
3700 mm
4050 mm
Max Hinge Pin Height
3700 mm
4050 mm
Max Digging Depth
70 mm
70 mm
Max Digging Depth
70 mm
70 mm
Service Refill Capacities
Bucket Capacity
3.5
3
Bucket Capacity
3.5
3
Bucket Width
2800
3000
Bucket Width
2800
3000
Cabin & Controls
ROPS & FOPS Cabin
Yes
Yes
ROPS & FOPS Cabin
Yes
Yes
AC Cabin
Yes
Yes
AC Cabin
Yes
Yes
Display Type
Digital LCD monitor
LCD digital display
Display Type
Digital LCD monitor
LCD digital display
Seat Type
Adjustable suspension seat
Adjustable air suspension seat
Seat Type
Adjustable suspension seat
Adjustable air suspension seat
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Noise Level
75 db(A)
75 db(A)
Noise Level
75 db(A)
75 db(A)
Electrical System
Battery
24V / 120 Ah V/Ah
24 V / 150 Ah V/Ah
Battery
24V / 120 Ah V/Ah
24 V / 150 Ah V/Ah
Alternator Output
90 A
100 A
Alternator Output
90 A
100 A
Lighting Type
LED
LED
Lighting Type
LED
LED
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
No
Yes
Eco Mode
No
Yes
GPS & Telematics
Yes
Yes
GPS & Telematics
Yes
Yes
Remote Diagnostics
Yes
Yes
Remote Diagnostics
Yes
Yes
Warranty
2000 Hours
2000 Hours
Warranty
2000 Hours
2000 Hours
L&T WL9020 CEV STAGE IV
Pros
- High Engine Power: 140 HP gives good performance for material handling and site work.
- Good Bucket Range: 1.5 – 3.5 m³ capacity suits different materials and applications.
- Robust Weight & Build: ~11.5 t operating weight provides stability and load‑handling capacity.
LiuGong 856H
Pros
- High lifting capacity (5–5.5 ton rated load).
- Large bucket capacity improves productivity in loading trucks.
- Comfortable ROPS/FOPS cabin with good visibility.
