Compare Wheel Loader. Choose Smarter.
L&T 9020 VS Tata Hitachi ZW310-5A Comparison
L&T 9020
N/A
VS

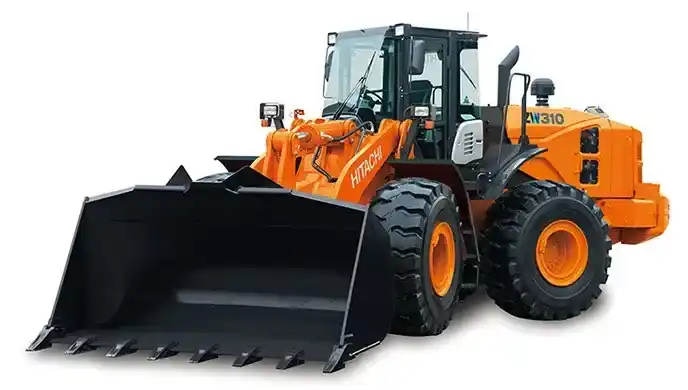

Tata Hitachi ZW310-5A
N/A
L&T 9020
₹49L
Tata Hitachi ZW310-5A
₹190L
Compare wheel loader helps you make an informed purchase decision.
L&T 9020
From ₹ 49 Lakh
Tata Hitachi ZW310-5A
From ₹ 190 Lakh
Engine
Model
L&T‑SAA4D95LE‑6
Cummins QSL9
Model
L&T‑SAA4D95LE‑6
Cummins QSL9
Engine Make
L&T Diesel
Cummins
Engine Make
L&T Diesel
Cummins
Engine Type
Inline 4‑cylinder, water‑cooled, turbocharged diesel
4-stroke, water-cooled direct injection diesel
Engine Type
Inline 4‑cylinder, water‑cooled, turbocharged diesel
4-stroke, water-cooled direct injection diesel
Gross Power
100 HP
216 HP
Gross Power
100 HP
216 HP
Net Power
95 HP
202 HP
Net Power
95 HP
202 HP
Engine Power
140 HP
316 HP
Engine Power
140 HP
316 HP
Engine Displacement
4500 L
8900 L
Engine Displacement
4500 L
8900 L
Number Of Cylinders
4 nos
6 nos
Number Of Cylinders
4 nos
6 nos
Rated RPM
2200 rpm
2000 rpm
Rated RPM
2200 rpm
2000 rpm
Aspiration
Turbocharged, After‑cooled
Turbocharged with aftercooler
Aspiration
Turbocharged, After‑cooled
Turbocharged with aftercooler
Emission Standard
BS‑IV
BS III
Emission Standard
BS‑IV
BS III
Max Torque
650 Nm
1350 Nm
Max Torque
650 Nm
1350 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Power Train
Transmission Type
Power shift transmission
Automatic Power Shift
Transmission Type
Power shift transmission
Automatic Power Shift
Drive Type
4WD
4WD
Drive Type
4WD
4WD
Torque Converter Type
Single‑stage torque converter
Lock-up torque converter
Torque Converter Type
Single‑stage torque converter
Lock-up torque converter
Gear Box Type
Powershift planetary gearbox
Planetary powershift
Gear Box Type
Powershift planetary gearbox
Planetary powershift
Differential Type
Limited slip differential
Limited slip differential
Differential Type
Limited slip differential
Limited slip differential
Hydraulic System
System Type
Open centre hydraulic system
Load sensing hydraulic system
System Type
Open centre hydraulic system
Load sensing hydraulic system
Pump Type
Gear pump
Variable displacement piston pump
Pump Type
Gear pump
Variable displacement piston pump
Max Pump Flow
150 L/min
300 L/min
Max Pump Flow
150 L/min
300 L/min
System Pressure
210 bar
310 bar
System Pressure
210 bar
310 bar
Implement Maximum Flow
140 L/min
300 L/min
Implement Maximum Flow
140 L/min
300 L/min
Implement Operating Pressure
210 bar
310 bar
Implement Operating Pressure
210 bar
310 bar
Brakes & Steering
Service Brake Type
Oil‑immersed multi‑disc brakes
Wet multi-disc hydraulic brakes
Service Brake Type
Oil‑immersed multi‑disc brakes
Wet multi-disc hydraulic brakes
Parking Brake Type
Spring‑applied hydraulic release
Spring applied, hydraulic release
Parking Brake Type
Spring‑applied hydraulic release
Spring applied, hydraulic release
Steering Type
Fully hydraulic articulated steering
Articulated hydraulic steering
Steering Type
Fully hydraulic articulated steering
Articulated hydraulic steering
Steering Angle
40 deg
40 deg
Steering Angle
40 deg
40 deg
Axle & Final Drive
Front Axle Type
Heavy‑duty drive axle
Heavy-duty planetary axle
Front Axle Type
Heavy‑duty drive axle
Heavy-duty planetary axle
Rear Axle Type
Oscillating axle
Heavy-duty planetary axle
Rear Axle Type
Oscillating axle
Heavy-duty planetary axle
Oscillation Angle
10 deg
13 deg
Oscillation Angle
10 deg
13 deg
Final Drive Type
Planetary reduction
Outboard planetary reduction
Final Drive Type
Planetary reduction
Outboard planetary reduction
Speed
Top Forward Speed
35 km/h
34 km/h
Top Forward Speed
35 km/h
34 km/h
Top Reverse Speed
22 km/h
23 km/h
Top Reverse Speed
22 km/h
23 km/h
Dimensions
Overall Length
7200 mm
9000 mm
Overall Length
7200 mm
9000 mm
Overall Width
2450 mm
3000 mm
Overall Width
2450 mm
3000 mm
Overall Height
3100 mm
3500 mm
Overall Height
3100 mm
3500 mm
Height Over Cab
3100 mm
3500 mm
Height Over Cab
3100 mm
3500 mm
Height Over Exhaust
3150 mm
3700 mm
Height Over Exhaust
3150 mm
3700 mm
Wheel Base
2950 mm
3450 mm
Wheel Base
2950 mm
3450 mm
Minimum Ground Clearance
400 mm
450 mm
Minimum Ground Clearance
400 mm
450 mm
Width Over Tyres
2450 mm
3000 mm
Width Over Tyres
2450 mm
3000 mm
Wheel Tread
1900 mm
2300 mm
Wheel Tread
1900 mm
2300 mm
Turning Radius Over Tyres
5200 mm
6600 mm
Turning Radius Over Tyres
5200 mm
6600 mm
Turning Radius Over Bucket
5800 mm
7300 mm
Turning Radius Over Bucket
5800 mm
7300 mm
Tyre Size
17.5‑25
23.5R25
Tyre Size
17.5‑25
23.5R25
Performance
Bucket Capacity
3.5 Cu.m
4.5 Cu.m
Bucket Capacity
3.5 Cu.m
4.5 Cu.m
Bucket Width
2800 mm
3200 mm
Bucket Width
2800 mm
3200 mm
Payload
3500 kg
6500 kg
Payload
3500 kg
6500 kg
Static Tipping Load
9000 kg
17000 kg
Static Tipping Load
9000 kg
17000 kg
Tipping Load Full Turn
7800 kg
14900 kg
Tipping Load Full Turn
7800 kg
14900 kg
Max Breakout Force
140 kN
210 kN
Max Breakout Force
140 kN
210 kN
Dump Height
2750 mm
3000 mm
Dump Height
2750 mm
3000 mm
Dumping Reach
1150 mm
1350 mm
Dumping Reach
1150 mm
1350 mm
Max Dump Angle
45 deg
45 deg
Max Dump Angle
45 deg
45 deg
Bucket Rollback Angle (Ground)
45 deg
40 deg
Bucket Rollback Angle (Ground)
45 deg
40 deg
Bucket Rollback Angle (Carry)
50 deg
48 deg
Bucket Rollback Angle (Carry)
50 deg
48 deg
Bucket Rollback Angle (Full Height)
55 deg
55 deg
Bucket Rollback Angle (Full Height)
55 deg
55 deg
Max Hinge Pin Height
3700 mm
4300 mm
Max Hinge Pin Height
3700 mm
4300 mm
Max Digging Depth
70 mm
120 mm
Max Digging Depth
70 mm
120 mm
Service Refill Capacities
Bucket Capacity
3.5
4.5
Bucket Capacity
3.5
4.5
Bucket Width
2800
3200
Bucket Width
2800
3200
Cabin & Controls
ROPS & FOPS Cabin
Yes
Yes
ROPS & FOPS Cabin
Yes
Yes
AC Cabin
Yes
Yes
AC Cabin
Yes
Yes
Display Type
Digital LCD monitor
Digital multifunction LCD display
Display Type
Digital LCD monitor
Digital multifunction LCD display
Seat Type
Adjustable suspension seat
Adjustable air suspension seat
Seat Type
Adjustable suspension seat
Adjustable air suspension seat
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Noise Level
75 db(A)
70 db(A)
Noise Level
75 db(A)
70 db(A)
Electrical System
Battery
24V / 120 Ah V/Ah
24V (2 × 12V, 120Ah) V/Ah
Battery
24V / 120 Ah V/Ah
24V (2 × 12V, 120Ah) V/Ah
Alternator Output
80 A
90 A
Alternator Output
80 A
90 A
Lighting Type
LED
LED
Lighting Type
LED
LED
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
No
Yes
Eco Mode
No
Yes
GPS & Telematics
Yes
Yes
GPS & Telematics
Yes
Yes
Remote Diagnostics
Yes
Yes
Remote Diagnostics
Yes
Yes
Warranty
2000 Hours
3000 Hours
Warranty
2000 Hours
3000 Hours
L&T 9020
Pros
- High engine power for its class – ~140 HP gives good performance for medium‑duty tasks
- Versatile bucket options – 1.5 to 3.5 m³ capacity adapts to varied materials.
- Solid operating weight (~11.4 t) – Offers stability and load‑handling capability.
Tata Hitachi ZW310-5A
Pros
- The 216 kW engine provides strong digging and loading performance suitable for heavy construction and quarry work.
- With 3.4–4.5 m³ buckets, the loader can handle large volumes of aggregates and materials efficiently.
- Tipping load of around 17 tons provides good stability when lifting heavy materials.
