Compare Excavators. Choose Smarter.
Volvo EC650 VS SANY SY20C Comparison
Volvo EC650
₹ 24 L - 43 L
VS

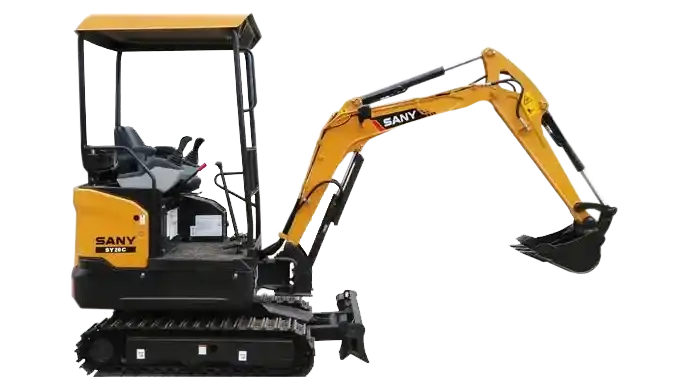

SANY SY20C
₹ 7 L - 12 L
Volvo EC650
₹24L
SANY SY20C
₹7L
Compare excavators helps you make an informed purchase decision.
Volvo EC650
From ₹ 24 Lakh
SANY SY20C
From ₹ 7 Lakh
Engine
Model
Volvo EC650
Yanmar 3TNV80F (Stage V)
Model
Volvo EC650
Yanmar 3TNV80F (Stage V)
Gross Power
284 kw
14.6 kw
Gross Power
284 kw
14.6 kw
Net Power
270 kw
14.6 kw
Net Power
270 kw
14.6 kw
Engine Power
386 HP
13.8 HP
Engine Power
386 HP
13.8 HP
Engine Displacement
11980 cc
1267 cc
Engine Displacement
11980 cc
1267 cc
Number Of Cylinders
6 Nos
3 Nos
Number Of Cylinders
6 Nos
3 Nos
Rated RPM
1900 rpm
2400 rpm
Rated RPM
1900 rpm
2400 rpm
Emission Standard
BS IV
BS V
Emission Standard
BS IV
BS V
Max Torque
1850 Nm
65 Nm
Max Torque
1850 Nm
65 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
64900 kg
1850 kg
Operating Weight
64900 kg
1850 kg
Machine Weight
61500 kg
1975 kg
Machine Weight
61500 kg
1975 kg
Counter Weight
9500 kg
510 kg
Counter Weight
9500 kg
510 kg
Ground Pressure
95 kg
32 kg
Ground Pressure
95 kg
32 kg
Hydraulic System
Main Pump Type
Variable Displacement Axial Piston
Load-sensing pump with pilot control
Main Pump Type
Variable Displacement Axial Piston
Load-sensing pump with pilot control
Maximum Hydraulic Flow
720 L/min
41 L/min
Maximum Hydraulic Flow
720 L/min
41 L/min
Maximum System Pressure
350 bar
245 bar
Maximum System Pressure
350 bar
245 bar
Hydraulic Oil Capacity
620 litres
21 litres
Hydraulic Oil Capacity
620 litres
21 litres
Auxiliary Hydraulic Flow
300 L/min
11 L/min
Auxiliary Hydraulic Flow
300 L/min
11 L/min
Working Range
Max Digging Depth
8400 mm
2360 mm
Max Digging Depth
8400 mm
2360 mm
Max Vertical Wall Digging Depth
7500 mm
2100 mm
Max Vertical Wall Digging Depth
7500 mm
2100 mm
Max Reach at Ground Level
13100 mm
4080 mm
Max Reach at Ground Level
13100 mm
4080 mm
Max Dumping Height
7200 mm
2475 mm
Max Dumping Height
7200 mm
2475 mm
Max Cutting Height
11500 mm
3530 mm
Max Cutting Height
11500 mm
3530 mm
Boom Length
7.0 m
1.770 m
Boom Length
7.0 m
1.770 m
Arm Length
3200 mm
1160 mm
Arm Length
3200 mm
1160 mm
Bucket Breakout Force
380 kN
16 kN
Bucket Breakout Force
380 kN
16 kN
Arm Tear-out Force
290 kN
9.2 kN
Arm Tear-out Force
290 kN
9.2 kN
Capacities
Fuel Tank Capacity
1100 litres
25 litres
Fuel Tank Capacity
1100 litres
25 litres
Hydraulic Tank Capacity
350 litres
21 litres
Hydraulic Tank Capacity
350 litres
21 litres
Cooling System Capacity
90 litres
3.8 litres
Cooling System Capacity
90 litres
3.8 litres
Engine Oil Capacity
42 litres
2 litres
Engine Oil Capacity
42 litres
2 litres
Swing Drive Oil Capacity
20 litres
0.33 litres
Swing Drive Oil Capacity
20 litres
0.33 litres
Final Drive Gear Oil Capacity
25 litres
0.33 litres
Final Drive Gear Oil Capacity
25 litres
0.33 litres
Under Carriage
Track Shoe Width
800 mm
230 mm
Track Shoe Width
800 mm
230 mm
Track Gauge
2300 mm
750 mm
Track Gauge
2300 mm
750 mm
Track Length on Ground
3200 mm
1220 mm
Track Length on Ground
3200 mm
1220 mm
Ground Clearance
400 mm
180 mm
Ground Clearance
400 mm
180 mm
Tail Swing Radius
3 880 mm
920 mm
Tail Swing Radius
3 880 mm
920 mm
Undercarriage Type
Crawler – Steel Tracks
Tracked crawler undercarriage
Undercarriage Type
Crawler – Steel Tracks
Tracked crawler undercarriage
Steering & Brakes
Overall Length
13280 mm
3695 mm
Overall Length
13280 mm
3695 mm
Overall Width
4150 mm
1350 mm
Overall Width
4150 mm
1350 mm
Overall Height
4650 mm
2430 mm
Overall Height
4650 mm
2430 mm
Cab Height
3800 mm
2612 mm
Cab Height
3800 mm
2612 mm
Boom Height
4.900 m
1.352 m
Boom Height
4.900 m
1.352 m
Track Width
800 mm
230 mm
Track Width
800 mm
230 mm
Performances
Travel Speed
3 km/h
4 km/h
Travel Speed
3 km/h
4 km/h
Swing Speed
8.5 rpm
10 rpm
Swing Speed
8.5 rpm
10 rpm
Gradeability
35 %
30 %
Gradeability
35 %
30 %
Drawbar Pull
520 kN
17.9 kN
Drawbar Pull
520 kN
17.9 kN
Bucket And Attachments
Bucket Capacity
3.2 Cu.m
0.05 Cu.m
Bucket Capacity
3.2 Cu.m
0.05 Cu.m
Bucket Options
3.8
0.04 - 0.05
Bucket Options
3.8
0.04 - 0.05
Attachment Compatibility
Rock bucket Quarry bucket Hydraulic breaker Ripper
Breaker, auger, thumb
Attachment Compatibility
Rock bucket Quarry bucket Hydraulic breaker Ripper
Breaker, auger, thumb
Cabin And Controls
Cabin AC
Yes
No
Cabin AC
Yes
No
Display Type
Analog gauges + basic monitor
Basic gauge cluster
Display Type
Analog gauges + basic monitor
Basic gauge cluster
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Suspension seat
Basic adjustable operator seat
Seat Type
Suspension seat
Basic adjustable operator seat
Noise Level
78 dB(A)
76 dB(A)
Noise Level
78 dB(A)
76 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
2X12 V
12 V
Battery
2X12 V
12 V
Alternator Output
120 A
75 A
Alternator Output
120 A
75 A
Lighting Type
Halogen
LED
Lighting Type
Halogen
LED
Additional Features
Auto Idle
No
Yes
Auto Idle
No
Yes
Eco Mode
No
Yes
Eco Mode
No
Yes
Telematics
No
Yes
Telematics
No
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
Volvo EC650
Pros
- Large bucket capacity (~3.2–4.4 m³) suitable for heavy earthmoving and quarry work.
- Robust undercarriage and planetary final drives typical of large Volvo excavators of the era.
- Older EC650 machines often have durable components and parts that can be sourced in secondary markets.
SANY SY20C
Pros
- Small size and lightweight (~1.8 t) make it ideal for urban sites, landscaping, utilities, and confined spaces.
- Expandable undercarriage options (on some versions) increase stability on uneven ground.
- Load-sensing hydraulic system improves responsiveness and controllability relative to basic minis.
