Compare Excavators. Choose Smarter.
SANY 245C-9LR VS JCB NXT 245HDLR Comparison

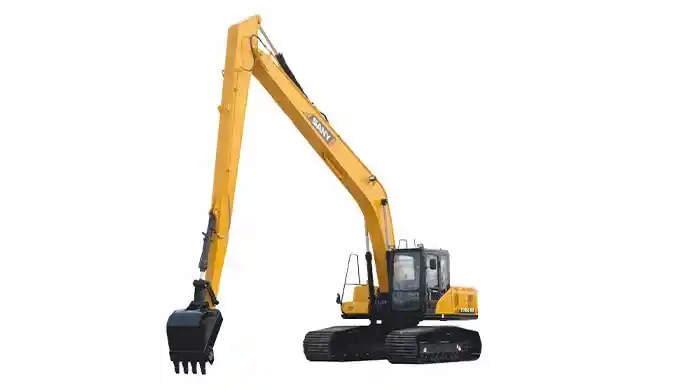

SANY 245C-9LR
₹ 70 L - 72 L
VS
JCB NXT 245HDLR
₹ 81 L - 83 L
SANY 245C-9LR
₹70L
JCB NXT 245HDLR
₹81L
Compare excavators helps you make an informed purchase decision.
SANY 245C-9LR
From ₹ 70 Lakh
JCB NXT 245HDLR
From ₹ 81 Lakh
Engine
Model
Cummins 6BT5.9-C140 (Diesel, 6-cyl, inline, water-cooled)
Cummins 6BT 5.9C
Model
Cummins 6BT5.9-C140 (Diesel, 6-cyl, inline, water-cooled)
Cummins 6BT 5.9C
Gross Power
104 kw
104 kw
Gross Power
104 kw
104 kw
Net Power
104 kw
104 kw
Net Power
104 kw
104 kw
Engine Power
140 HP
140 HP
Engine Power
140 HP
140 HP
Engine Displacement
5880 cc
5800 cc
Engine Displacement
5880 cc
5800 cc
Number Of Cylinders
6 Nos
6 Nos
Number Of Cylinders
6 Nos
6 Nos
Rated RPM
2000 rpm
2000 rpm
Rated RPM
2000 rpm
2000 rpm
Emission Standard
BS IV
BS IV
Emission Standard
BS IV
BS IV
Max Torque
571 Nm
400 Nm
Max Torque
571 Nm
400 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
24150 kg
23850 kg
Operating Weight
24150 kg
23850 kg
Machine Weight
24150 kg
23300 kg
Machine Weight
24150 kg
23300 kg
Counter Weight
4765 kg
5100 kg
Counter Weight
4765 kg
5100 kg
Ground Pressure
42.9 kg
37.3 kg
Ground Pressure
42.9 kg
37.3 kg
Hydraulic System
Main Pump Type
variable displacement axial piston pumps
variable displacement axial piston pumps
Main Pump Type
variable displacement axial piston pumps
variable displacement axial piston pumps
Maximum Hydraulic Flow
440 L/min
440 L/min
Maximum Hydraulic Flow
440 L/min
440 L/min
Maximum System Pressure
343 bar
343 bar
Maximum System Pressure
343 bar
343 bar
Hydraulic Oil Capacity
240 litres
203 litres
Hydraulic Oil Capacity
240 litres
203 litres
Auxiliary Hydraulic Flow
120 L/min
180 L/min
Auxiliary Hydraulic Flow
120 L/min
180 L/min
Working Range
Max Digging Depth
11970 mm
12040 mm
Max Digging Depth
11970 mm
12040 mm
Max Vertical Wall Digging Depth
6231 mm
11460 mm
Max Vertical Wall Digging Depth
6231 mm
11460 mm
Max Reach at Ground Level
15030 mm
15510 mm
Max Reach at Ground Level
15030 mm
15510 mm
Max Dumping Height
9275 mm
10400 mm
Max Dumping Height
9275 mm
10400 mm
Max Cutting Height
11265 mm
12690 mm
Max Cutting Height
11265 mm
12690 mm
Boom Length
8.500 m
8.700 m
Boom Length
8.500 m
8.700 m
Arm Length
6020 mm
6400 mm
Arm Length
6020 mm
6400 mm
Bucket Breakout Force
88.2 kN
65.5 kN
Bucket Breakout Force
88.2 kN
65.5 kN
Arm Tear-out Force
61.7 kN
44 kN
Arm Tear-out Force
61.7 kN
44 kN
Capacities
Fuel Tank Capacity
340 litres
343 litres
Fuel Tank Capacity
340 litres
343 litres
Hydraulic Tank Capacity
240 litres
120 litres
Hydraulic Tank Capacity
240 litres
120 litres
Cooling System Capacity
25.2 litres
25.5 litres
Cooling System Capacity
25.2 litres
25.5 litres
Engine Oil Capacity
22.75 litres
19 litres
Engine Oil Capacity
22.75 litres
19 litres
Swing Drive Oil Capacity
4 litres
8 litres
Swing Drive Oil Capacity
4 litres
8 litres
Final Drive Gear Oil Capacity
5.5 litres
12 litres
Final Drive Gear Oil Capacity
5.5 litres
12 litres
Under Carriage
Track Shoe Width
800 mm
600 mm
Track Shoe Width
800 mm
600 mm
Track Gauge
2380 mm
2390 mm
Track Gauge
2380 mm
2390 mm
Track Length on Ground
4445 mm
3660 mm
Track Length on Ground
4445 mm
3660 mm
Ground Clearance
470 mm
456 mm
Ground Clearance
470 mm
456 mm
Tail Swing Radius
2725 mm
2830 mm
Tail Swing Radius
2725 mm
2830 mm
Undercarriage Type
Crawler undercarriage with steel tracks
Heavy‑duty welded crawler undercarriage with sealed & lubricated track chains
Undercarriage Type
Crawler undercarriage with steel tracks
Heavy‑duty welded crawler undercarriage with sealed & lubricated track chains
Steering & Brakes
Overall Length
12357 mm
12600 mm
Overall Length
12357 mm
12600 mm
Overall Width
3180 mm
2900 mm
Overall Width
3180 mm
2900 mm
Overall Height
3265 mm
3050 mm
Overall Height
3265 mm
3050 mm
Cab Height
3075 mm
3060 mm
Cab Height
3075 mm
3060 mm
Boom Height
2.986 m
3.100 m
Boom Height
2.986 m
3.100 m
Track Width
800 mm
800 mm
Track Width
800 mm
800 mm
Performances
Travel Speed
5.4 km/h
3.8 km/h
Travel Speed
5.4 km/h
3.8 km/h
Swing Speed
11 rpm
12 rpm
Swing Speed
11 rpm
12 rpm
Gradeability
70 %
70 %
Gradeability
70 %
70 %
Drawbar Pull
209 kN
166 kN
Drawbar Pull
209 kN
166 kN
Bucket And Attachments
Bucket Capacity
0.45 Cu.m
0.45 Cu.m
Bucket Capacity
0.45 Cu.m
0.45 Cu.m
Bucket Options
0.3-0.45
0.45 – 0.55
Bucket Options
0.3-0.45
0.45 – 0.55
Attachment Compatibility
Standard excavator attachments
Breakers, grapples, long-reach special attachments
Attachment Compatibility
Standard excavator attachments
Breakers, grapples, long-reach special attachments
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
DOMCS intelligent controller
Colour LCD digital display with IntelliControl
Display Type
DOMCS intelligent controller
Colour LCD digital display with IntelliControl
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Adjustable suspension seat
Suspended seat
Seat Type
Adjustable suspension seat
Suspended seat
Noise Level
76 dB(A)
76 dB(A)
Noise Level
76 dB(A)
76 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
24 V
2x12 V
Battery
24 V
2x12 V
Alternator Output
50 A
75 A
Alternator Output
50 A
75 A
Lighting Type
LED
LED
Lighting Type
LED
LED
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
SANY 245C-9LR
Pros
- The long boom + arm combination gives ~15 m reach and ~12 m depth — great for dredging, riverbank jobs, slope trimming
- 140 hp Cummins engine and 220 L/min hydraulics give steady performance on extended-reach tasks without excessive lag.
- Works with breakers, augers, grapples, etc. — useful for many applications beyond just digging.
JCB NXT 245HDLR
Pros
- Fuel-efficient operation with JCB ecoHydraulics and multiple drive modes
- Low maintenance design with long hydraulic service intervals
- Good bucket and attachment tear-out forces for its class.
