Compare Excavators. Choose Smarter.
Komatsu PC71 VS Komatsu PC71 Comparison

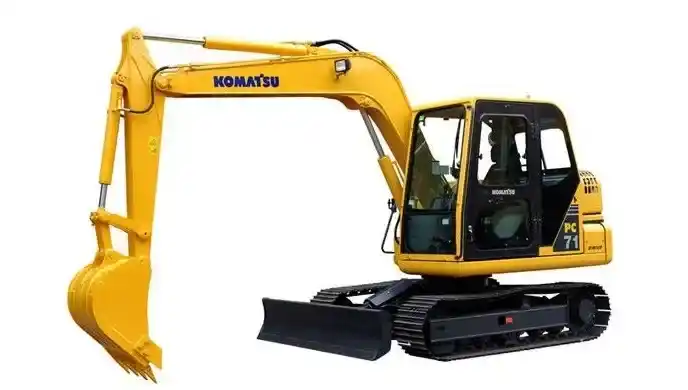

Komatsu PC71
₹ 24 L - 26 L
VS
Komatsu PC71
₹ 24 L - 26 L
Komatsu PC71
₹24L
Komatsu PC71
₹24L
Compare excavators helps you make an informed purchase decision.
Komatsu PC71
From ₹ 24 Lakh
Komatsu PC71
From ₹ 24 Lakh
Engine
Model
KOEL 4R-1040 diesel engine
KOEL 4R‑1040 (industrial diesel)
Model
KOEL 4R-1040 diesel engine
KOEL 4R‑1040 (industrial diesel)
Gross Power
44 kw
44.1 kw
Gross Power
44 kw
44.1 kw
Net Power
44 kw
44.1 kw
Net Power
44 kw
44.1 kw
Engine Power
60 HP
60 HP
Engine Power
60 HP
60 HP
Engine Displacement
4160 cc
4160 cc
Engine Displacement
4160 cc
4160 cc
Number Of Cylinders
4 Nos
4 Nos
Number Of Cylinders
4 Nos
4 Nos
Rated RPM
1900 rpm
1900 rpm
Rated RPM
1900 rpm
1900 rpm
Emission Standard
Stage II
BS IV
Emission Standard
Stage II
BS IV
Max Torque
763 Nm
880 Nm
Max Torque
763 Nm
880 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
7050 kg
7050 kg
Operating Weight
7050 kg
7050 kg
Machine Weight
7050 kg
7050 kg
Machine Weight
7050 kg
7050 kg
Counter Weight
1200 kg
1400 kg
Counter Weight
1200 kg
1400 kg
Ground Pressure
33 kg
33.2 kg
Ground Pressure
33 kg
33.2 kg
Hydraulic System
Main Pump Type
Variable-displacement piston pump
Variable‑displacement piston pump (HydrauMind system)
Main Pump Type
Variable-displacement piston pump
Variable‑displacement piston pump (HydrauMind system)
Maximum Hydraulic Flow
155 L/min
155 L/min
Maximum Hydraulic Flow
155 L/min
155 L/min
Maximum System Pressure
245 bar
245 bar
Maximum System Pressure
245 bar
245 bar
Hydraulic Oil Capacity
57 litres
57 litres
Hydraulic Oil Capacity
57 litres
57 litres
Auxiliary Hydraulic Flow
45 L/min
180 L/min
Auxiliary Hydraulic Flow
45 L/min
180 L/min
Working Range
Max Digging Depth
4100 mm
4100 mm
Max Digging Depth
4100 mm
4100 mm
Max Vertical Wall Digging Depth
3135 mm
3135 mm
Max Vertical Wall Digging Depth
3135 mm
3135 mm
Max Reach at Ground Level
6220 mm
6220 mm
Max Reach at Ground Level
6220 mm
6220 mm
Max Dumping Height
5015 mm
5015 mm
Max Dumping Height
5015 mm
5015 mm
Max Cutting Height
7150 mm
7150 mm
Max Cutting Height
7150 mm
7150 mm
Boom Length
3.7 m
3.710 m
Boom Length
3.7 m
3.710 m
Arm Length
1650 mm
1650 mm
Arm Length
1650 mm
1650 mm
Bucket Breakout Force
47 kN
47.1 kN
Bucket Breakout Force
47 kN
47.1 kN
Arm Tear-out Force
35 kN
35 kN
Arm Tear-out Force
35 kN
35 kN
Capacities
Fuel Tank Capacity
130 litres
130 litres
Fuel Tank Capacity
130 litres
130 litres
Hydraulic Tank Capacity
57 litres
57 litres
Hydraulic Tank Capacity
57 litres
57 litres
Cooling System Capacity
17 litres
17.5 litres
Cooling System Capacity
17 litres
17.5 litres
Engine Oil Capacity
9 litres
9 litres
Engine Oil Capacity
9 litres
9 litres
Swing Drive Oil Capacity
1.5 litres
1.5 litres
Swing Drive Oil Capacity
1.5 litres
1.5 litres
Final Drive Gear Oil Capacity
3 litres
6 litres
Final Drive Gear Oil Capacity
3 litres
6 litres
Under Carriage
Track Shoe Width
450 mm
450 mm
Track Shoe Width
450 mm
450 mm
Track Gauge
1700 mm
1700 mm
Track Gauge
1700 mm
1700 mm
Track Length on Ground
2130 mm
2130 mm
Track Length on Ground
2130 mm
2130 mm
Ground Clearance
350 mm
350 mm
Ground Clearance
350 mm
350 mm
Tail Swing Radius
1750 mm
1750 mm
Tail Swing Radius
1750 mm
1750 mm
Undercarriage Type
Steel crawler undercarriage with grease-adjusted tension
Tracked crawler undercarriage (grease tensioned)
Undercarriage Type
Steel crawler undercarriage with grease-adjusted tension
Tracked crawler undercarriage (grease tensioned)
Steering & Brakes
Overall Length
6080 mm
6080 mm
Overall Length
6080 mm
6080 mm
Overall Width
2225 mm
2225 mm
Overall Width
2225 mm
2225 mm
Overall Height
2590 mm
2590 mm
Overall Height
2590 mm
2590 mm
Cab Height
2590 mm
1810 mm
Cab Height
2590 mm
1810 mm
Boom Height
4.5 m
2.500 m
Boom Height
4.5 m
2.500 m
Track Width
450 mm
450 mm
Track Width
450 mm
450 mm
Performances
Travel Speed
2.3 km/h
3.5 km/h
Travel Speed
2.3 km/h
3.5 km/h
Swing Speed
12 rpm
12 rpm
Swing Speed
12 rpm
12 rpm
Gradeability
35 %
70 %
Gradeability
35 %
70 %
Drawbar Pull
54 kN
53.9 kN
Drawbar Pull
54 kN
53.9 kN
Bucket And Attachments
Bucket Capacity
0.3 Cu.m
0.3 Cu.m
Bucket Capacity
0.3 Cu.m
0.3 Cu.m
Bucket Options
0.09 - 0.35
0.35
Bucket Options
0.09 - 0.35
0.35
Attachment Compatibility
Standard hydraulic attachments supported
Standard attachments such as hydraulic thumbs, breakers (depending on auxiliary lines)
Attachment Compatibility
Standard hydraulic attachments supported
Standard attachments such as hydraulic thumbs, breakers (depending on auxiliary lines)
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
Standard operator display
Basic operator display
Display Type
Standard operator display
Basic operator display
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Suspension seat
Adjustable operator seat
Seat Type
Suspension seat
Adjustable operator seat
Noise Level
76 dB(A)
75 dB(A)
Noise Level
76 dB(A)
75 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
24 V
24 V
Battery
24 V
24 V
Alternator Output
55 A
55 A
Alternator Output
55 A
55 A
Lighting Type
LED
LED
Lighting Type
LED
LED
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
Komatsu PC71
Pros
- Compact, Efficient & Feature‑Rich
- Compact design and lighter operating weight
- Easy maintenance features
Komatsu PC71
Pros
- Fuel Efficient & Economical Operation
- Precise & Smooth Control
- Comfortable & Operator‑Friendly
