Compare Excavators. Choose Smarter.
JCB NXT 140 VS Tata Hitachi NX 80 Comparison
JCB NXT 140
₹ 45 L - 47 L
VS

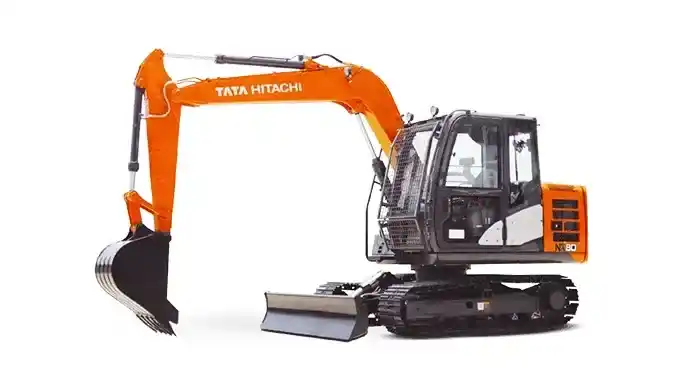

Tata Hitachi NX 80
₹ 45 L - 46 L
JCB NXT 140
₹45L
Tata Hitachi NX 80
₹45L
Compare excavators helps you make an informed purchase decision.
JCB NXT 140
From ₹ 45 Lakh
Tata Hitachi NX 80
From ₹ 45 Lakh
Engine
Model
3.9 L 4‑cylinder direct injection diesel
Cummins QSB6.7
Model
3.9 L 4‑cylinder direct injection diesel
Cummins QSB6.7
Gross Power
75 kw
114 kw
Gross Power
75 kw
114 kw
Net Power
75 kw
115 kw
Net Power
75 kw
115 kw
Engine Power
100 HP
120 HP
Engine Power
100 HP
120 HP
Engine Displacement
3900 cc
3788 cc
Engine Displacement
3900 cc
3788 cc
Number Of Cylinders
4 Nos
6 Nos
Number Of Cylinders
4 Nos
6 Nos
Rated RPM
2200 rpm
2128 rpm
Rated RPM
2200 rpm
2128 rpm
Emission Standard
BS IV
BS IV
Emission Standard
BS IV
BS IV
Max Torque
729 Nm
872 Nm
Max Torque
729 Nm
872 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
14320 kg
7500 kg
Operating Weight
14320 kg
7500 kg
Machine Weight
14320 kg
7500 kg
Machine Weight
14320 kg
7500 kg
Counter Weight
2314 kg
1300 kg
Counter Weight
2314 kg
1300 kg
Ground Pressure
51 kg
45 kg
Ground Pressure
51 kg
45 kg
Hydraulic System
Main Pump Type
2 × variable displacement axial piston type
Variable Displacement pump
Main Pump Type
2 × variable displacement axial piston type
Variable Displacement pump
Maximum Hydraulic Flow
240 L/min
330 L/min
Maximum Hydraulic Flow
240 L/min
330 L/min
Maximum System Pressure
343 bar
365 bar
Maximum System Pressure
343 bar
365 bar
Hydraulic Oil Capacity
173 litres
234 litres
Hydraulic Oil Capacity
173 litres
234 litres
Auxiliary Hydraulic Flow
121 L/min
120 L/min
Auxiliary Hydraulic Flow
121 L/min
120 L/min
Working Range
Max Digging Depth
5200 mm
4660 mm
Max Digging Depth
5200 mm
4660 mm
Max Vertical Wall Digging Depth
4520 mm
4761 mm
Max Vertical Wall Digging Depth
4520 mm
4761 mm
Max Reach at Ground Level
7884 mm
3752 mm
Max Reach at Ground Level
7884 mm
3752 mm
Max Dumping Height
6370 mm
4565 mm
Max Dumping Height
6370 mm
4565 mm
Max Cutting Height
8796 mm
4876 mm
Max Cutting Height
8796 mm
4876 mm
Boom Length
4.700 m
5.7 m
Boom Length
4.700 m
5.7 m
Arm Length
2100 mm
2990 mm
Arm Length
2100 mm
2990 mm
Bucket Breakout Force
89.74 kN
197 kN
Bucket Breakout Force
89.74 kN
197 kN
Arm Tear-out Force
73.01 kN
112 kN
Arm Tear-out Force
73.01 kN
112 kN
Capacities
Fuel Tank Capacity
253 litres
400 litres
Fuel Tank Capacity
253 litres
400 litres
Hydraulic Tank Capacity
73 litres
220 litres
Hydraulic Tank Capacity
73 litres
220 litres
Cooling System Capacity
21.2 litres
35 litres
Cooling System Capacity
21.2 litres
35 litres
Engine Oil Capacity
13.5 litres
22 litres
Engine Oil Capacity
13.5 litres
22 litres
Swing Drive Oil Capacity
6 litres
12 litres
Swing Drive Oil Capacity
6 litres
12 litres
Final Drive Gear Oil Capacity
6.2 litres
7 litres
Final Drive Gear Oil Capacity
6.2 litres
7 litres
Under Carriage
Track Shoe Width
500 mm
450 mm
Track Shoe Width
500 mm
450 mm
Track Gauge
1 990 mm
1880 mm
Track Gauge
1 990 mm
1880 mm
Track Length on Ground
2 780 mm
2 290 mm
Track Length on Ground
2 780 mm
2 290 mm
Ground Clearance
460 mm
385 mm
Ground Clearance
460 mm
385 mm
Tail Swing Radius
2150 mm
2 060 mm
Tail Swing Radius
2150 mm
2 060 mm
Undercarriage Type
Crawler – Steel Tracks
Crawler undercarriage with steel tracks, multi‑roller support (5 bottom rollers and 1 upper carrier roller per side), and grease‑adjusted track tensioning – typical for this class.
Undercarriage Type
Crawler – Steel Tracks
Crawler undercarriage with steel tracks, multi‑roller support (5 bottom rollers and 1 upper carrier roller per side), and grease‑adjusted track tensioning – typical for this class.
Steering & Brakes
Overall Length
7630 mm
9766 mm
Overall Length
7630 mm
9766 mm
Overall Width
2490 mm
2990 mm
Overall Width
2490 mm
2990 mm
Overall Height
2997 mm
3050 mm
Overall Height
2997 mm
3050 mm
Cab Height
2997 mm
3100 mm
Cab Height
2997 mm
3100 mm
Boom Height
2.997 m
3.5 m
Boom Height
2.997 m
3.5 m
Track Width
500 mm
600 mm
Track Width
500 mm
600 mm
Performances
Travel Speed
3.6 km/h
5.3 km/h
Travel Speed
3.6 km/h
5.3 km/h
Swing Speed
13.6 rpm
11 rpm
Swing Speed
13.6 rpm
11 rpm
Gradeability
70 %
70 %
Gradeability
70 %
70 %
Drawbar Pull
104 kN
140 kN
Drawbar Pull
104 kN
140 kN
Bucket And Attachments
Bucket Capacity
0.72 Cu.m
3.3 Cu.m
Bucket Capacity
0.72 Cu.m
3.3 Cu.m
Bucket Options
Standard GP
3.3 - 3.5
Bucket Options
Standard GP
3.3 - 3.5
Attachment Compatibility
Hydraulic breakers, augers, grapples
Breaker, Augger
Attachment Compatibility
Hydraulic breakers, augers, grapples
Breaker, Augger
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
IntelliControl color display (7" LCD)
7 inch LCD
Display Type
IntelliControl color display (7" LCD)
7 inch LCD
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Suspension seat with adjustable features
Suspension Seat
Seat Type
Suspension seat with adjustable features
Suspension Seat
Noise Level
72 dB(A)
75 dB(A)
Noise Level
72 dB(A)
75 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
2x12 V
12 V
Battery
2x12 V
12 V
Alternator Output
75 A
86 A
Alternator Output
75 A
86 A
Lighting Type
LED
LED
Lighting Type
LED
LED
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
JCB NXT 140
Pros
- 100 HP engine provides solid power for general digging and earthmoving tasks.
- JCB Dynamic Efficiency with 3 power modes (including Power Plus mode for higher output) improves fuel economy and performance.
- Heavy‑duty track links and reinforced boom/arm aid reliability in demanding applications.
Tata Hitachi NX 80
Pros
- Good balance of power (~49 hp) and weight (~7.5 t) for urban and utility work.
- Decent bucket capacity (~0.35 m³) and reach for landscaping, digging, desilting and utility tasks.
- Intelligent hydraulic system with auto idle/auto decel features improves fuel efficiency and reduces cost.
