Compare Excavators. Choose Smarter.
JCB NXT 140 VS CAT 316 GC Comparison
JCB NXT 140
₹ 45 L - 47 L
VS

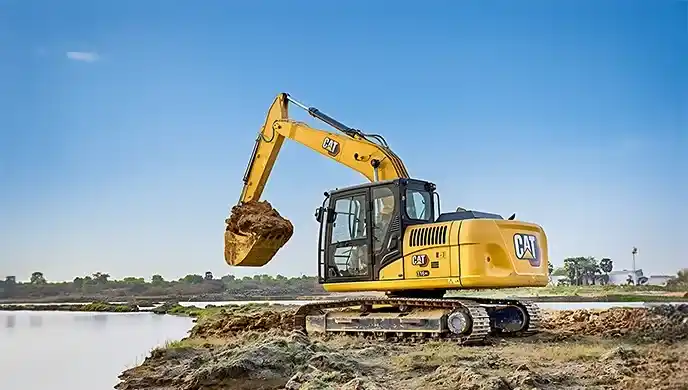

CAT 316 GC
₹ 45 L - 65 L
JCB NXT 140
₹45L
CAT 316 GC
₹45L
Compare excavators helps you make an informed purchase decision.
JCB NXT 140
From ₹ 45 Lakh
CAT 316 GC
From ₹ 45 Lakh
Engine
Model
3.9 L 4‑cylinder direct injection diesel
Cat C3.6 ACERT
Model
3.9 L 4‑cylinder direct injection diesel
Cat C3.6 ACERT
Gross Power
75 kw
68 kw
Gross Power
75 kw
68 kw
Net Power
75 kw
66 kw
Net Power
75 kw
66 kw
Engine Power
100 HP
91 HP
Engine Power
100 HP
91 HP
Engine Displacement
3900 cc
3600 cc
Engine Displacement
3900 cc
3600 cc
Number Of Cylinders
4 Nos
4 Nos
Number Of Cylinders
4 Nos
4 Nos
Rated RPM
2200 rpm
2000 rpm
Rated RPM
2200 rpm
2000 rpm
Emission Standard
BS IV
BS IV
Emission Standard
BS IV
BS IV
Max Torque
729 Nm
430 Nm
Max Torque
729 Nm
430 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
14320 kg
14400 kg
Operating Weight
14320 kg
14400 kg
Machine Weight
14320 kg
14300 kg
Machine Weight
14320 kg
14300 kg
Counter Weight
2314 kg
3500 kg
Counter Weight
2314 kg
3500 kg
Ground Pressure
51 kg
44 kg
Ground Pressure
51 kg
44 kg
Hydraulic System
Main Pump Type
2 × variable displacement axial piston type
Variable Displacement Axial Piston Pump
Main Pump Type
2 × variable displacement axial piston type
Variable Displacement Axial Piston Pump
Maximum Hydraulic Flow
240 L/min
272 L/min
Maximum Hydraulic Flow
240 L/min
272 L/min
Maximum System Pressure
343 bar
350 bar
Maximum System Pressure
343 bar
350 bar
Hydraulic Oil Capacity
173 litres
140 litres
Hydraulic Oil Capacity
173 litres
140 litres
Auxiliary Hydraulic Flow
121 L/min
210 L/min
Auxiliary Hydraulic Flow
121 L/min
210 L/min
Working Range
Max Digging Depth
5200 mm
5580 mm
Max Digging Depth
5200 mm
5580 mm
Max Vertical Wall Digging Depth
4520 mm
4860 mm
Max Vertical Wall Digging Depth
4520 mm
4860 mm
Max Reach at Ground Level
7884 mm
8180 mm
Max Reach at Ground Level
7884 mm
8180 mm
Max Dumping Height
6370 mm
6020 mm
Max Dumping Height
6370 mm
6020 mm
Max Cutting Height
8796 mm
8520 mm
Max Cutting Height
8796 mm
8520 mm
Boom Length
4.700 m
4.650 m
Boom Length
4.700 m
4.650 m
Arm Length
2100 mm
2450 mm
Arm Length
2100 mm
2450 mm
Bucket Breakout Force
89.74 kN
63 kN
Bucket Breakout Force
89.74 kN
63 kN
Arm Tear-out Force
73.01 kN
45 kN
Arm Tear-out Force
73.01 kN
45 kN
Capacities
Fuel Tank Capacity
253 litres
140 litres
Fuel Tank Capacity
253 litres
140 litres
Hydraulic Tank Capacity
73 litres
120 litres
Hydraulic Tank Capacity
73 litres
120 litres
Cooling System Capacity
21.2 litres
25 litres
Cooling System Capacity
21.2 litres
25 litres
Engine Oil Capacity
13.5 litres
14 litres
Engine Oil Capacity
13.5 litres
14 litres
Swing Drive Oil Capacity
6 litres
7 litres
Swing Drive Oil Capacity
6 litres
7 litres
Final Drive Gear Oil Capacity
6.2 litres
10 litres
Final Drive Gear Oil Capacity
6.2 litres
10 litres
Under Carriage
Track Shoe Width
500 mm
500 mm
Track Shoe Width
500 mm
500 mm
Track Gauge
1 990 mm
1990 mm
Track Gauge
1 990 mm
1990 mm
Track Length on Ground
2 780 mm
3750 mm
Track Length on Ground
2 780 mm
3750 mm
Ground Clearance
460 mm
430 mm
Ground Clearance
460 mm
430 mm
Tail Swing Radius
2150 mm
2350 mm
Tail Swing Radius
2150 mm
2350 mm
Undercarriage Type
Crawler – Steel Tracks
Crawler – Steel Tracks
Undercarriage Type
Crawler – Steel Tracks
Crawler – Steel Tracks
Steering & Brakes
Overall Length
7630 mm
7970 mm
Overall Length
7630 mm
7970 mm
Overall Width
2490 mm
2490 mm
Overall Width
2490 mm
2490 mm
Overall Height
2997 mm
2810 mm
Overall Height
2997 mm
2810 mm
Cab Height
2997 mm
2680 mm
Cab Height
2997 mm
2680 mm
Boom Height
2.997 m
3 m
Boom Height
2.997 m
3 m
Track Width
500 mm
600 mm
Track Width
500 mm
600 mm
Performances
Travel Speed
3.6 km/h
5.6 km/h
Travel Speed
3.6 km/h
5.6 km/h
Swing Speed
13.6 rpm
11 rpm
Swing Speed
13.6 rpm
11 rpm
Gradeability
70 %
58 %
Gradeability
70 %
58 %
Drawbar Pull
104 kN
120 kN
Drawbar Pull
104 kN
120 kN
Bucket And Attachments
Bucket Capacity
0.72 Cu.m
0.76 Cu.m
Bucket Capacity
0.72 Cu.m
0.76 Cu.m
Bucket Options
Standard GP
0.9-1.2
Bucket Options
Standard GP
0.9-1.2
Attachment Compatibility
Hydraulic breakers, augers, grapples
Breaker, Ripper, Auger, Tilt Rotator
Attachment Compatibility
Hydraulic breakers, augers, grapples
Breaker, Ripper, Auger, Tilt Rotator
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
IntelliControl color display (7" LCD)
LCD Monitor
Display Type
IntelliControl color display (7" LCD)
LCD Monitor
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Suspension seat with adjustable features
Air Suspension Adjustable
Seat Type
Suspension seat with adjustable features
Air Suspension Adjustable
Noise Level
72 dB(A)
72 dB(A)
Noise Level
72 dB(A)
72 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
2x12 V
2x12 V
Battery
2x12 V
2x12 V
Alternator Output
75 A
90 A
Alternator Output
75 A
90 A
Lighting Type
LED
Halogen
Lighting Type
LED
Halogen
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
JCB NXT 140
Pros
- 100 HP engine provides solid power for general digging and earthmoving tasks.
- JCB Dynamic Efficiency with 3 power modes (including Power Plus mode for higher output) improves fuel economy and performance.
- Heavy‑duty track links and reinforced boom/arm aid reliability in demanding applications.
CAT 316 GC
Pros
- Cat reliability, dealer support and global parts network — especially beneficial for ongoing uptime.
- Designed for low owning & operating costs with extended maintenance intervals versus predecessors.
- Improved swing torque and drawbar pull vs older models.
