Compare Excavators. Choose Smarter.
JCB 18Z VS Tata Hitachi Zaxis 23 U Comparison
JCB 18Z
₹ 25 L - 30 L
VS

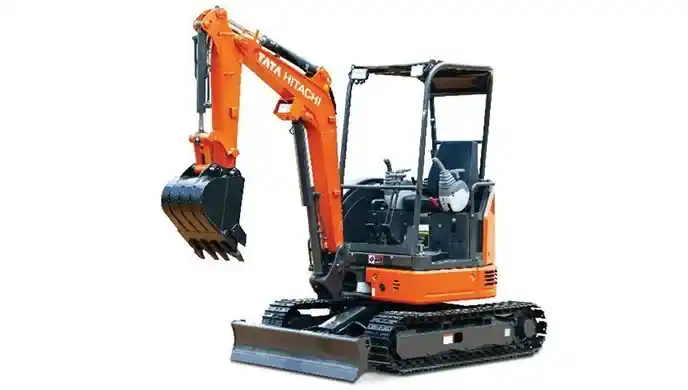

Tata Hitachi Zaxis 23 U
₹ 22 L - 23.99 L
JCB 18Z
₹25L
Tata Hitachi Zaxis 23 U
₹22L
Compare excavators helps you make an informed purchase decision.
JCB 18Z
From ₹ 25 Lakh
Tata Hitachi Zaxis 23 U
From ₹ 22 Lakh
Engine
Model
Perkins 403D‑07 (Diesel, water‑cooled)
Yanmar 3TNV76 (OEM commonly used)
Model
Perkins 403D‑07 (Diesel, water‑cooled)
Yanmar 3TNV76 (OEM commonly used)
Gross Power
11.7 kw
15.2 kw
Gross Power
11.7 kw
15.2 kw
Net Power
10.8 kw
14.5 kw
Net Power
10.8 kw
14.5 kw
Engine Power
15.68 HP
20.4 HP
Engine Power
15.68 HP
20.4 HP
Engine Displacement
762 cc
1116 cc
Engine Displacement
762 cc
1116 cc
Number Of Cylinders
3 Nos
3 Nos
Number Of Cylinders
3 Nos
3 Nos
Rated RPM
2550 rpm
2200 rpm
Rated RPM
2550 rpm
2200 rpm
Emission Standard
BS IV
BS III
Emission Standard
BS IV
BS III
Max Torque
45.6 Nm
65 Nm
Max Torque
45.6 Nm
65 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
1749 kg
2356 kg
Operating Weight
1749 kg
2356 kg
Machine Weight
1749 kg
2200 kg
Machine Weight
1749 kg
2200 kg
Counter Weight
1500 kg
180 kg
Counter Weight
1500 kg
180 kg
Ground Pressure
0.4 kg
29 kg
Ground Pressure
0.4 kg
29 kg
Hydraulic System
Main Pump Type
fixed displacement piston pump
Variable displacement axial piston pump
Main Pump Type
fixed displacement piston pump
Variable displacement axial piston pump
Maximum Hydraulic Flow
36 L/min
72 L/min
Maximum Hydraulic Flow
36 L/min
72 L/min
Maximum System Pressure
235 bar
210 bar
Maximum System Pressure
235 bar
210 bar
Hydraulic Oil Capacity
28 litres
30 litres
Hydraulic Oil Capacity
28 litres
30 litres
Auxiliary Hydraulic Flow
32 L/min
35 L/min
Auxiliary Hydraulic Flow
32 L/min
35 L/min
Working Range
Max Digging Depth
3560 mm
2330 mm
Max Digging Depth
3560 mm
2330 mm
Max Vertical Wall Digging Depth
1930 mm
2000 mm
Max Vertical Wall Digging Depth
1930 mm
2000 mm
Max Reach at Ground Level
3830 mm
4320 mm
Max Reach at Ground Level
3830 mm
4320 mm
Max Dumping Height
2598 mm
2650 mm
Max Dumping Height
2598 mm
2650 mm
Max Cutting Height
3556 mm
3580 mm
Max Cutting Height
3556 mm
3580 mm
Boom Length
1.700 m
1.900 m
Boom Length
1.700 m
1.900 m
Arm Length
800 mm
1200 mm
Arm Length
800 mm
1200 mm
Bucket Breakout Force
15.6 kN
19.5 kN
Bucket Breakout Force
15.6 kN
19.5 kN
Arm Tear-out Force
8.8 kN
13.5 kN
Arm Tear-out Force
8.8 kN
13.5 kN
Capacities
Fuel Tank Capacity
20.5 litres
30 litres
Fuel Tank Capacity
20.5 litres
30 litres
Hydraulic Tank Capacity
15 litres
30 litres
Hydraulic Tank Capacity
15 litres
30 litres
Cooling System Capacity
4.3 litres
5 litres
Cooling System Capacity
4.3 litres
5 litres
Engine Oil Capacity
2.5 litres
4.5 litres
Engine Oil Capacity
2.5 litres
4.5 litres
Swing Drive Oil Capacity
3 litres
1.2 litres
Swing Drive Oil Capacity
3 litres
1.2 litres
Final Drive Gear Oil Capacity
4 litres
1.6 litres
Final Drive Gear Oil Capacity
4 litres
1.6 litres
Under Carriage
Track Shoe Width
230 mm
250 mm
Track Shoe Width
230 mm
250 mm
Track Gauge
750 mm
1200 mm
Track Gauge
750 mm
1200 mm
Track Length on Ground
1220 mm
1500 mm
Track Length on Ground
1220 mm
1500 mm
Ground Clearance
162 mm
290 mm
Ground Clearance
162 mm
290 mm
Tail Swing Radius
1103 mm
725 mm
Tail Swing Radius
1103 mm
725 mm
Undercarriage Type
Crawler – Rubber Tracks
Tracked undercarriage with grease‑tensioned track adjustment – typical mini excavator crawler system.
Undercarriage Type
Crawler – Rubber Tracks
Tracked undercarriage with grease‑tensioned track adjustment – typical mini excavator crawler system.
Steering & Brakes
Overall Length
3547 mm
3800 mm
Overall Length
3547 mm
3800 mm
Overall Width
1006 mm
1450 mm
Overall Width
1006 mm
1450 mm
Overall Height
2340 mm
2420 mm
Overall Height
2340 mm
2420 mm
Cab Height
2100 mm
2100 mm
Cab Height
2100 mm
2100 mm
Boom Height
3.500 m
2.500 m
Boom Height
3.500 m
2.500 m
Track Width
230 mm
250 mm
Track Width
230 mm
250 mm
Performances
Travel Speed
2 km/h
4 km/h
Travel Speed
2 km/h
4 km/h
Swing Speed
7.9 rpm
9.5 rpm
Swing Speed
7.9 rpm
9.5 rpm
Gradeability
35 %
30 %
Gradeability
35 %
30 %
Drawbar Pull
120 kN
21 kN
Drawbar Pull
120 kN
21 kN
Bucket And Attachments
Bucket Capacity
0.4 Cu.m
0.07 Cu.m
Bucket Capacity
0.4 Cu.m
0.07 Cu.m
Bucket Options
0.4
0.06 – 0.08
Bucket Options
0.4
0.06 – 0.08
Attachment Compatibility
Breaker, auger, grapple (via aux. hydraulics)
Hydraulic breaker, auger, compactor
Attachment Compatibility
Breaker, auger, grapple (via aux. hydraulics)
Hydraulic breaker, auger, compactor
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
7 inch LCD
Digital LCD monitor
Display Type
7 inch LCD
Digital LCD monitor
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Basic suspension/ vinyl
Adjustable suspension seat
Seat Type
Basic suspension/ vinyl
Adjustable suspension seat
Noise Level
72 dB(A)
74 dB(A)
Noise Level
72 dB(A)
74 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
12 V
12 V
Battery
12 V
12 V
Alternator Output
60 A
40 A
Alternator Output
60 A
40 A
Lighting Type
LED
Halogen
Lighting Type
LED
Halogen
Additional Features
Auto Idle
No
Yes
Auto Idle
No
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
JCB 18Z
Pros
- Zero tail swing design lets you work in confined spaces without the rear counterweight hitting obstacles.
- Easy access service panels and 180° opening door make maintenance quicker.
- Heavy‑duty steel bodywork and ROPS/TOPS canopy protect the machine and operator.
Tata Hitachi Zaxis 23 U
Pros
- Zero Tail Swing: The rear of the machine stays within the track width, making it perfect for working next to walls or in narrow lanes.
- Versatility: Equipped with a boom swing feature, allowing you to dig offset to the machine's path (useful for digging foundations along walls).
- Ease of Transport: At roughly 2.3 tons, it can be easily transported on a standard small truck or trailer.
