Compare Excavators. Choose Smarter.
CAT 330 GC VS LiuGong 915E Comparison

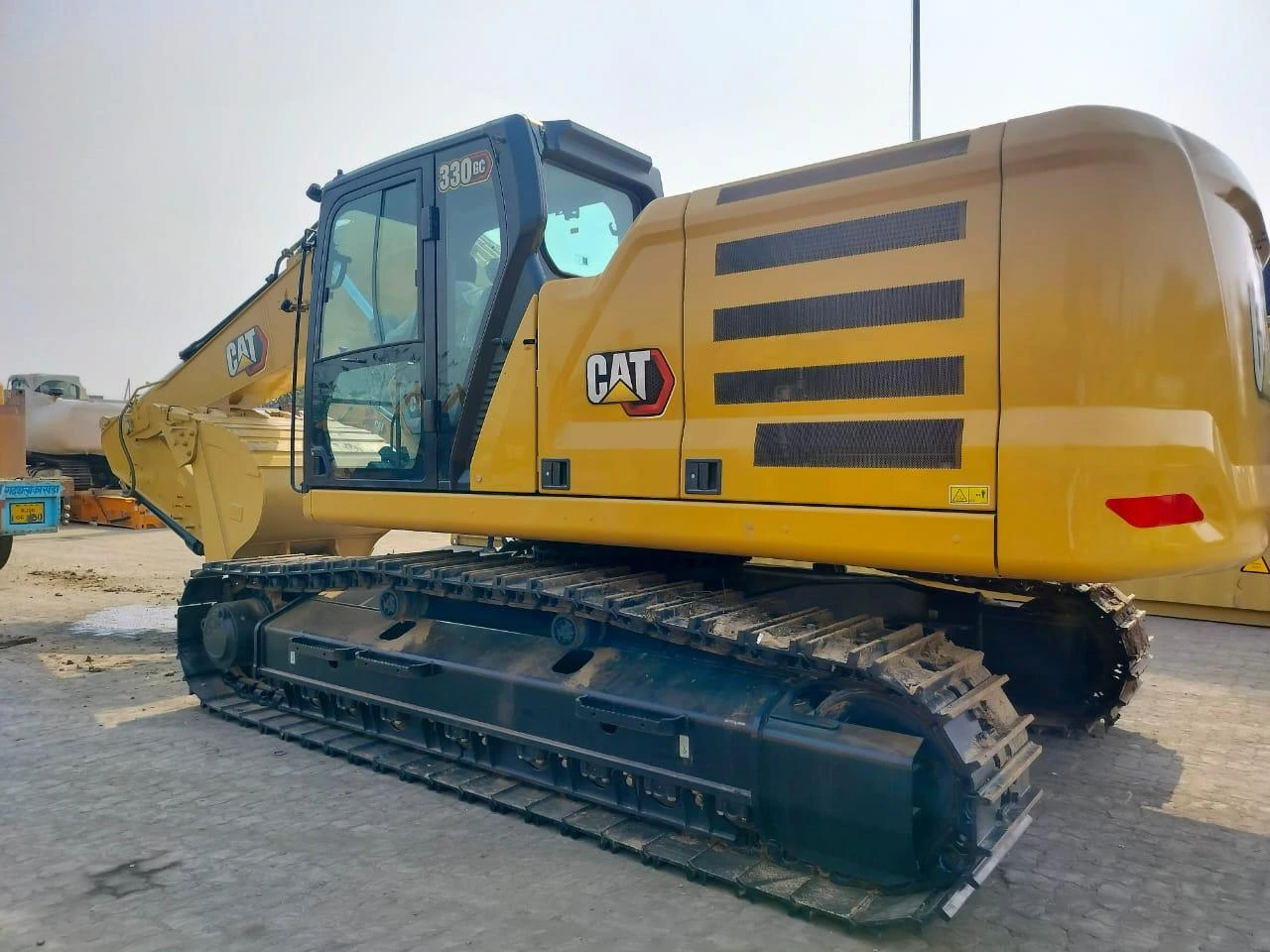

CAT 330 GC
₹ 35 L - 48 L
VS
LiuGong 915E
₹ 42 L - 44 L
CAT 330 GC
₹35L
LiuGong 915E
₹42L
Compare excavators helps you make an informed purchase decision.
CAT 330 GC
From ₹ 35 Lakh
LiuGong 915E
From ₹ 42 Lakh
Engine
Model
Cat® C7.1
Cummins QSF 3.8
Model
Cat® C7.1
Cummins QSF 3.8
Gross Power
151 kw
90 kw
Gross Power
151 kw
90 kw
Net Power
158 kw
84 kw
Net Power
158 kw
84 kw
Engine Power
213 HP
115 HP
Engine Power
213 HP
115 HP
Engine Displacement
7010 cc
3900 cc
Engine Displacement
7010 cc
3900 cc
Number Of Cylinders
6 Nos
4 Nos
Number Of Cylinders
6 Nos
4 Nos
Rated RPM
2200 rpm
2200 rpm
Rated RPM
2200 rpm
2200 rpm
Emission Standard
stage V
Tier 3
Emission Standard
stage V
Tier 3
Max Torque
800 Nm
470 Nm
Max Torque
800 Nm
470 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
28900 kg
15400 kg
Operating Weight
28900 kg
15400 kg
Machine Weight
30 900 kg
13800 kg
Machine Weight
30 900 kg
13800 kg
Counter Weight
6700 kg
2300 kg
Counter Weight
6700 kg
2300 kg
Ground Pressure
45 kg
42 kg
Ground Pressure
45 kg
42 kg
Hydraulic System
Main Pump Type
variable in axial position
Variable Displacement Axial Piston Pumps
Main Pump Type
variable in axial position
Variable Displacement Axial Piston Pumps
Maximum Hydraulic Flow
560 L/min
240 L/min
Maximum Hydraulic Flow
560 L/min
240 L/min
Maximum System Pressure
350 bar
343 bar
Maximum System Pressure
350 bar
343 bar
Hydraulic Oil Capacity
310 litres
240 litres
Hydraulic Oil Capacity
310 litres
240 litres
Auxiliary Hydraulic Flow
180 L/min
120 L/min
Auxiliary Hydraulic Flow
180 L/min
120 L/min
Working Range
Max Digging Depth
7260 mm
5470 mm
Max Digging Depth
7260 mm
5470 mm
Max Vertical Wall Digging Depth
6030 mm
4770 mm
Max Vertical Wall Digging Depth
6030 mm
4770 mm
Max Reach at Ground Level
10690 mm
8170 mm
Max Reach at Ground Level
10690 mm
8170 mm
Max Dumping Height
6940 mm
6310 mm
Max Dumping Height
6940 mm
6310 mm
Max Cutting Height
10020 mm
8760 mm
Max Cutting Height
10020 mm
8760 mm
Boom Length
6.150 m
4.6 m
Boom Length
6.150 m
4.6 m
Arm Length
3200 mm
2500 mm
Arm Length
3200 mm
2500 mm
Bucket Breakout Force
179 kN
89 kN
Bucket Breakout Force
179 kN
89 kN
Arm Tear-out Force
126 kN
64 kN
Arm Tear-out Force
126 kN
64 kN
Capacities
Fuel Tank Capacity
474 litres
245 litres
Fuel Tank Capacity
474 litres
245 litres
Hydraulic Tank Capacity
147 litres
160 litres
Hydraulic Tank Capacity
147 litres
160 litres
Cooling System Capacity
25 litres
21 litres
Cooling System Capacity
25 litres
21 litres
Engine Oil Capacity
25 litres
14 litres
Engine Oil Capacity
25 litres
14 litres
Swing Drive Oil Capacity
10 litres
3 litres
Swing Drive Oil Capacity
10 litres
3 litres
Final Drive Gear Oil Capacity
5 litres
2.5 litres
Final Drive Gear Oil Capacity
5 litres
2.5 litres
Under Carriage
Track Shoe Width
600 mm
500 mm
Track Shoe Width
600 mm
500 mm
Track Gauge
2390 mm
1990 mm
Track Gauge
2390 mm
1990 mm
Track Length on Ground
3990 mm
3746 mm
Track Length on Ground
3990 mm
3746 mm
Ground Clearance
490 mm
430 mm
Ground Clearance
490 mm
430 mm
Tail Swing Radius
3130 mm
2305 mm
Tail Swing Radius
3130 mm
2305 mm
Undercarriage Type
Tracked undercarriage with steel track shoes and grease‑tensioned adjustment – typical crawler system for medium excavators; Cat offers several undercarriage and shoe size options for jobsite needs.
Tracked crawler undercarriage
Undercarriage Type
Tracked undercarriage with steel track shoes and grease‑tensioned adjustment – typical crawler system for medium excavators; Cat offers several undercarriage and shoe size options for jobsite needs.
Tracked crawler undercarriage
Steering & Brakes
Overall Length
10 420 mm
7750 mm
Overall Length
10 420 mm
7750 mm
Overall Width
3190 mm
2490 mm
Overall Width
3190 mm
2490 mm
Overall Height
3050 mm
2900 mm
Overall Height
3050 mm
2900 mm
Cab Height
3050 mm
3055 mm
Cab Height
3050 mm
3055 mm
Boom Height
3.050 m
3.6 m
Boom Height
3.050 m
3.6 m
Track Width
800 mm
430 mm
Track Width
800 mm
430 mm
Performances
Travel Speed
5.3 km/h
5.4 km/h
Travel Speed
5.3 km/h
5.4 km/h
Swing Speed
11 rpm
12.9 rpm
Swing Speed
11 rpm
12.9 rpm
Gradeability
70 %
70 %
Gradeability
70 %
70 %
Drawbar Pull
247 kN
122 kN
Drawbar Pull
247 kN
122 kN
Bucket And Attachments
Bucket Capacity
1.6 Cu.m
0.6 Cu.m
Bucket Capacity
1.6 Cu.m
0.6 Cu.m
Bucket Options
Standard / HD / Extra HD buckets
0.6–0.73
Bucket Options
Standard / HD / Extra HD buckets
0.6–0.73
Attachment Compatibility
Hammer, Ripper, etc. (optional)
Standard hydraulic attachments
Attachment Compatibility
Hammer, Ripper, etc. (optional)
Standard hydraulic attachments
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
Touchscreen / monitor available
Multi-function LCD
Display Type
Touchscreen / monitor available
Multi-function LCD
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Adjustable suspension seat
Adjustable operator seat
Seat Type
Adjustable suspension seat
Adjustable operator seat
Noise Level
103 dB(A)
69 dB(A)
Noise Level
103 dB(A)
69 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
24 V
24 V
Battery
24 V
24 V
Alternator Output
80 A
70 A
Alternator Output
80 A
70 A
Lighting Type
LED
LED
Lighting Type
LED
LED
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
CAT 330 GC
Pros
- Lower Operating & Maintenance Costs
- Fuel Efficiency & Emissions
- Operator Comfort & Safety
LiuGong 915E
Pros
- Strong Engine & Performance
- Solid Digging Capability
- Comfortable Operator Environment
