Compare Excavators. Choose Smarter.
CASE CX 220C LC VS Tata Hitachi ZX870-5G Comparison
CASE CX 220C LC
₹ 75 L - 76 L
VS

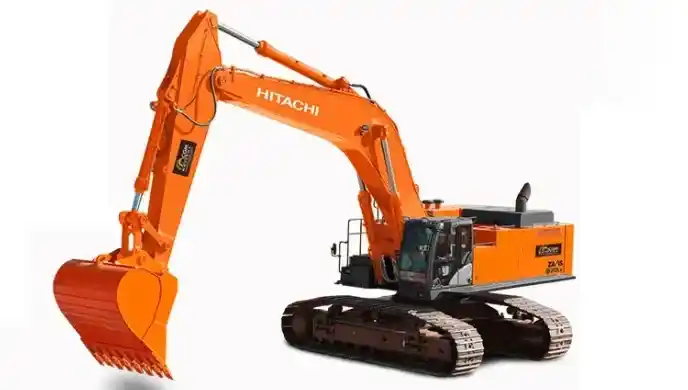

Tata Hitachi ZX870-5G
₹ 80 L - 90 L
CASE CX 220C LC
₹75L
Tata Hitachi ZX870-5G
₹80L
Compare excavators helps you make an informed purchase decision.
CASE CX 220C LC
From ₹ 75 Lakh
Tata Hitachi ZX870-5G
From ₹ 80 Lakh
Engine
Model
FPT F4HE0687A
Isuzu BB‑6WG1XQA‑04 (6‑cyl, water‑cooled, direct injection, turbo)
Model
FPT F4HE0687A
Isuzu BB‑6WG1XQA‑04 (6‑cyl, water‑cooled, direct injection, turbo)
Gross Power
117 kw
360 kw
Gross Power
117 kw
360 kw
Net Power
117 kw
360 kw
Net Power
117 kw
360 kw
Engine Power
157 HP
483 HP
Engine Power
157 HP
483 HP
Engine Displacement
6727 cc
15681 cc
Engine Displacement
6727 cc
15681 cc
Number Of Cylinders
6 Nos
6 Nos
Number Of Cylinders
6 Nos
6 Nos
Rated RPM
1800 rpm
1800 rpm
Rated RPM
1800 rpm
1800 rpm
Emission Standard
Tier 3
BS II
Emission Standard
Tier 3
BS II
Max Torque
622 Nm
1945 Nm
Max Torque
622 Nm
1945 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
22875 kg
80800 kg
Operating Weight
22875 kg
80800 kg
Machine Weight
22,220 kg
80800 kg
Machine Weight
22,220 kg
80800 kg
Counter Weight
4300 kg
43231 kg
Counter Weight
4300 kg
43231 kg
Ground Pressure
46 kg
110 kg
Ground Pressure
46 kg
110 kg
Hydraulic System
Main Pump Type
2 variable displacement axial piston pumps with regulating system
Variable‑displacement axial piston pump
Main Pump Type
2 variable displacement axial piston pumps with regulating system
Variable‑displacement axial piston pump
Maximum Hydraulic Flow
2 × 211 L/min @ 1800 L/min
1024 L/min
Maximum Hydraulic Flow
2 × 211 L/min @ 1800 L/min
1024 L/min
Maximum System Pressure
343 bar
319 bar
Maximum System Pressure
343 bar
319 bar
Hydraulic Oil Capacity
295 litres
1024 litres
Hydraulic Oil Capacity
295 litres
1024 litres
Auxiliary Hydraulic Flow
180 L/min
765 L/min
Auxiliary Hydraulic Flow
180 L/min
765 L/min
Working Range
Max Digging Depth
6650 mm
8870 mm
Max Digging Depth
6650 mm
8870 mm
Max Vertical Wall Digging Depth
6200 mm
7170 mm
Max Vertical Wall Digging Depth
6200 mm
7170 mm
Max Reach at Ground Level
9730 mm
14100 mm
Max Reach at Ground Level
9730 mm
14100 mm
Max Dumping Height
6810 mm
9080 mm
Max Dumping Height
6810 mm
9080 mm
Max Cutting Height
9610 mm
13030 mm
Max Cutting Height
9610 mm
13030 mm
Boom Length
5.700 m
8.400 m
Boom Length
5.700 m
8.400 m
Arm Length
2940 mm
3700 mm
Arm Length
2940 mm
3700 mm
Bucket Breakout Force
152 kN
339 kN
Bucket Breakout Force
152 kN
339 kN
Arm Tear-out Force
110 kN
212 kN
Arm Tear-out Force
110 kN
212 kN
Capacities
Fuel Tank Capacity
458 litres
1110 litres
Fuel Tank Capacity
458 litres
1110 litres
Hydraulic Tank Capacity
162 litres
500 litres
Hydraulic Tank Capacity
162 litres
500 litres
Cooling System Capacity
25 litres
112 litres
Cooling System Capacity
25 litres
112 litres
Engine Oil Capacity
16 litres
52 litres
Engine Oil Capacity
16 litres
52 litres
Swing Drive Oil Capacity
7 litres
15.7 litres
Swing Drive Oil Capacity
7 litres
15.7 litres
Final Drive Gear Oil Capacity
6 litres
38 litres
Final Drive Gear Oil Capacity
6 litres
38 litres
Under Carriage
Track Shoe Width
600 mm
650 mm
Track Shoe Width
600 mm
650 mm
Track Gauge
2390 mm
3450 mm
Track Gauge
2390 mm
3450 mm
Track Length on Ground
3660 mm
5 840 mm
Track Length on Ground
3660 mm
5 840 mm
Ground Clearance
440 mm
890 mm
Ground Clearance
440 mm
890 mm
Tail Swing Radius
2780 mm
4600 mm
Tail Swing Radius
2780 mm
4600 mm
Undercarriage Type
Tracked with grease-tensioned undercarriage (steel track shoes & rollers with grease tensioning)
Tracked undercarriage with double‑grouser steel shoes and hydraulic (grease) track adjusters with shock‑absorbing springs — robust mining/excavation crawler design
Undercarriage Type
Tracked with grease-tensioned undercarriage (steel track shoes & rollers with grease tensioning)
Tracked undercarriage with double‑grouser steel shoes and hydraulic (grease) track adjusters with shock‑absorbing springs — robust mining/excavation crawler design
Steering & Brakes
Overall Length
9430 mm
14000 mm
Overall Length
9430 mm
14000 mm
Overall Width
2990 mm
4100 mm
Overall Width
2990 mm
4100 mm
Overall Height
2980 mm
3780 mm
Overall Height
2980 mm
3780 mm
Cab Height
2950 mm
3780 mm
Cab Height
2950 mm
3780 mm
Boom Height
4 m
3.500 m
Boom Height
4 m
3.500 m
Track Width
600 mm
3450 mm
Track Width
600 mm
3450 mm
Performances
Travel Speed
3.4 km/h
4.5 km/h
Travel Speed
3.4 km/h
4.5 km/h
Swing Speed
11 rpm
7.4 rpm
Swing Speed
11 rpm
7.4 rpm
Gradeability
70 %
70 %
Gradeability
70 %
70 %
Drawbar Pull
205 kN
560 kN
Drawbar Pull
205 kN
560 kN
Bucket And Attachments
Bucket Capacity
1 Cu.m
4.5 Cu.m
Bucket Capacity
1 Cu.m
4.5 Cu.m
Bucket Options
GP, HD, larger options available
2.9 – 4.5
Bucket Options
GP, HD, larger options available
2.9 – 4.5
Attachment Compatibility
Hammer, crusher, quick couplers (varies by option)
Breaker, ripper, tilt coupler kits (dealer options)
Attachment Compatibility
Hammer, crusher, quick couplers (varies by option)
Breaker, ripper, tilt coupler kits (dealer options)
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
LCD monitor (real-time parameters)
Multi‑function LCD Monitor
Display Type
LCD monitor (real-time parameters)
Multi‑function LCD Monitor
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Standard with optional air‑suspension upgrade
Adjustable suspension seat
Seat Type
Standard with optional air‑suspension upgrade
Adjustable suspension seat
Noise Level
72 dB(A)
78 dB(A)
Noise Level
72 dB(A)
78 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
2 × 12 V, 110 V
2X12 V
Battery
2 × 12 V, 110 V
2X12 V
Alternator Output
70 A
50 A
Alternator Output
70 A
50 A
Lighting Type
Other
Halogen
Lighting Type
Other
Halogen
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
CASE CX 220C LC
Pros
- Powerful & Efficient Engine
- Advanced Hydraulic System
- High Digging Force & Stability
Tata Hitachi ZX870-5G
Pros
- Uses Isuzu BB‑6WG1XQA‑04 6‑cyl turbocharged engine producing ~483 HP / 360 kW @ 1,800 rpm, which gives strong performance in heavy digging cycles.
- Dual high‑capacity main pumps (~1,024 L/min total) provide robust flow for demanding implement actions and attachments.
- Multiple boom/arm combinations expand working range from trenching to deep/exceeding reach applications.
