Compare Cranes. Choose Smarter.
SANY SCC600A-6 VS SANY SCC1300TB Comparison

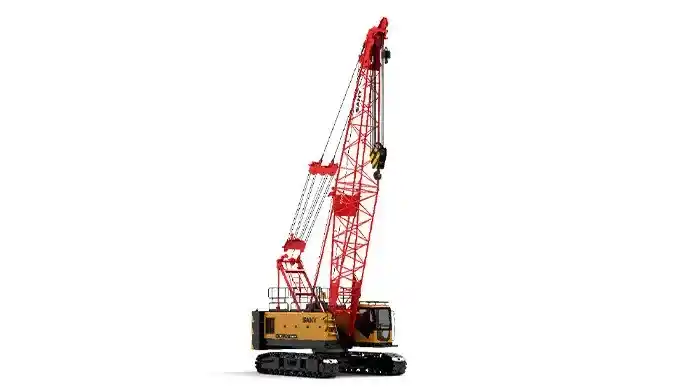

SANY SCC600A-6
₹ ₹ 1.04 Cr - 1.08 CrL*
VS
SANY SCC1300TB
₹ 1.80 Cr - 4.00 Cr
SANY SCC600A-6
₹104L
SANY SCC1300TB
₹180L
Compare cranes to make an informed purchase decision.
SANY SCC600A-6
From ₹ 104 Lakh
SANY SCC1300TB
From ₹ 180 Lakh
Engine
Engine Make
Cummins
ISUZU
Engine Make
Cummins
ISUZU
Engine Model
QSB5.9-C210
6HK1‑XDHAG
Engine Model
QSB5.9-C210
6HK1‑XDHAG
Engine Displacement
5900 cc
7790 cc
Engine Displacement
5900 cc
7790 cc
Engine Power
188 HP
284 HP
Engine Power
188 HP
284 HP
Maximum Torque
820 Nm
1050 Nm
Maximum Torque
820 Nm
1050 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Overall Dimension & Weight
Overall Length
12900 mm
12500 mm
Overall Length
12900 mm
12500 mm
Overall Width
3200 mm
3200 mm
Overall Width
3200 mm
3200 mm
Overall Height
3000 mm
3800 mm
Overall Height
3000 mm
3800 mm
Wheel Base
NA mm
N/A mm
Wheel Base
NA mm
N/A mm
Min Ground Clearance
450 mm
350 mm
Min Ground Clearance
450 mm
350 mm
Operating Weight
48000 kg
123000 kg
Operating Weight
48000 kg
123000 kg
Boom & Lifting
Crane Type
Lattice Boom Crawler Crane
Crawler Telescopic Boom Crane
Crane Type
Lattice Boom Crawler Crane
Crawler Telescopic Boom Crane
Boom Type
High Strength Steel Lattice Boom
Telescopic boom
Boom Type
High Strength Steel Lattice Boom
Telescopic boom
Boom Length
52 m
10 - 60 m
Boom Length
52 m
10 - 60 m
Max Lifting Height
50 m
60 m
Max Lifting Height
50 m
60 m
Max Working Radius
36 m
60 m
Max Working Radius
36 m
60 m
Rated Capacity
Max Lifting Capacity
60 t
130 t
Max Lifting Capacity
60 t
130 t
Rated Load
60 t
130 t
Rated Load
60 t
130 t
Capacity at Min Radius
130t@4
Capacity at Max Radius
6t@36
6t@60
Capacity at Max Radius
6t@36
6t@60
Hydraulic System
Pump Type
Variable Displacement Piston Pump
Variable displacement axial piston
Pump Type
Variable Displacement Piston Pump
Variable displacement axial piston
Main Pump Capacity
224 Lpm
200 Lpm
Main Pump Capacity
224 Lpm
200 Lpm
Max Hydraulic Flow
440 Lpm
350 Lpm
Max Hydraulic Flow
440 Lpm
350 Lpm
System Pressure
320 bar
300 bar
System Pressure
320 bar
300 bar
Service Capacities
Engine Oil
22 L
35 L
Engine Oil
22 L
35 L
Rear Axle Oil
Not Applicable L
N/A L
Rear Axle Oil
Not Applicable L
N/A L
Transmission Oil
30 L
22 L
Transmission Oil
30 L
22 L
Hydraulic System
620 L
1000 L
Hydraulic System
620 L
1000 L
Fuel Tank
400 L
350 L
Fuel Tank
400 L
350 L
Cooling System
45 L
55 L
Cooling System
45 L
55 L
Steering & Brakes
Steering Type
Hydraulic Differential Steering (Track Steering)
Hydraulic crawler steering
Steering Type
Hydraulic Differential Steering (Track Steering)
Hydraulic crawler steering
Turning Radius
0 m (Pivot Steering on Tracks) m
8 m
Turning Radius
0 m (Pivot Steering on Tracks) m
8 m
Service Brake Type
Hydraulic Static Brake
Multi‑disc wet brake
Service Brake Type
Hydraulic Static Brake
Multi‑disc wet brake
Parking Brake Type
Spring Applied, Hydraulic Released
Spring applied, hydraulic released
Parking Brake Type
Spring Applied, Hydraulic Released
Spring applied, hydraulic released
Tyres
Tyre Size
Not Applicable (Steel Tracks)
N/A (crawler tracks)
Tyre Size
Not Applicable (Steel Tracks)
N/A (crawler tracks)
No. of Tyres
0
N/A
No. of Tyres
0
N/A
Electrical & General
Battery
24V/180
24 V / 2 × 100 Ah
Battery
24V/180
24 V / 2 × 100 Ah
Alternator Output
70 A
80 A
Alternator Output
70 A
80 A
Max Travel Speed
1.3 km/h
1.8 km/h
Max Travel Speed
1.3 km/h
1.8 km/h
SANY SCC600A-6
Pros
- High lifting capacity: 60 tons at short radius — strong for mid-scale construction & infrastructure jobs.
- Long boom reach: up to ~52 m main boom allows working at height without jib.
- Crawler mobility: Excellent stability and ground contact — ideal for uneven terrain.
SANY SCC1300TB
Pros
- 130‑Tonne Class Telescopic Boom Crawler Crane: Combines crawler mobility with telescopic performance counters traditional lattice crawlers.
- Long Reach: 60 m full boom + up to ~18 m fixed jib for extra reach.
- Compact Transport: Relatively compact dimensions for a 130 t crawler crane make on‑site transport easier.
