Compare Cranes. Choose Smarter.
Liebherr LR 1500 VS SANY SRC1100T Comparison

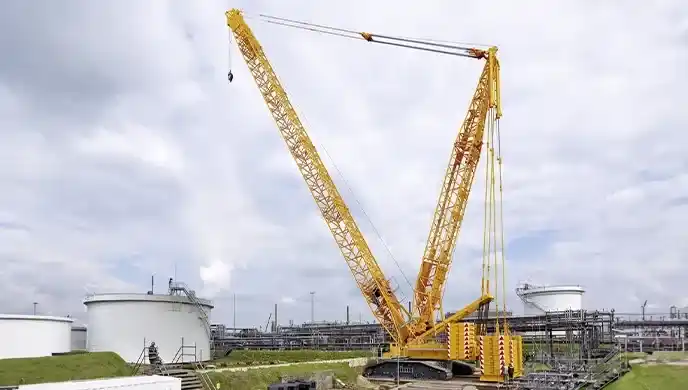

Liebherr LR 1500
₹ ₹ 2.77 Cr - 2.81 CrL*
VS
SANY SRC1100T
₹ 4.79 Cr - 5.00 Cr
Liebherr LR 1500
₹277L
SANY SRC1100T
₹479L
Compare cranes to make an informed purchase decision.
Liebherr LR 1500
From ₹ 277 Lakh
SANY SRC1100T
From ₹ 479 Lakh
Engine
Engine Make
Liebherr
Cummins
Engine Make
Liebherr
Cummins
Engine Model
Liebherr D 936 A7
QSB6.7
Engine Model
Liebherr D 936 A7
QSB6.7
Engine Displacement
12000 cc
6700 cc
Engine Displacement
12000 cc
6700 cc
Engine Power
476 HP
260 HP
Engine Power
476 HP
260 HP
Maximum Torque
2200 Nm
990 Nm
Maximum Torque
2200 Nm
990 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Overall Dimension & Weight
Overall Length
24000 mm
14200 mm
Overall Length
24000 mm
14200 mm
Overall Width
3500 mm
3300 mm
Overall Width
3500 mm
3300 mm
Overall Height
3400 mm
3850 mm
Overall Height
3400 mm
3850 mm
Wheel Base
N/A mm
4200 mm
Wheel Base
N/A mm
4200 mm
Min Ground Clearance
500 mm
450 mm
Min Ground Clearance
500 mm
450 mm
Operating Weight
500000 kg
110000 kg
Operating Weight
500000 kg
110000 kg
Boom & Lifting
Crane Type
Lattice Boom Crawler Crane
Rough Terrain Crane
Crane Type
Lattice Boom Crawler Crane
Rough Terrain Crane
Boom Type
Modular lattice boom
Telescopic
Boom Type
Modular lattice boom
Telescopic
Boom Length
84 m
12 - 47 m
Boom Length
84 m
12 - 47 m
Max Lifting Height
164 m
74 m
Max Lifting Height
164 m
74 m
Max Working Radius
144 m
63 m
Max Working Radius
144 m
63 m
Rated Capacity
Max Lifting Capacity
500 t
110 t
Max Lifting Capacity
500 t
110 t
Rated Load
500 t
110 t
Rated Load
500 t
110 t
Capacity at Min Radius
500T@7
110 t @ 3 m
Capacity at Min Radius
500T@7
110 t @ 3 m
Capacity at Max Radius
20T@144
3.5 t @ 42 m
Capacity at Max Radius
20T@144
3.5 t @ 42 m
Hydraulic System
Pump Type
Axial piston variable pump
Variable Displacement Piston Pump
Pump Type
Axial piston variable pump
Variable Displacement Piston Pump
Main Pump Capacity
560 Lpm
220 Lpm
Main Pump Capacity
560 Lpm
220 Lpm
Max Hydraulic Flow
900 Lpm
400 Lpm
Max Hydraulic Flow
900 Lpm
400 Lpm
System Pressure
350 bar
330 bar
System Pressure
350 bar
330 bar
Service Capacities
Engine Oil
45 L
24 L
Engine Oil
45 L
24 L
Rear Axle Oil
N/A L
25 L
Rear Axle Oil
N/A L
25 L
Transmission Oil
N/A L
40 L
Transmission Oil
N/A L
40 L
Hydraulic System
1800 L
1050 L
Hydraulic System
1800 L
1050 L
Fuel Tank
850 L
300 L
Fuel Tank
850 L
300 L
Cooling System
85 L
35 L
Cooling System
85 L
35 L
Steering & Brakes
Steering Type
Independent crawler track control
Hydraulic Power Steering
Steering Type
Independent crawler track control
Hydraulic Power Steering
Turning Radius
0 m
8.5 m
Turning Radius
0 m
8.5 m
Service Brake Type
Hydrostatic braking system
Hydraulic Disc Brakes
Service Brake Type
Hydrostatic braking system
Hydraulic Disc Brakes
Parking Brake Type
Spring-applied multi-disc brake
Spring-Applied, Hydraulic Release
Parking Brake Type
Spring-applied multi-disc brake
Spring-Applied, Hydraulic Release
Tyres
Tyre Size
N/A (steel crawler tracks)
29.5R25
Tyre Size
N/A (steel crawler tracks)
29.5R25
No. of Tyres
0
4
No. of Tyres
0
4
Electrical & General
Battery
24/170
24V / 200Ah
Battery
24/170
24V / 200Ah
Alternator Output
120 A
70 A
Alternator Output
120 A
70 A
Max Travel Speed
1.5 km/h
35 km/h
Max Travel Speed
1.5 km/h
35 km/h
Liebherr LR 1500
Pros
- Delivers full 500 ton (500,000 kg) capacity across most of its operating range.
- Excellent maximum lifting height (~164 m) and working radius (~144 m) for heavy civil and industrial projects.
- Compact footprint for a 500 t-class crawler crane reduces logistics complexity.
SANY SRC1100T
Pros
- Handles heavy industrial, power plant, plant erection and large infrastructure lifting tasks.
- Up to ~74.5 m total reach with jib, supporting tall structural work
- Designed for off‑road and harsh environments with strong frame and high gradeability (~75 %).
