CAT 960F

Ex-Showroom Price

₹ 19 L - 21 L

Diesel

18300 kg

N/A

Download CAT 960F Brochure

Download CAT 960F brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of CAT 960F

Engine Power

209 HP

Operating Weight

18300 kg

Bucket capacity

3.5 Cu.m

Tipping Load

13700 kg

Dump Height

3.2 mm

Top Speed

34 km/h

About CAT 960F Overview

CAT 960F is a highly popular Wheeled Loader in India. It is available at a price of ₹ 19 Lakh. The engine of this wheeled loader delivers a power of 209 Hp. In addition the operating weight of this co...

CAT 960F Specifications & Features

Engine

Engine ModelCaterpillar 3116 DITA

Engine MakeCaterpillar Inc

Engine Type4-stroke turbocharged diesel

Engine Power209 HP

Gross Power (ISO 14396)156 kW

Net Power (ISO 9249)149 kW

Displacement10500 L

Number of Cylinders6 Nos

AspirationTurbocharged & Aftercooled

Rated RPM2200 rpm

Emission StandardPre-Tier

Max Torque950 Nm

Fuel TypeDiesel

Power Train

Transmission TypePowershift

Drive Type4WD

Torque Converter TypeSingle-stage torque converter

Gearbox TypeCountershaft powershift

Differential TypeLimited-slip differential

Brakes & Steering

Service Brake TypeHydraulic wet disc

Parking Brake TypeSpring-applied hydraulic release

Steering TypeArticulated hydraulic steering

Steering Angle40 deg

Axle And Final Drive

Front Axle TypeFixed heavy-duty axle

Rear Axle TypeOscillating axle

Oscillation Angle13 deg

Final Drive TypePlanetary reduction

CAT 960F EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹40,040

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹18,00,000
Interest Amount (12 %)	₹6,02,400
Total Amount Payable	₹24,02,400

CAT 960F Pros and cons

Pros

Around 200 HP engine, suitable for quarry, mining, and construction loading work.

3.5 m³ bucket allows loading trucks quickly and moving bulk materials efficiently.

Can lift up to ~10 tons, useful for heavy materials like gravel, sand, and ore.

Cons

Built in 1995–1998, so it lacks modern electronics, GPS, and efficiency systems.

Compared to newer loaders with electronic engines.

18+ tons weight means higher transportation and operating costs

Download CAT 960F Brochure PDF

Download CAT 960F brochure online. Check out the CAT 960F PDF brochure at Only Heavy with all features and specifications.

CAT 960F Uses

Excavation

Digging

Construction

Material handling

Trenching

CAT 960F Loan Offers

Explore CAT 960F Alternatives

New

JCB 455-4

₹ 90 L - 1.10 Cr

Engine: 6700 CC

View Details

New

CAT Hindustan 2021Z

₹ 28 L - 35 L

Engine: 4130 CC

View Details

New

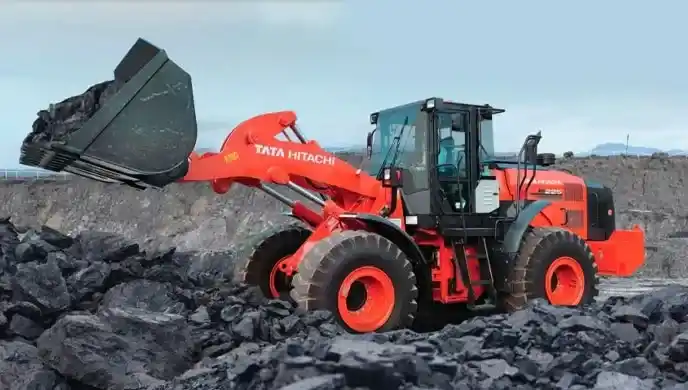

Tata Hitachi ZW 225

₹ 1.16 Cr - 1.18 Cr

Engine: 6700 CC

View Details

New

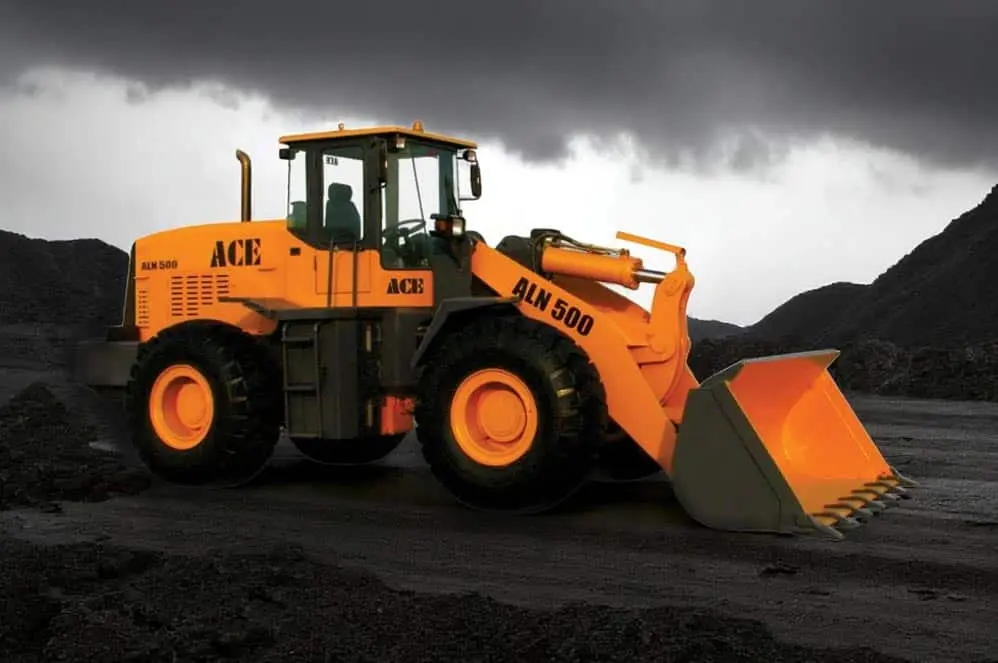

ACE ALN 500

₹ 1.05 Cr - 1.15 Cr

Engine: 8300 CC

View Details

New

DMO DM 953

₹ 22 L - 25 L

Engine: 10000 CC

View Details

New

HYUNDAI HL 930I

₹ 47 L - 50 L

Engine: 4500 CC

View Details

New

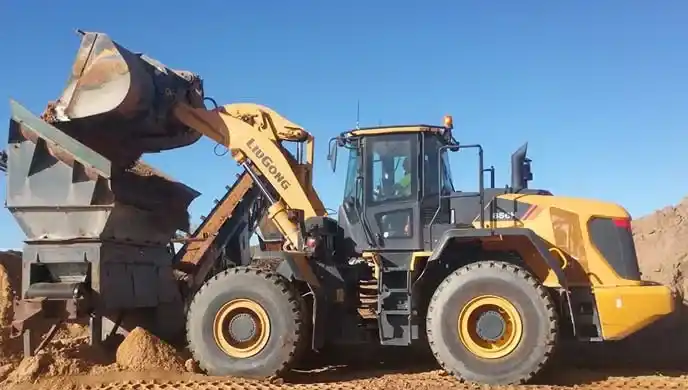

LiuGong 856H
