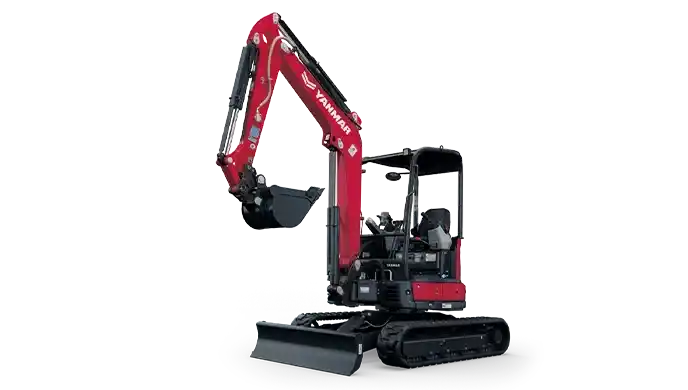

Yanmar VIO35-6B

Ex-Showroom Price

₹ 31 L - 33 L

Diesel

3825 kg

3250 mm

Download Yanmar VIO35-6B Brochure

Download Yanmar VIO35-6B brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Yanmar VIO35-6B

Engine Power

27.3 HP

Operating Weight

3825 kg

Bucket capacity

0.11 Cu.m

Hydraulic system

81 L/min

Maximum Digging Depth

3250 mm

Boom Height

5.27 m

About Yanmar VIO35-6B Overview

Yanmar VIO35-6B is a popular excavator in the construction vehicle industry. The price of this excavator starts from ₹ 31 Lakh and it goes up to ₹ 33 Lakh. Moreover The max digging depth of this excav...

Yanmar VIO35-6B Specifications & Features

Engine

Engine ModelYanmar 3TNV88-ZSBV

Gross Power20.4 kW

Net Power19.2 kW

Engine Power27.3 HP

Displacement1647 cc

Number of Cylinders3 Nos

Rated RPM2200 rpm

Emission StandardBS V

Max Torque100 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight3825 kg

Machine Weight3500 kg

Counterweight750 kg

Ground Pressure33 kPa

Hydraulic System

Main Pump Typevariable displacement piston pumps + gear pump

Maximum Hydraulic Flow110 L/min

Maximum System Pressure230 bar

Hydraulic Oil Capacity55 litres

Auxiliary Hydraulic Flow64 L/min

Working Range

Maximum Digging Depth3250 mm

Maximum Vertical Wall Digging Depth2700 mm

Maximum Reach at Ground Level5270 mm

Maximum Dumping Height3200 mm

Maximum Cutting Height5400 mm

Boom Length2.200 m

Arm Length1650 mm

Bucket Breakout Force32 kN

Arm Tear-out Force20 kN

Yanmar VIO35-6B EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹66,733

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹30,00,000
Interest Amount (12 %)	₹10,04,001
Total Amount Payable	₹40,04,001

Yanmar VIO35-6B Pros and cons

Pros

Compact Zero Tail Swing Design – Allows working in confined urban and landscaping jobsites without rear overhang.

Efficient Hydraulic Flow for Attachments – ~60+ L/min auxiliary flow supports breakers, augers, grapples.

Balanced Power and Weight – ~3.5 t operating weight with ~27.3 hp engine gives good energy efficiency and fuel economy.

Cons

Limited Engine Power – ~27 hp class retains strong serviceability but less power compared to larger 4–5 t excavators (slower cycle times on heavy digs).

Small Bucket Size (~0.11 m³) – Less material moved per cycle vs heavier machines.

Hydraulic Flow Segmented Across Pumps – With multiple smaller pumps, total flow to high-demand implements may feel lower than single large pump designs.

Download Yanmar VIO35-6B Brochure PDF

Download Yanmar VIO35-6B brochure online. Check out the Yanmar VIO35-6B PDF brochure at Only Heavy with all features and specifications.

Yanmar VIO35-6B Uses

Excavation

Digging

Construction

Material handling

Trenching
