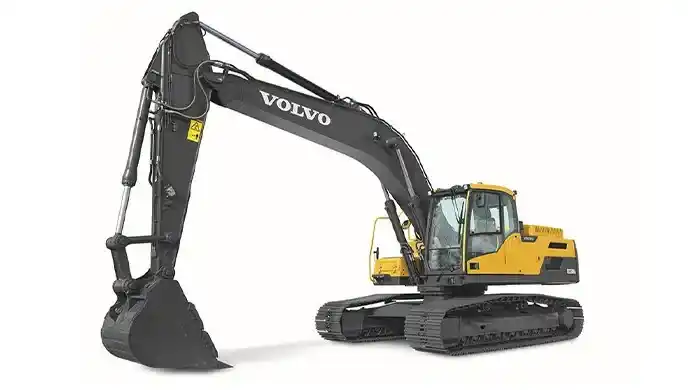

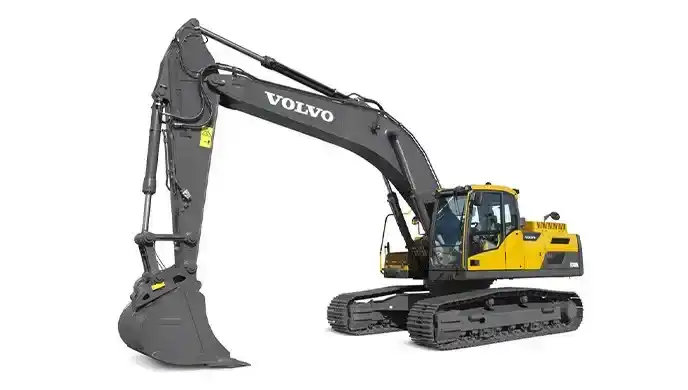

Volvo EC300D

Ex-Showroom Price

₹ 1.10 Cr - 1.13 Cr

Diesel

Diesel

33100 kg

33100 kg

7350 mm

7350 mm

Download Volvo EC300D Brochure

Download Volvo EC300D brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Volvo EC300D

Engine Power

Engine Power

231 HP

Operating Weight

Operating Weight

33100 kg

Bucket capacity

Bucket capacity

2.02 Cu.m

Hydraulic system

Hydraulic system

400 L/min

Maximum Digging Depth

Maximum Digging Depth

7350 mm

Boom Height

Boom Height

6.2 m

About Volvo EC300D Overview

Volvo EC300D is a popular excavator in the construction vehicle industry. The max operating weight of this excavator is 33100 Kg and also has a lifting capacity of 11020 Kg. Moreover The max digging d...

Volvo EC300D Specifications & Features

Engine

Engine ModelVolvo D7 diesel / Volvo D7 engine
Gross Power170 kW
Net Power162 kW
Engine Power231 HP
Displacement7100 cc
Number of Cylinders6 Nos
Rated RPM1800 rpm
Emission StandardBS II
Max Torque1080 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight33100 kg
Machine Weight33100 kg
Counterweight5100 kg
Ground Pressure57.6 kPa

Hydraulic System

Main Pump Typevariable displacement axial piston pumps
Maximum Hydraulic Flow526 L/min
Maximum System Pressure333 bar
Hydraulic Oil Capacity400 litres
Auxiliary Hydraulic Flow180 L/min

Working Range

Maximum Digging Depth7350 mm
Maximum Vertical Wall Digging Depth6480 mm
Maximum Reach at Ground Level10520 mm
Maximum Dumping Height7040 mm
Maximum Cutting Height10080 mm
Boom Length6.200 m
Arm Length3050 mm
Bucket Breakout Force188 kN
Arm Tear-out Force135 kN

Volvo EC300D EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

2,42,464

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount1,09,00,000
Interest Amount (12 %)36,47,869
Total Amount Payable1,45,47,869

Volvo EC300D Pros and cons

like

Pros

  • Competitive pricing for its class — strong value proposition compared to some rivals.
  • Good travel speed and maneuverability for a 30 t class machine.
  • Lower ground bearing pressure implies less soil compaction on softer terrain.
  • dislike

    Cons

  • Lower engine power than some competitors in the same class
  • Smaller fuel tank than some rivals, leading to potentially more refueling stops.
  • Ground pressure slightly higher than some alternatives (can matter on very soft ground).
  • Download Volvo EC300D Brochure PDF

    Download Volvo EC300D brochure online. Check out the Volvo EC300D PDF brochure at Only Heavy with all features and specifications.

    Volvo EC300D Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    Volvo EC300D Loan Offers

    location

    Explore Volvo EC300D Alternatives

    Calculate your Monthly Fuel Cost

    The calculations provide an estimated amount, but actual figures may vary depending on local fuel prices, electricity rates, and other factors

    Fuel Consumption

    1248 Litres Per Month

    Fuel Price

    118560 Per Month

    Fuel

    Compare Top Excavators

    Talk to Dealer

    Find nearest dealer in your area with us and fulfil your dreams by buying the best Excavator matching your needs.

    FAQs on Volvo EC300D

    Do you have more questions?

    End-to-end payments and financial management in a single solution. Meet the right platform to help realize.

    What is the operating weight of Volvo EC300D?

    What is the fuel tank capacity of Volvo EC300D?

    What is the bucket capacity of Volvo EC300D?

    What is the engine power of Volvo EC300D?

    What is the maximum digging depth of Volvo EC300D?

    What is the hydraulic flow rate of Volvo EC300D?

    What is the fuel type of Volvo EC300D?

    What is the emission standard of Volvo EC300D?
