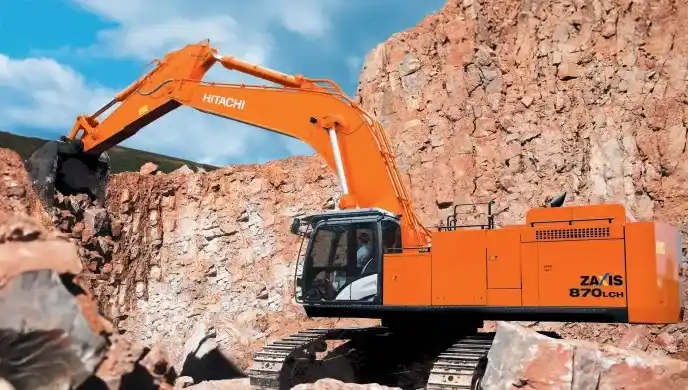

Tata Hitachi ZAXIS 870 5G

Ex-Showroom Price

₹ 80 L - 88.99 L

Diesel

Diesel

82300 kg

82300 kg

9570 mm

9570 mm

Download Tata Hitachi ZAXIS 870 5G Brochure

Download Tata Hitachi ZAXIS 870 5G brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi ZAXIS 870 5G

Engine Power

Engine Power

483 HP

Operating Weight

Operating Weight

82300 kg

Bucket capacity

Bucket capacity

4.5 Cu.m

Hydraulic system

Hydraulic system

1024 L/min

Maximum Digging Depth

Maximum Digging Depth

9570 mm

Boom Height

Boom Height

8.4 m

About Tata Hitachi ZAXIS 870 5G Overview

Tata Hitachi ZAXIS 870 5G is a popular Excavator in the construction vehicle industry.This Tata Hitachi ZAXIS 870 5G in India is available at a competitive price range. Tata Hitachi ZAXIS 870 5G is eq...

Tata Hitachi ZAXIS 870 5G Specifications & Features

Engine

Engine ModelIsuzu BB‑6WG1XQA‑04
Gross Power360 kW
Net Power360 kW
Engine Power483 HP
Displacement15681 cc
Number of Cylinders6 Nos
Rated RPM1800 rpm
Emission StandardHIOS IIIB hydraulic engine
Max Torque1945 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight82300 kg
Machine Weight80800 kg
Counterweight10200 kg
Ground Pressure121 kPa

Hydraulic System

Main Pump Type2 × Variable displacement axial piston pumps
Maximum Hydraulic Flow1024 L/min
Maximum System Pressure319 bar
Hydraulic Oil Capacity1024 litres
Auxiliary Hydraulic Flow321 L/min

Working Range

Maximum Digging Depth9570 mm
Maximum Vertical Wall Digging Depth7170 mm
Maximum Reach at Ground Level13820 mm
Maximum Dumping Height9080 mm
Maximum Cutting Height13030 mm
Boom Length8.400 m
Arm Length3700 mm
Bucket Breakout Force359 kN
Arm Tear-out Force315 kN

Tata Hitachi ZAXIS 870 5G EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

1,75,731

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount79,00,000
Interest Amount (12 %)26,43,868
Total Amount Payable1,05,43,868

Tata Hitachi ZAXIS 870 5G Pros and cons

like

Pros

  • Strong power + high hydraulic flow enables fast, powerful digging cycles and supports heavy attachments.
  • Its HIOS IIIB hydraulic system with ECO mode reduces fuel consumption (up to ~4–10% vs older models), lowering operating costs.
  • Designed for mining and heavy construction with a strengthened upper structure and reliable undercarriage.
  • dislike

    Cons

  • Upfront investment is significant (likely ₹ crore‑range for new unit). Large machines also cost more to insure and maintain.
  • Heavy‑duty machines require specialized service and parts, and downtime can be expensive if not supported well locally.
  • Large hydraulic systems and controls mean operator training is critical to fully utilize power without unnecessary wear or fuel waste.
  • Download Tata Hitachi ZAXIS 870 5G Brochure PDF

    Download Tata Hitachi ZAXIS 870 5G brochure online. Check out the Tata Hitachi ZAXIS 870 5G PDF brochure at Only Heavy with all features and specifications.

    Tata Hitachi ZAXIS 870 5G Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    Tata Hitachi ZAXIS 870 5G Loan Offers

    location

    Explore Tata Hitachi ZAXIS 870 5G Alternatives

    Calculate your Monthly Fuel Cost

    The calculations provide an estimated amount, but actual figures may vary depending on local fuel prices, electricity rates, and other factors

    Fuel Consumption

    1248 Litres Per Month

    Fuel Price

    118560 Per Month

    Fuel

    Compare Top Excavators

    Talk to Dealer

    Find nearest dealer in your area with us and fulfil your dreams by buying the best Excavator matching your needs.

    FAQs on Tata Hitachi ZAXIS 870 5G

    Do you have more questions?

    End-to-end payments and financial management in a single solution. Meet the right platform to help realize.

    What is the operating weight of Tata Hitachi ZAXIS 870 5G ?

    What is the fuel tank capacity of Tata Hitachi ZAXIS 870 5G ?

    What is the bucket capacity of Tata Hitachi ZAXIS 870 5G ?

    What is the engine power of Tata Hitachi ZAXIS 870 5G ?

    What is the maximum digging depth of Tata Hitachi ZAXIS 870 5G ?

    What is the hydraulic flow rate of Tata Hitachi ZAXIS 870 5G ?

    What is the fuel type of Tata Hitachi ZAXIS 870 5G ?

    What is the emission standard of Tata Hitachi ZAXIS 870 5G ?
