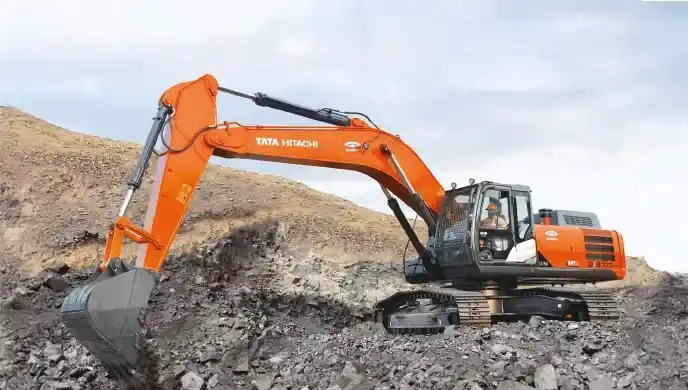

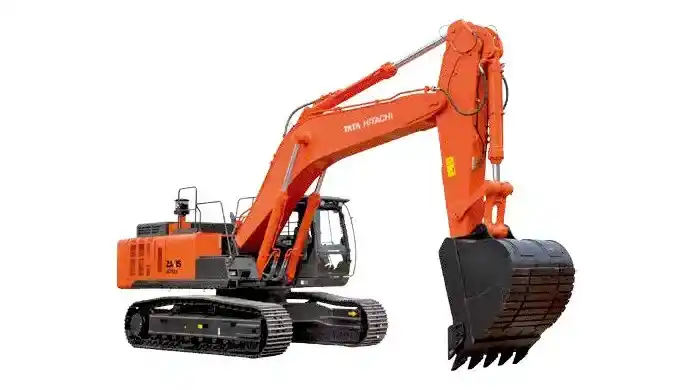

Tata Hitachi ZAXIS 470H

Ex-Showroom Price

₹ 1.10 Cr - 1.19 Cr

Diesel

47100 kg

11100 mm

Download Tata Hitachi ZAXIS 470H Brochure

Download Tata Hitachi ZAXIS 470H brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi ZAXIS 470H

Engine Power

315 HP

Operating Weight

47100 kg

Bucket capacity

3.1 Cu.m

Hydraulic system

720 L/min

Maximum Digging Depth

11100 mm

Boom Height

10.07 m

About Tata Hitachi ZAXIS 470H Overview

Tata Hitachi is a very popular name in the heavy construction equipment segment. Tata Hitachi ZAXIS 470H is designed with segment best specification, which helps in providing better work efficiency. T...

Tata Hitachi ZAXIS 470H Specifications & Features

Engine

Engine ModelCummins QSL9

Gross Power232 kW

Net Power219 kW

Engine Power315 HP

Displacement15681 cc

Number of Cylinders6 Nos

Rated RPM2000 rpm

Emission StandardBS IV

Max Torque1450 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight47100 kg

Machine Weight44800 kg

Counterweight7500 kg

Ground Pressure78 kPa

Hydraulic System

Main Pump TypeVariable displacement axial piston pumps

Maximum Hydraulic Flow720 L/min

Maximum System Pressure343 bar

Hydraulic Oil Capacity310 litres

Auxiliary Hydraulic Flow180 L/min

Working Range

Maximum Digging Depth11100 mm

Maximum Vertical Wall Digging Depth9200 mm

Maximum Reach at Ground Level16500 mm

Maximum Dumping Height7700 mm

Maximum Cutting Height10070 mm

Boom Length6.500 m

Arm Length3350 mm

Bucket Breakout Force287 kN

Arm Tear-out Force236 kN

Tata Hitachi ZAXIS 470H EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹2,42,464

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹1,09,00,000
Interest Amount (12 %)	₹36,47,869
Total Amount Payable	₹1,45,47,869

Tata Hitachi ZAXIS 470H Pros and cons

Pros

Competitive price in its class (~₹1.17 – 1.20 Cr range) — often lower than some rivals (e.g., Kobelco SK520XDLC)

Large fuel tank (705 L) for extended operation without frequent refills

Decent hydraulic flow (~720 L/min) for heavy work and attachments

Cons

Lower engine power (~315 hp vs some competitors with ~344 hp)

Smaller bucket capacity range (approx 1.9–3.1 m³) compared to larger rivals

Specs vary by configuration — “actual boom height” and some performance metrics depend on stick length and setup

Download Tata Hitachi ZAXIS 470H Brochure PDF

Download Tata Hitachi ZAXIS 470H brochure online. Check out the Tata Hitachi ZAXIS 470H PDF brochure at Only Heavy with all features and specifications.

Tata Hitachi ZAXIS 470H Uses

Excavation

Digging

Construction

Material handling

Trenching
