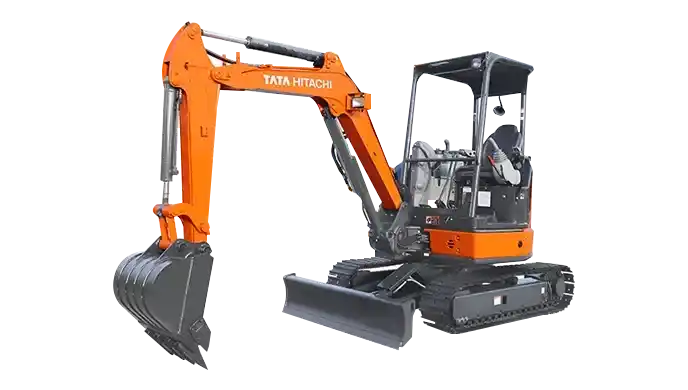

Tata Hitachi Zaxis 33 U

Ex-Showroom Price

₹ 27 L - 29 L

Diesel

3650 kg

2790 mm

Download Tata Hitachi Zaxis 33 U Brochure

Download Tata Hitachi Zaxis 33 U brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi Zaxis 33 U

Engine Power

28.4 HP

Operating Weight

3650 kg

Bucket capacity

0.09 Cu.m

Hydraulic system

38.4 L/min

Maximum Digging Depth

2790 mm

Boom Height

1.9 m

About Tata Hitachi Zaxis 33 U Overview

The Tata Hitachi ZAXIS 33U is a highly efficient 3.3-ton class machine designed for precision work, urban construction, and light earthmoving applications where space is limited but productivity is es...

Tata Hitachi Zaxis 33 U Specifications & Features

Engine

Engine ModelYanmar EDM‑3TNV88

Gross Power21.1 kW

Net Power21 kW

Engine Power28.8 HP

Displacement1642 cc

Number of Cylinders3 Nos

Rated RPM2200 rpm

Emission StandardBS II

Max Torque105.5 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight3650 kg

Machine Weight3650 kg

Counterweight540 kg

Ground Pressure35 kPa

Hydraulic System

Main Pump Typevariable displacement axial piston pumps

Maximum Hydraulic Flow77 L/min

Maximum System Pressure245 bar

Hydraulic Oil Capacity56 litres

Auxiliary Hydraulic Flow50 L/min

Working Range

Maximum Digging Depth2790 mm

Maximum Vertical Wall Digging Depth2330 mm

Maximum Reach at Ground Level4750 mm

Maximum Dumping Height3310 mm

Maximum Cutting Height4420 mm

Boom Length2.100 m

Arm Length1170 mm

Bucket Breakout Force27.2 kN

Arm Tear-out Force14.6 kN

Tata Hitachi Zaxis 33 U EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹57,836

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹26,00,000
Interest Amount (12 %)	₹8,70,134
Total Amount Payable	₹34,70,134

Tata Hitachi Zaxis 33 U Pros and cons

Pros

Zero‑tail swing design — ideal for tight/urban work spaces.
Efficient small‑diesel engine with good torque for its class (~28–29 hp).
Multiple boom/arm options for deeper reach or higher cutting height.

Cons

Limited power & excavation depth compared to larger 4–5 t machines — best for light‑ to medium‑duty jobs.
Small bucket capacity (0.04–0.09 m³) may slow bulk material handling.
Cabin AC often not available as standard on basic trims.

Download Tata Hitachi Zaxis 33 U Brochure PDF

Download Tata Hitachi Zaxis 33 U brochure online. Check out the Tata Hitachi Zaxis 33 U PDF brochure at Only Heavy with all features and specifications.

Tata Hitachi Zaxis 33 U Uses

Excavation

Digging

Construction

Material handling

Trenching
