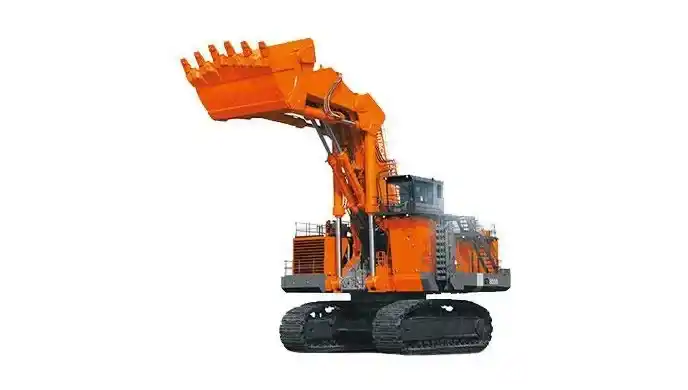

Tata Hitachi EX8000-6

Ex-Showroom Price

₹ 90 L - 95.01 L

Diesel

811000 kg

8400 mm

Download Tata Hitachi EX8000-6 Brochure

Download Tata Hitachi EX8000-6 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi EX8000-6

Engine Power

3880 HP

Operating Weight

811000 kg

Bucket capacity

43 Cu.m

Hydraulic system

8000 L/min

Maximum Digging Depth

8400 mm

Boom Height

13.8 m

About Tata Hitachi EX8000-6 Overview

The Tata Hitachi EX8000-6 is one of the most powerful ultra-class mining excavators designed for large-scale, high-production surface mining operations where maximum output and reliability are essenti...

Tata Hitachi EX8000-6 Specifications & Features

Engine

Engine ModelCummins QSKTA60-CE (Twin Engines)

Gross Power2900 kW

Net Power2900 kW

Engine Power3900 HP

Displacement120000 cc

Number of Cylinders32 Nos

Rated RPM1800 rpm

Emission StandardBS II

Max Torque8364 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight811000 kg

Machine Weight760000 kg

Counterweight300000 kg

Ground Pressure230 kPa

Hydraulic System

Main Pump TypeMultiple Variable-Displacement Axial Piston Pumps

Maximum Hydraulic Flow8000 L/min

Maximum System Pressure310 bar

Hydraulic Oil Capacity3890 litres

Auxiliary Hydraulic Flow220 L/min

Working Range

Maximum Digging Depth8400 mm

Maximum Vertical Wall Digging Depth5500 mm

Maximum Reach at Ground Level22300 mm

Maximum Dumping Height13800 mm

Maximum Cutting Height20500 mm

Boom Length8.700 m

Arm Length3800 mm

Bucket Breakout Force2000 kN

Arm Tear-out Force1650 kN

Tata Hitachi EX8000-6 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,97,976

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹89,00,000
Interest Amount (12 %)	₹29,78,535
Total Amount Payable	₹1,18,78,535

Tata Hitachi EX8000-6 Pros and cons

Pros

Massive total engine power (~3,900 HP) ideal for deep mining and large-volume loading.
Very high arm crowding and breakout forces, giving strong digging performance even in tough ground.
Robust build and heavy-duty components support 24/7 mining operations with good maintainability access.

Cons

With a large twin-engine setup and massive hydraulic demands, fuel burn is extremely high, increasing operating costs.
Due to its size and weight (~810–837 t), transporting the machine between sites is complex and costly.
Compared with smaller excavators, its travel speed and site manoeuvrability are limited.

Download Tata Hitachi EX8000-6 Brochure PDF

Download Tata Hitachi EX8000-6 brochure online. Check out the Tata Hitachi EX8000-6 PDF brochure at Only Heavy with all features and specifications.

Tata Hitachi EX8000-6 Uses

Excavation

Digging

Construction

Material handling

Trenching
