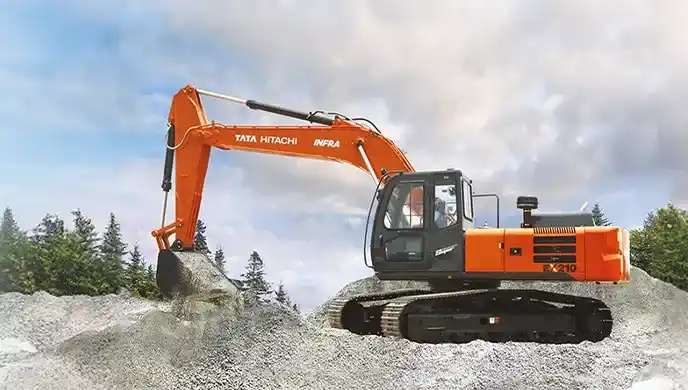

Tata Hitachi EX 210 Infra

Ex-Showroom Price

₹ 63 L - 64.98 L

Diesel

20300 kg

6600 mm

Download Tata Hitachi EX 210 Infra Brochure

Download Tata Hitachi EX 210 Infra brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi EX 210 Infra

Engine Power

131 HP

Operating Weight

20300 kg

Bucket capacity

1.5 Cu.m

Hydraulic system

442 L/min

Maximum Digging Depth

6600 mm

Boom Height

9.4 m

About Tata Hitachi EX 210 Infra Overview

Tata Hitachi EX 210 Infra is a popular Excavator in the construction vehicle industry.This Tata Hitachi EX 210 Infra in India is available at a competitive price range. Tata Hitachi EX 210 Infra is eq...

Tata Hitachi EX 210 Infra Specifications & Features

Engine

Engine ModelCummins 6BT5 9C (6‑cylinder in‑line water‑cooled)

Gross Power98 kW

Net Power98 kW

Engine Power131 HP

Displacement5900 cc

Number of Cylinders6 Nos

Rated RPM2000 rpm

Emission StandardBS IV

Max Torque537 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight20300 kg

Machine Weight20300 kg

Counterweight7512 kg

Ground Pressure46 kPa

Hydraulic System

Main Pump Type2 × variable displacement axial piston pumps

Maximum Hydraulic Flow442 L/min

Maximum System Pressure279 bar

Hydraulic Oil Capacity220 litres

Auxiliary Hydraulic Flow140 L/min

Working Range

Maximum Digging Depth6600 mm

Maximum Vertical Wall Digging Depth5980 mm

Maximum Reach at Ground Level9740 mm

Maximum Dumping Height6610 mm

Maximum Cutting Height9400 mm

Boom Length5.680 m

Arm Length2900 mm

Bucket Breakout Force120 kN

Arm Tear-out Force115 kN

Tata Hitachi EX 210 Infra EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,37,916

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹62,00,000
Interest Amount (12 %)	₹20,74,935
Total Amount Payable	₹82,74,935

Tata Hitachi EX 210 Infra Pros and cons

Pros

Reliable Cummins Engine: Known for durability and decent fuel efficiency.

Balanced Performance: Good reach (~9.9 m) and digging depth (~6.6 m) for mid‑size infrastructure work.

Versatile Bucket Range: 0.86–1.5 m³ capacity suits jobs from trenching to bulk excavation.

Cons

Lower Engine Power vs Some Competitors: 131 HP is lower than some rivals (e.g., Komatsu PC210‑10 ~165 HP).

Hydraulic Flow Moderate: ~442 L/min is less than some peers like PC210 (~475 L/min).

Displacement Not Always Published: Lack of official cc figure can complicate comparisons.

Download Tata Hitachi EX 210 Infra Brochure PDF

Download Tata Hitachi EX 210 Infra brochure online. Check out the Tata Hitachi EX 210 Infra PDF brochure at Only Heavy with all features and specifications.

Tata Hitachi EX 210 Infra Uses

Excavation

Digging

Construction

Material handling

Trenching
