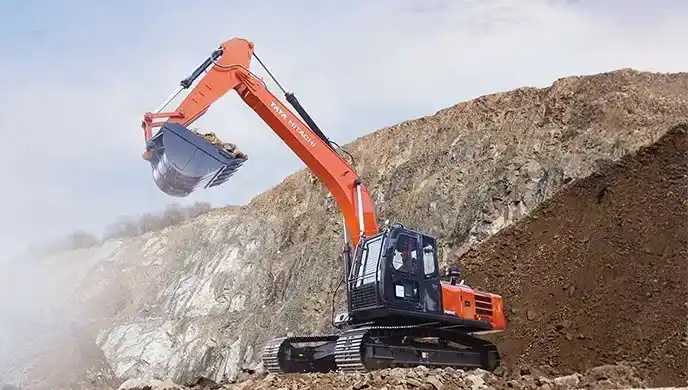

Tata Hitachi EX 200LC Prime

Ex-Showroom Price

₹ 61 L - 62.99 L

Diesel

20300 kg

5910 mm

Download Tata Hitachi EX 200LC Prime Brochure

Download Tata Hitachi EX 200LC Prime brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi EX 200LC Prime

Engine Power

131 HP

Operating Weight

20300 kg

Bucket capacity

0.9 Cu.m

Hydraulic system

442 L/min

Maximum Digging Depth

5910 mm

Boom Height

5.68 m

About Tata Hitachi EX 200LC Prime Overview

Tata Hitachi EX 200LC Prime is a popular Excavator in the construction vehicle industry.This Tata Hitachi EX 200LC Prime in India is available at a competitive price range. Tata Hitachi EX 200LC Prime...

Tata Hitachi EX 200LC Prime Specifications & Features

Engine

Engine ModelCummins 6BT5.9C

Gross Power97.6 kW

Net Power97.6 kW

Engine Power131 HP

Displacement6494 cc

Number of Cylinders6 Nos

Rated RPM2000 rpm

Emission StandardBS IV

Max Torque537 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight20300 kg

Machine Weight20100 kg

Counterweight5300 kg

Ground Pressure50.9 kPa

Hydraulic System

Main Pump TypeVariable displacement axial piston pumps

Maximum Hydraulic Flow442 L/min

Maximum System Pressure279 bar

Hydraulic Oil Capacity220 litres

Auxiliary Hydraulic Flow120 L/min

Working Range

Maximum Digging Depth5910 mm

Maximum Vertical Wall Digging Depth5050 mm

Maximum Reach at Ground Level9060 mm

Maximum Dumping Height6230 mm

Maximum Cutting Height8990 mm

Boom Length5.680 m

Arm Length2200 mm

Bucket Breakout Force107.9 kN

Arm Tear-out Force110.8 kN

Tata Hitachi EX 200LC Prime EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,33,467

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹60,00,000
Interest Amount (12 %)	₹20,08,001
Total Amount Payable	₹80,08,001

Tata Hitachi EX 200LC Prime Pros and cons

Pros

Strong Engine & Torque: 131 hp with 537 Nm torque provides solid performance in medium‑to‑heavy work.

High Hydraulic Flow: ~442 L/min total supports productive cycle times & heavier attachments.

Good Operating Weight: ~20 t class gives stability and digging power for general construction/mining tasks.

Cons

Specification Details Limited Publicly: Some parameters like final drive oil, exact auxiliary flow, and emissions standard are not widely published.

Fuel Efficiency: Large hydraulic flow and engine power may consume more fuel under heavy duty cycles

Size & Transport: At ~20 t, transport requires permits/trucks between sites.

Download Tata Hitachi EX 200LC Prime Brochure PDF

Download Tata Hitachi EX 200LC Prime brochure online. Check out the Tata Hitachi EX 200LC Prime PDF brochure at Only Heavy with all features and specifications.

Tata Hitachi EX 200LC Prime Uses

Excavation

Digging

Construction

Material handling

Trenching
