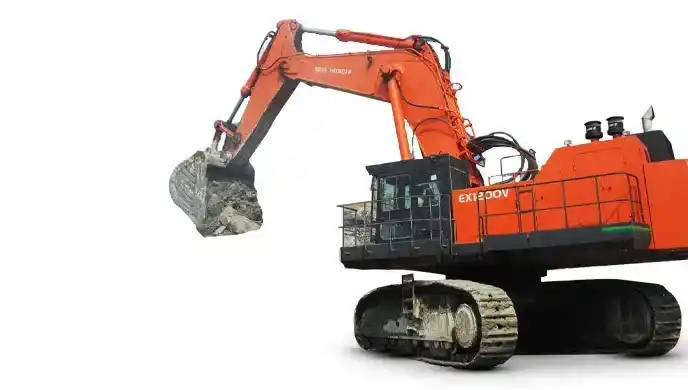

Tata Hitachi EX 1200V

Ex-Showroom Price

₹ 11 L - 12 L

Diesel

Diesel

109000 kg

109000 kg

5240 mm

5240 mm

Download Tata Hitachi EX 1200V Brochure

Download Tata Hitachi EX 1200V brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi EX 1200V

Engine Power

Engine Power

760 HP

Operating Weight

Operating Weight

109000 kg

Bucket capacity

Bucket capacity

6.5 Cu.m

Hydraulic system

Hydraulic system

1485 L/min

Maximum Digging Depth

Maximum Digging Depth

5240 mm

Boom Height

Boom Height

9.1 m

About Tata Hitachi EX 1200V Overview

Tata Hitachi is a very popular name in the heavy construction equipment segment. Tata Hitachi EX 1200V is designed with segment best specification, which helps in providing better work efficiency. The...

Tata Hitachi EX 1200V Specifications & Features

Engine

Engine ModelCummins QSK23-C
Gross Power566 kW
Net Power560 kW
Engine Power760 HP
Displacement23150 cc
Number of Cylinders6 Nos
Rated RPM1800 rpm
Emission StandardBS II
Max Torque3200 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight109000 kg
Machine Weight102000 kg
Counterweight32000 kg
Ground Pressure180 kPa

Hydraulic System

Main Pump TypeVariable-Displacement Axial Piston Pumps
Maximum Hydraulic Flow1485 L/min
Maximum System Pressure314 bar
Hydraulic Oil Capacity1350 litres
Auxiliary Hydraulic Flow250 L/min

Working Range

Maximum Digging Depth9340 mm
Maximum Vertical Wall Digging Depth5080 mm
Maximum Reach at Ground Level14700 mm
Maximum Dumping Height8920 mm
Maximum Cutting Height12350 mm
Boom Length9.100 m
Arm Length3800 mm
Bucket Breakout Force640 kN
Arm Tear-out Force510 kN

Tata Hitachi EX 1200V EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

22,244

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount10,00,000
Interest Amount (12 %)3,34,667
Total Amount Payable13,34,667

Tata Hitachi EX 1200V Pros and cons

like

Pros

  • High Power & Productivity – 760 HP engine offers strong digging and loading performance, ideal for mining & heavy civil earthworks.
  • Large Hydraulic Capacity – 3 × 495 L/min main pumps supply significant flow for powerful implement performance.
  • Deep Digging & Reach – Nearly 9.3 m max digging depth with long 9.1 m boom for tough excavating tasks.
  • dislike

    Cons

  • Price on Request Only – No standard published price; OEM dealer quotes needed.
  • Fuel Consumption – Large engine and heavy workloads mean significant fuel use and operating cost.
  • Specialized Maintenance – High service costs and need for trained technicians due to heavy mining spec.
  • Download Tata Hitachi EX 1200V Brochure PDF

    Download Tata Hitachi EX 1200V brochure online. Check out the Tata Hitachi EX 1200V PDF brochure at Only Heavy with all features and specifications.

    Tata Hitachi EX 1200V Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    Tata Hitachi EX 1200V Loan Offers

    location

    Explore Tata Hitachi EX 1200V Alternatives

    Calculate your Monthly Fuel Cost

    The calculations provide an estimated amount, but actual figures may vary depending on local fuel prices, electricity rates, and other factors

    Fuel Consumption

    1248 Litres Per Month

    Fuel Price

    118560 Per Month

    Fuel

    Compare Top Excavators

    Talk to Dealer

    Find nearest dealer in your area with us and fulfil your dreams by buying the best Excavator matching your needs.

    FAQs on Tata Hitachi EX 1200V

    Do you have more questions?

    End-to-end payments and financial management in a single solution. Meet the right platform to help realize.

    What is the operating weight of Tata Hitachi EX 1200V?

    What is the fuel tank capacity of Tata Hitachi EX 1200V?

    What is the bucket capacity of Tata Hitachi EX 1200V?

    What is the engine power of Tata Hitachi EX 1200V?

    What is the maximum digging depth of Tata Hitachi EX 1200V?

    What is the hydraulic flow rate of Tata Hitachi EX 1200V?

    What is the fuel type of Tata Hitachi EX 1200V?

    What is the emission standard of Tata Hitachi EX 1200V?
