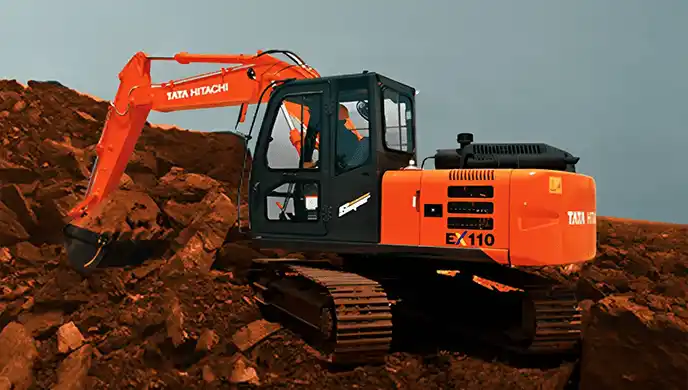

Tata Hitachi EX 110

Ex-Showroom Price

₹ 46 L - 47.98 L

Diesel

11600 kg

4720 mm

Download Tata Hitachi EX 110 Brochure

Download Tata Hitachi EX 110 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi EX 110

Engine Power

76 HP

Operating Weight

11600 kg

Bucket capacity

0.86 Cu.m

Hydraulic system

115 L/min

Maximum Digging Depth

4720 mm

Boom Height

4.25 m

About Tata Hitachi EX 110 Overview

The Tata Hitachi EX 110 is a compact yet powerful hydraulic excavator designed for efficient performance in urban construction, infrastructure development, and light-to-medium earthmoving applications...

Tata Hitachi EX 110 Specifications & Features

Engine

Engine ModelTata 697NA

Gross Power59.7 kW

Net Power59.7 kW

Engine Power80 HP

Displacement4250 cc

Number of Cylinders4 Nos

Rated RPM2300 rpm

Emission StandardBS IV

Max Torque289 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight11500 kg

Machine Weight11500 kg

Counterweight2500 kg

Ground Pressure38.3 kPa

Hydraulic System

Main Pump Type2 × variable displacement axial piston pumps

Maximum Hydraulic Flow230 L/min

Maximum System Pressure348 bar

Hydraulic Oil Capacity126 litres

Auxiliary Hydraulic Flow70 L/min

Working Range

Maximum Digging Depth4720 mm

Maximum Vertical Wall Digging Depth4040 mm

Maximum Reach at Ground Level7250 mm

Maximum Dumping Height5280 mm

Maximum Cutting Height7630 mm

Boom Length4.250 m

Arm Length1950 mm

Bucket Breakout Force100 kN

Arm Tear-out Force70 kN

Tata Hitachi EX 110 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,00,100

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹45,00,000
Interest Amount (12 %)	₹15,06,001
Total Amount Payable	₹60,06,001

Tata Hitachi EX 110 Pros and cons

Pros

Powered by a Tata 697NA diesel engine delivering around 80–85 hp (~60–63 kW) — adequate for general excavation, trenching, and loading work on medium jobsites
With a digging depth ~4.7 m and cutting height ~7.6 m, it’s versatile for typical construction tasks, utilities, and earthmoving.
Tata Hitachi has a wide aftermarket and support network in India, easing parts and servicing.

Cons

An ~80–85 hp engine is adequate but not very powerful compared with newer competitors in the same segment — this can affect speed under heavy loads or steep terrain.
Some owners report hydraulic leaks or pressure fluctuations in demanding conditions — proper maintenance is critical.
Occasional electrical issues (switchgear, sensors) can occur, especially on older machines.

Download Tata Hitachi EX 110 Brochure PDF

Download Tata Hitachi EX 110 brochure online. Check out the Tata Hitachi EX 110 PDF brochure at Only Heavy with all features and specifications.

Tata Hitachi EX 110 Uses

Excavation

Digging

Construction

Material handling

Trenching
