SANY SY380LC-10HD

Ex-Showroom Price

₹ 1.14 Cr - 1.16 Cr

Diesel

36000 kg

7050 mm

Download SANY SY380LC-10HD Brochure

Download SANY SY380LC-10HD brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of SANY SY380LC-10HD

Engine Power

284 HP

Operating Weight

36000 kg

Bucket capacity

1.4 Cu.m

Hydraulic system

320 L/min

Maximum Digging Depth

7050 mm

Boom Height

6.5 m

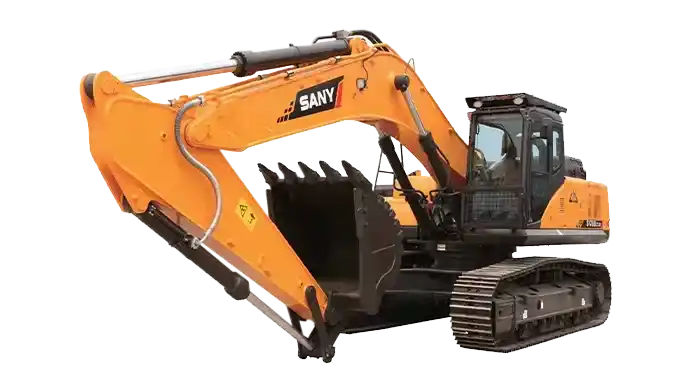

About SANY SY380LC-10HD Overview

The SANY SY380LC-10HD is a heavy-duty hydraulic excavator built for high-performance operations in mining, quarrying, and large infrastructure projects where power, endurance, and productivity are cri...

SANY SY380LC-10HD Specifications & Features

Engine

Engine ModelSY380LC‑9H (ISUZU based)

Gross Power212 kW

Net Power212 kW

Engine Power284 HP

Displacement7790 cc

Number of Cylinders6 Nos

Rated RPM2000 rpm

Emission StandardBS IV

Max Torque1080 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight36000 kg

Machine Weight36000 kg

Counterweight4800 kg

Ground Pressure65 kPa

Hydraulic System

Main Pump Typevariable displacement axial piston pumps + 1 gear pump

Maximum Hydraulic Flow320 L/min

Maximum System Pressure343 bar

Hydraulic Oil Capacity380 litres

Auxiliary Hydraulic Flow220 L/min

Working Range

Maximum Digging Depth7050 mm

Maximum Vertical Wall Digging Depth6300 mm

Maximum Reach at Ground Level10780 mm

Maximum Dumping Height9890 mm

Maximum Cutting Height9890 mm

Boom Length6.500 m

Arm Length2900 mm

Bucket Breakout Force235 kN

Arm Tear-out Force180 kN

SANY SY380LC-10HD EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹2,51,362

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹1,13,00,000
Interest Amount (12 %)	₹37,81,736
Total Amount Payable	₹1,50,81,736

SANY SY380LC-10HD Pros and cons

Pros

Designed for severe applications such as quarries, granite, marble, mining prep, and heavy earthmoving — built with robust structures and high uptime focus.
Uses a high‑power Isuzu diesel engine (~284 hp) matched with strong hydraulic circuits suitable for large buckets and heavy digging cycles at depth
Excellent dig depth (~7 m) and high dumping height (~9.9 m) make it suitable for deep trenches, high stockpile loading, and high dump heights into large trucks or hoppers.

Cons

At ~36 t operating weight, this machine is not ideal for light or urban job sites — requires substantial transport logistics and site access planning.
Heavy‑duty class means higher purchase price and operating costs (fuel, maintenance, insurance) compared with smaller excavators.
More systems (dual pumps, advanced hydraulics) mean specialized maintenance and potentially longer downtime if not serviced by trained technicians.

Download SANY SY380LC-10HD Brochure PDF

Download SANY SY380LC-10HD brochure online. Check out the SANY SY380LC-10HD PDF brochure at Only Heavy with all features and specifications.

SANY SY380LC-10HD Uses

Excavation

Digging

Construction

Material handling

Trenching
