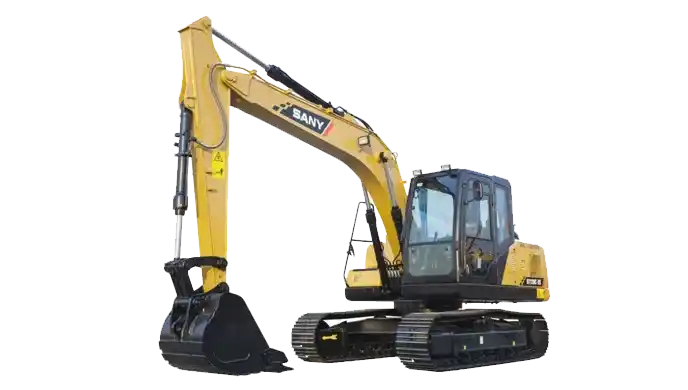

SANY SY120C-9

Ex-Showroom Price

₹ 54.99 L - 59.98 L

Diesel

12400 kg

4750 mm

Download SANY SY120C-9 Brochure

Download SANY SY120C-9 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of SANY SY120C-9

Engine Power

100 HP

Operating Weight

12400 kg

Bucket capacity

0.65 Cu.m

Hydraulic system

225 L/min

Maximum Digging Depth

4750 mm

Boom Height

4.3 m

About SANY SY120C-9 Overview

SANY is a very popular name in the heavy construction equipment segment. SANY SY120C-9 is designed with segment best specification, which helps in providing better work efficiency. The Excavator model...

SANY SY120C-9 Specifications & Features

Engine

Engine ModelCummins B3.9‑100c diesel

Gross Power75 kW

Net Power75 kW

Engine Power100 HP

Displacement3900 cc

Number of Cylinders4 Nos

Rated RPM2200 rpm

Emission StandardBS IV

Max Torque385 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight12400 kg

Machine Weight12400 kg

Counterweight4654 kg

Ground Pressure41.6 kPa

Hydraulic System

Main Pump TypeVariable Displacement Axial Piston Pump

Maximum Hydraulic Flow225 L/min

Maximum System Pressure314 bar

Hydraulic Oil Capacity150 litres

Auxiliary Hydraulic Flow120 L/min

Working Range

Maximum Digging Depth4750 mm

Maximum Vertical Wall Digging Depth4410 mm

Maximum Reach at Ground Level7345 mm

Maximum Dumping Height5165 mm

Maximum Cutting Height7415 mm

Boom Length4.260 m

Arm Length1960 mm

Bucket Breakout Force82 kN

Arm Tear-out Force62 kN

SANY SY120C-9 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,20,098

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹53,99,000
Interest Amount (12 %)	₹18,06,866
Total Amount Payable	₹72,05,866

SANY SY120C-9 Pros and cons

Pros

Cummins ~100.5 hp engine delivers solid output for its class with good torque and fuel economy

Hydraulic system tuned for responsive and smooth combined operations.

Reinforced structural components like anti‑wear bucket plates and quality components improve service life.

Cons

Price is higher than some direct competitors like Hyundai R130 or JCB 130 which may be cheaper in similar tonnage segments.

Fuel consumption can be relatively higher (~10 L/h reported in some comparisons).

Like many Chinese‑based OEMs, dealer network/support and resale value may not be as strong as Japanese/EU brands in some markets.

Download SANY SY120C-9 Brochure PDF

Download SANY SY120C-9 brochure online. Check out the SANY SY120C-9 PDF brochure at Only Heavy with all features and specifications.

SANY SY120C-9 Uses

Excavation

Digging

Construction

Material handling

Trenching
