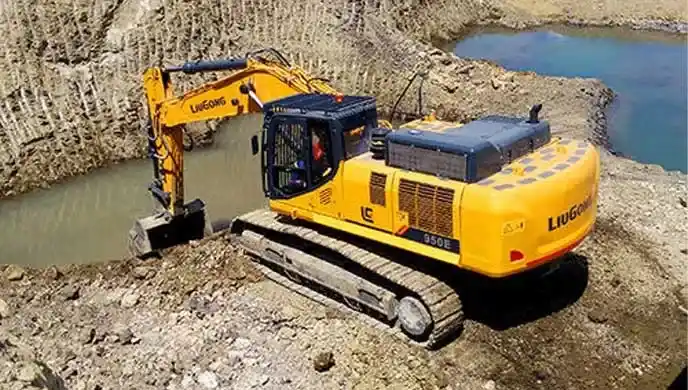

LiuGong 950E

Ex-Showroom Price

₹ 1.69 Cr - 1.71 Cr

Diesel

49800 kg

6521 mm

Download LiuGong 950E Brochure

Download LiuGong 950E brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of LiuGong 950E

Engine Power

378 HP

Operating Weight

49800 kg

Bucket capacity

3.2 Cu.m

Hydraulic system

380 L/min

Maximum Digging Depth

6521 mm

Boom Height

6.5 m

About LiuGong 950E Overview

LiuGong LiuGong 950E is a powerful 50-ton class hydraulic excavator engineered for large-scale mining, quarrying, infrastructure development, and heavy earthmoving operations, delivering strong diggin...

LiuGong 950E Specifications & Features

Engine

Engine ModelCummins X12 (EU Stage V)

Gross Power298 kW

Net Power282 kW

Engine Power378 HP

Displacement11800 cc

Number of Cylinders6 Nos

Rated RPM2100 rpm

Emission StandardBS V

Max Torque1898 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight49800 kg

Machine Weight47000 kg

Counterweight4200 kg

Ground Pressure65 kPa

Hydraulic System

Main Pump Type Dual variable displacement piston pumps

Maximum Hydraulic Flow760 L/min

Maximum System Pressure343 bar

Hydraulic Oil Capacity290 litres

Auxiliary Hydraulic Flow120 L/min

Working Range

Maximum Digging Depth6521 mm

Maximum Vertical Wall Digging Depth5204 mm

Maximum Reach at Ground Level10388 mm

Maximum Dumping Height7038 mm

Maximum Cutting Height9977 mm

Boom Length6.500 m

Arm Length2550 mm

Bucket Breakout Force265 kN

Arm Tear-out Force270 kN

LiuGong 950E EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹3,73,707

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹1,68,00,000
Interest Amount (12 %)	₹56,22,403
Total Amount Payable	₹2,24,22,403

LiuGong 950E Pros and cons

Pros

The ~6.5 m to ~7.06 m boom gives a competitive reach and height in the 45–50 t class, useful for digging and loading tasks.
Availability of a slightly longer boom and different arm lengths (2.55 m, 2.9 m, 3.38 m) lets you tailor reach vs depth for different jobs.
Greater boom height translates to a higher dumping height (~7 m+) — good for loading trucks or hoppers without repositioning.

Cons

Higher boom and longer reaches inherently reduce lifting capacity at extended ranges — a common excavator design trade‑off.
A longer boom means larger working envelope — potentially less maneuverable in confined sites compared with short‑boom configurations.
Even with the optional 7.06 m boom, reach is shorter compared to some long‑reach or radius excavator variants from other brands

Download LiuGong 950E Brochure PDF

Download LiuGong 950E brochure online. Check out the LiuGong 950E PDF brochure at Only Heavy with all features and specifications.

LiuGong 950E Uses

Excavation

Digging

Construction

Material handling

Trenching

LiuGong 950E Loan Offers

Explore LiuGong 950E Alternatives

New

Doosan DX165W Electric

₹ 1.80 Cr - 2.80 Cr

Engine: NA CC

View Details

New

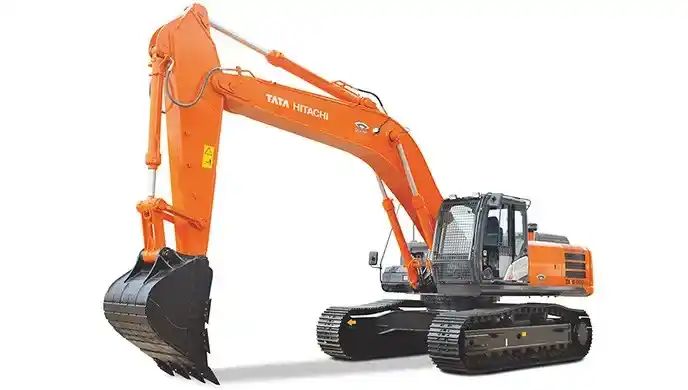

Tata Hitachi ZAXIS 400 MTH

₹ 1.50 Cr - 1.53 Cr

Engine: 7790 CC

View Details

New

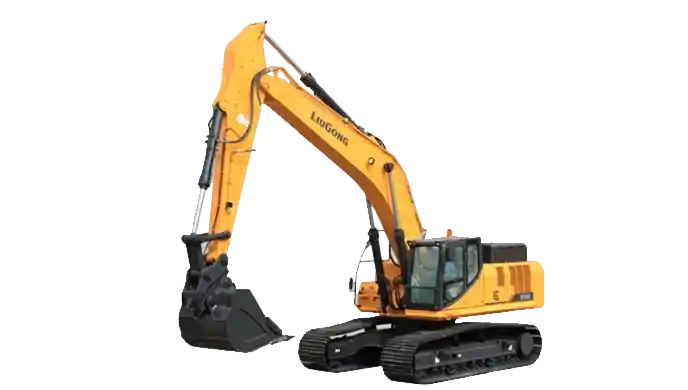

LiuGong CLG950EIIIA

₹ 1.69 Cr - 1.71 Cr

Engine: 10800 CC

View Details

New

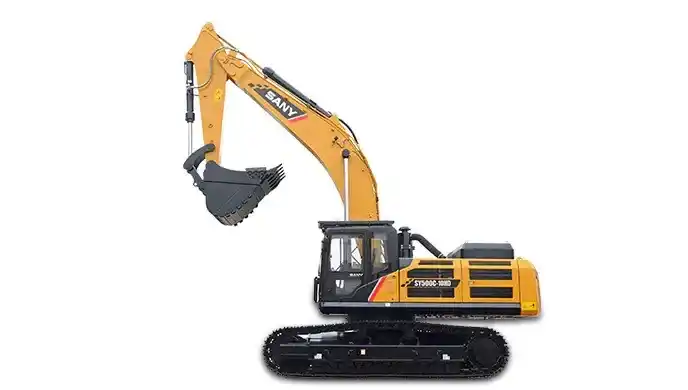

SANY SY500C-10HD

₹ 1.65 Cr - 2.11 Cr

Engine: 15680 CC

View Details

New

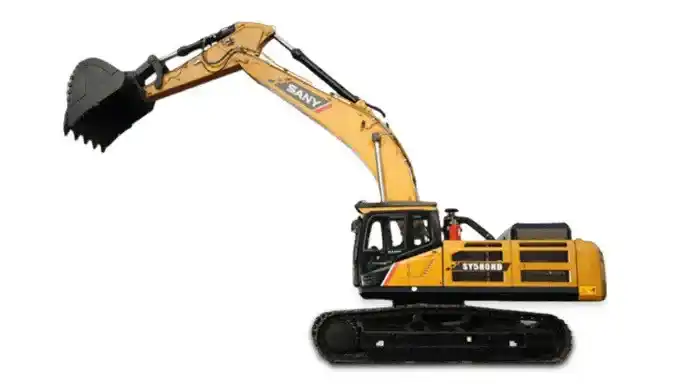

SANY SY580C-10HD
