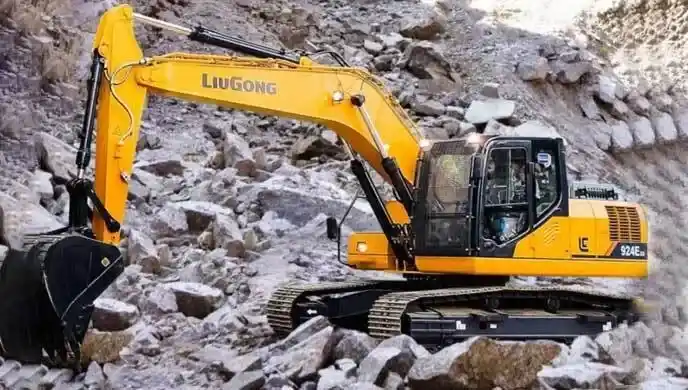

LiuGong 924E

Ex-Showroom Price

₹ 67 L - 69 L

Diesel

Diesel

24500 kg

24500 kg

6562 mm

6562 mm

Download LiuGong 924E Brochure

Download LiuGong 924E brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of LiuGong 924E

Engine Power

Engine Power

160 HP

Operating Weight

Operating Weight

24500 kg

Bucket capacity

Bucket capacity

1 Cu.m

Hydraulic system

Hydraulic system

224 L/min

Maximum Digging Depth

Maximum Digging Depth

6562 mm

Boom Height

Boom Height

9.46 m

About LiuGong 924E Overview

The LiuGong 924E is a heavy-duty hydraulic excavator in the ~24-ton class designed for demanding construction, earthmoving, and infrastructure tasks. It combines robust performance, efficient hydrauli...

LiuGong 924E Specifications & Features

Engine

Engine ModelCummins QSB7 6-cyl diesel
Gross Power123 kW
Net Power119 kW
Engine Power166 HP
Displacement6700 cc
Number of Cylinders6 Nos
Rated RPM2050 rpm
Emission StandardStage IIIA
Max Torque658 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight24500 kg
Machine Weight23600 kg
Counterweight2200 kg
Ground Pressure45 kPa

Hydraulic System

Main Pump TypeTwo variable displacement piston pumps
Maximum Hydraulic Flow448 L/min
Maximum System Pressure343 bar
Hydraulic Oil Capacity330 litres
Auxiliary Hydraulic Flow120 L/min

Working Range

Maximum Digging Depth6562 mm
Maximum Vertical Wall Digging Depth5080 mm
Maximum Reach at Ground Level9136 mm
Maximum Dumping Height6832 mm
Maximum Cutting Height9464 mm
Boom Length5.7 m
Arm Length2400 mm
Bucket Breakout Force159 kN
Arm Tear-out Force125 kN

LiuGong 924E EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,46,813

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹66,00,000
Interest Amount (12 %)₹22,08,801
Total Amount Payable₹88,08,801

LiuGong 924E Pros and cons

like

Pros

  • Powerful Engine & Performance
  • High Digging Force & Productivity
  • Stability & Build for Tough Jobs
    • dislike

    Cons

  • Optional GPS & Tech Features
  • Higher Ground Bearing Pressure
  • Larger Engine Can Mean More Fuel Use

    • Download LiuGong 924E Brochure PDF

    Download LiuGong 924E brochure online. Check out the LiuGong 924E PDF brochure at Only Heavy with all features and specifications.

    LiuGong 924E Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    LiuGong 924E Loan Offers
