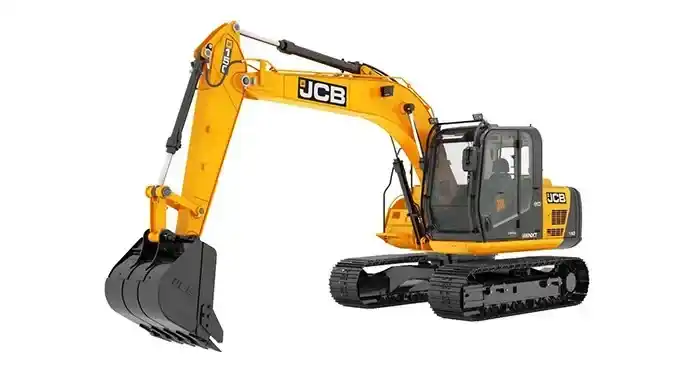

JCB NXT 150

Ex-Showroom Price

₹ 50 L - 52 L

Diesel

14700 kg

5210 mm

Download JCB NXT 150 Brochure

Download JCB NXT 150 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of JCB NXT 150

Engine Power

100 HP

Operating Weight

14700 kg

Bucket capacity

0.75 Cu.m

Hydraulic system

120 L/min

Maximum Digging Depth

5210 mm

Boom Height

4.7 m

About JCB NXT 150 Overview

JCB is a very popular name in the heavy construction equipment segment. JCB NXT 150 is designed with segment best specification, which helps in providing better work efficiency. The Excavator model fr...

JCB NXT 150 Specifications & Features

Engine

Engine ModelCummins 4BT 3.9C

Gross Power75 kW

Net Power75 kW

Engine Power100 HP

Displacement3900 cc

Number of Cylinders4 Nos

Rated RPM2000 rpm

Emission StandardBS III

Max Torque960 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight14700 kg

Machine Weight14700 kg

Counterweight4971 kg

Ground Pressure39.1 kPa

Hydraulic System

Main Pump Typevariable displacement axial piston pumps

Maximum Hydraulic Flow240 L/min

Maximum System Pressure330 bar

Hydraulic Oil Capacity173 litres

Auxiliary Hydraulic Flow67 L/min

Working Range

Maximum Digging Depth5210 mm

Maximum Vertical Wall Digging Depth4630 mm

Maximum Reach at Ground Level7890 mm

Maximum Dumping Height6380 mm

Maximum Cutting Height8880 mm

Boom Length4.700 m

Arm Length2100 mm

Bucket Breakout Force92.4 kN

Arm Tear-out Force74.1 kN

JCB NXT 150 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,08,998

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹49,00,000
Interest Amount (12 %)	₹16,39,868
Total Amount Payable	₹65,39,868

JCB NXT 150 Pros and cons

Pros

Larger 0.75 m³ bucket gives good material movement per cycle.

Deep digging (~5.2 m) and high reach (~8 m) handles typical construction tasks comfortably.

600 mm wide shoe tracks and reinforced links help stability, especially in sloppy/soft conditions.

Cons

Pricier than some direct competitors in the 14 t class (~₹50–52 L).

Some key performance details (exact engine type/tuning differences) aren’t always clarified in public specs.

At ~14.7 t, not as nimble as lighter 12–13 t excavators for tight urban sites.

Download JCB NXT 150 Brochure PDF

Download JCB NXT 150 brochure online. Check out the JCB NXT 150 PDF brochure at Only Heavy with all features and specifications.

JCB NXT 150 Uses

Excavation

Digging

Construction

Material handling

Trenching
