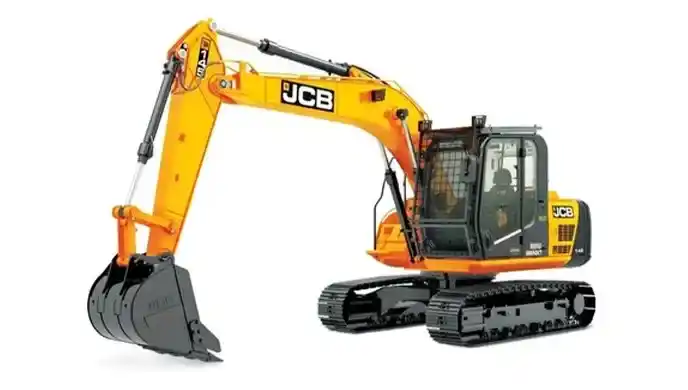

JCB NXT 145 QUARRY MASTER

Ex-Showroom Price

₹ 48 L - 49 L

Diesel

14500 kg

5210 mm

Download JCB NXT 145 QUARRY MASTER Brochure

Download JCB NXT 145 QUARRY MASTER brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of JCB NXT 145 QUARRY MASTER

Engine Power

100 HP

Operating Weight

14500 kg

Bucket capacity

0.72 Cu.m

Hydraulic system

120 L/min

Maximum Digging Depth

5210 mm

Boom Height

4.7 m

About JCB NXT 145 QUARRY MASTER Overview

JCB is a very popular name in the heavy construction equipment segment. JCB NXT 145 QUARRY MASTER is designed with segment best specification, which helps in providing better work efficiency. The Exca...

JCB NXT 145 QUARRY MASTER Specifications & Features

Engine

Engine ModelCummins 4BT 3.9C (Diesel)

Gross Power75 kW

Net Power75 kW

Engine Power100 HP

Displacement3900 cc

Number of Cylinders4 Nos

Rated RPM2000 rpm

Emission StandardBS IV

Max Torque660 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight14500 kg

Machine Weight14500 kg

Counterweight3200 kg

Ground Pressure50.9 kPa

Hydraulic System

Main Pump Typevariable displacement axial piston pumps

Maximum Hydraulic Flow240 L/min

Maximum System Pressure330 bar

Hydraulic Oil Capacity173 litres

Auxiliary Hydraulic Flow20 L/min

Working Range

Maximum Digging Depth5210 mm

Maximum Vertical Wall Digging Depth4640 mm

Maximum Reach at Ground Level7890 mm

Maximum Dumping Height6370 mm

Maximum Cutting Height8890 mm

Boom Length4.700 m

Arm Length2100 mm

Bucket Breakout Force92.5 kN

Arm Tear-out Force74.2 kN

JCB NXT 145 QUARRY MASTER EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,04,549

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹47,00,000
Interest Amount (12 %)	₹15,72,934
Total Amount Payable	₹62,72,934

JCB NXT 145 QUARRY MASTER Pros and cons

Pros

Heavy‑duty boom & reinforced structure designed for quarry and mining conditions

Boom/arm regenerative system improves hydraulic speed and lowers fuel use.

IP67/IP69 electrical connectors, laminated cabin glass, advanced safety features.

Cons

100 HP engine — decent for this size, but less powerful than some competitors.

Some variants may offer AC or comfort upgrades only as options (relative to rivals).

Heavier machine (~14,500 kg) can mean more fuel consumption compared with some lighter 14 t machines.

Download JCB NXT 145 QUARRY MASTER Brochure PDF

Download JCB NXT 145 QUARRY MASTER brochure online. Check out the JCB NXT 145 QUARRY MASTER PDF brochure at Only Heavy with all features and specifications.

JCB NXT 145 QUARRY MASTER Uses

Excavation

Digging

Construction

Material handling

Trenching
