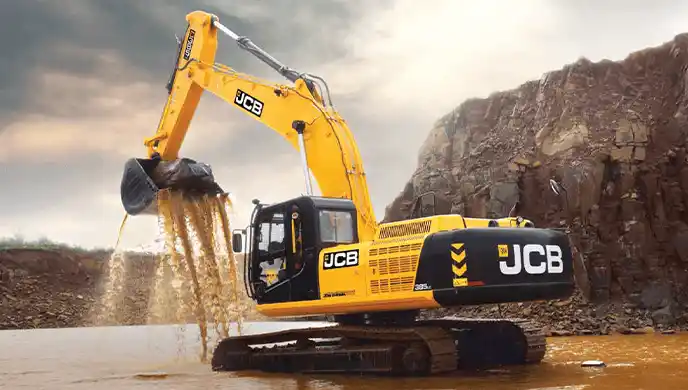

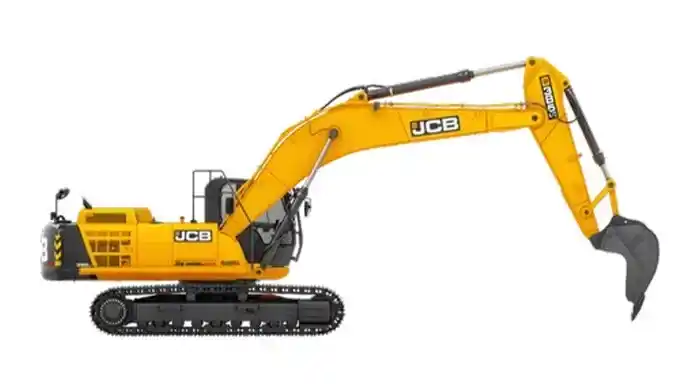

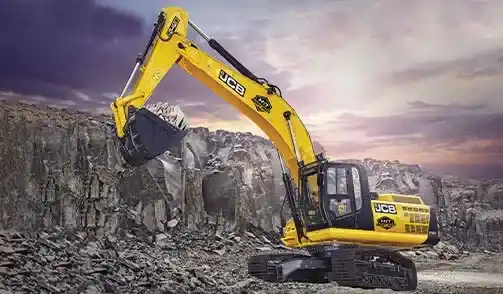

JCB 385LC QUARRY MASTER

Ex-Showroom Price

₹ 1.25 Cr - 1.27 Cr

Diesel

37733 kg

6800 mm

Download JCB 385LC QUARRY MASTER Brochure

Download JCB 385LC QUARRY MASTER brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of JCB 385LC QUARRY MASTER

Engine Power

284 HP

Operating Weight

37733 kg

Bucket capacity

1.6 Cu.m

Hydraulic system

304 L/min

Maximum Digging Depth

6800 mm

Boom Height

6.4 m

About JCB 385LC QUARRY MASTER Overview

The JCB 385LC QUARRY MASTER is a heavy-duty 38-ton class excavator specifically engineered for quarrying, mining, and extreme earthmoving applications where maximum strength, durability, and productiv...

JCB 385LC QUARRY MASTER Specifications & Features

Engine

Engine ModelJCB DieselMax 672

Gross Power212 kW

Net Power208 kW

Engine Power284 HP

Displacement7200 cc

Number of Cylinders6 Nos

Rated RPM1800 rpm

Emission StandardBS III

Max Torque1100 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight37733 kg

Machine Weight36700 kg

Counterweight7600 kg

Ground Pressure66 kPa

Hydraulic System

Main Pump TypeVariable displacement axial piston pumps

Maximum Hydraulic Flow480 L/min

Maximum System Pressure350 bar

Hydraulic Oil Capacity430 litres

Auxiliary Hydraulic Flow180 L/min

Working Range

Maximum Digging Depth6800 mm

Maximum Vertical Wall Digging Depth5348 mm

Maximum Reach at Ground Level9900 mm

Maximum Dumping Height7100 mm

Maximum Cutting Height10200 mm

Boom Length6.450 m

Arm Length2650 mm

Bucket Breakout Force232 kN

Arm Tear-out Force184 kN

JCB 385LC QUARRY MASTER EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹2,75,831

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹1,24,00,000
Interest Amount (12 %)	₹41,49,869
Total Amount Payable	₹1,65,49,869

JCB 385LC QUARRY MASTER Pros and cons

Pros

Priced lower than some premium competitors (e.g., Volvo EC380D), making it more accessible for heavy‑duty buyers.
Typically offers high bucket digging force (~265.8 kN) and solid reach for deep cuts and loading.
Powered by JCB DieselMax (~284 hp) with high torque (~1150 Nm), suitable for quarry/mining tasks.

Cons

Engine output (~284 hp) is less than some competitors (e.g., Volvo EC380D ~297 hp).
Fuel tank (~590 L) is smaller than some models, potentially requiring more frequent refuels.
Bucket capacity (~1.4–1.6 m³) may be smaller compared to rivals with larger bucket options.

Download JCB 385LC QUARRY MASTER Brochure PDF

Download JCB 385LC QUARRY MASTER brochure online. Check out the JCB 385LC QUARRY MASTER PDF brochure at Only Heavy with all features and specifications.

JCB 385LC QUARRY MASTER Uses

Excavation

Digging

Construction

Material handling

Trenching
