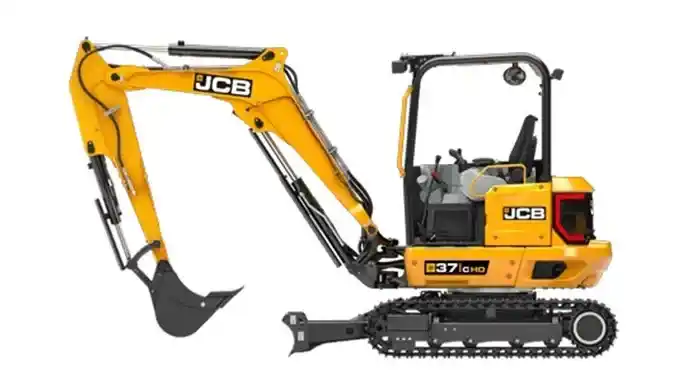

JCB 37C HD

Ex-Showroom Price

₹ 33 L - 35.02 L

Diesel

4052 kg

3480 mm

Download JCB 37C HD Brochure

Download JCB 37C HD brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of JCB 37C HD

Engine Power

25 HP

Operating Weight

4052 kg

Bucket capacity

0.11 Cu.m

Hydraulic system

70 L/min

Maximum Digging Depth

3480 mm

Boom Height

2.4 m

About JCB 37C HD Overview

JCB 37C HD is a popular excavator in the construction vehicle industry. The max operating weight of this excavator is 4052 Kg and also has a lifting capacity of 483 Kg. Moreover The max digging depth ...

JCB 37C HD Specifications & Features

Engine

Engine ModelEPA Tier 4 Final Perkins 403J-17

Gross Power18.9 kW

Net Power18.9 kW

Engine Power25 HP

Displacement1662 cc

Number of Cylinders2200 Nos

Rated RPM2200 rpm

Emission StandardBS V

Max Torque91.9 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight4052 kg

Machine Weight4502 kg

Counterweight986 kg

Ground Pressure32.3 kPa

Hydraulic System

Main Pump TypeVariable displacement piston

Maximum Hydraulic Flow76 L/min

Maximum System Pressure250 bar

Hydraulic Oil Capacity47.5 litres

Auxiliary Hydraulic Flow32 L/min

Working Range

Maximum Digging Depth3480 mm

Maximum Vertical Wall Digging Depth1870 mm

Maximum Reach at Ground Level5020 mm

Maximum Dumping Height3540 mm

Maximum Cutting Height4730 mm

Boom Length2.450 m

Arm Length1600 mm

Bucket Breakout Force32.4 kN

Arm Tear-out Force19.7 kN

JCB 37C HD EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹71,182

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹32,00,000
Interest Amount (12 %)	₹10,70,934
Total Amount Payable	₹42,70,934

JCB 37C HD Pros and cons

Pros

Compact yet powerful for its class — good balance of size and performance for tight zones.

Fuel‑efficient Perkins engine (25.3 HP) for lower running costs.

Superior bucket digging force (~32.4 kN) useful for harder soils.

Cons

Relatively smaller bucket capacity (~0.11 m³) — not ideal for very heavy digging tasks.

Fuel consumption higher (~7 L/hr) than some competitors in its segment.

Operating weight (~4052 kg) can make transport/logistics slightly more involved.

Download JCB 37C HD Brochure PDF

Download JCB 37C HD brochure online. Check out the JCB 37C HD PDF brochure at Only Heavy with all features and specifications.

JCB 37C HD Uses

Excavation

Digging

Construction

Material handling

Trenching
