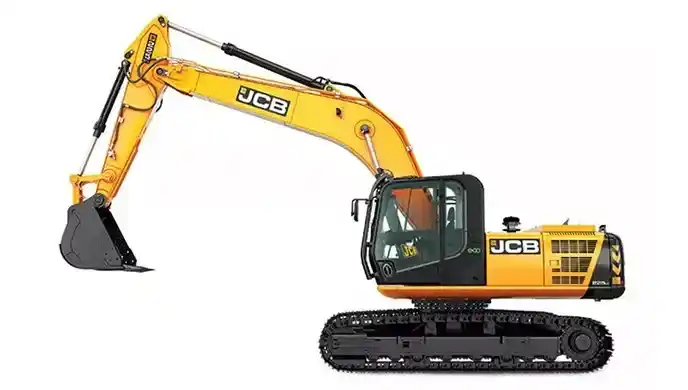

JCB 225LC ECO PLUS

Ex-Showroom Price

₹ 57 L - 60.01 L

Diesel

21750 kg

9130 mm

Download JCB 225LC ECO PLUS Brochure

Download JCB 225LC ECO PLUS brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of JCB 225LC ECO PLUS

Engine Power

170 HP

Operating Weight

21750 kg

Bucket capacity

1.2 Cu.m

Hydraulic system

213 L/min

Maximum Digging Depth

9130 mm

Boom Height

5.7 m

About JCB 225LC ECO PLUS Overview

JCB is a very popular name in the heavy construction equipment segment. JCB 225LC ECO PLUS is designed with segment best specification, which helps in providing better work efficiency. The Excavator m...

JCB 225LC ECO PLUS Specifications & Features

Engine

Engine ModelJCB ecoMAX 448

Gross Power127 kW

Net Power127 kW

Engine Power170 HP

Displacement4760 cc

Number of Cylinders4 Nos

Rated RPM1800 rpm

Emission StandardBS IV

Max Torque704 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight21750 kg

Machine Weight21750 kg

Counterweight5431 kg

Ground Pressure48.1 kPa

Hydraulic System

Main Pump Typevariable displacement axial piston pumps

Maximum Hydraulic Flow426 L/min

Maximum System Pressure343 bar

Hydraulic Oil Capacity260 litres

Auxiliary Hydraulic Flow156 L/min

Working Range

Maximum Digging Depth9130 mm

Maximum Vertical Wall Digging Depth3850 mm

Maximum Reach at Ground Level9210 mm

Maximum Dumping Height6360 mm

Maximum Cutting Height9130 mm

Boom Length5.700 m

Arm Length2400 mm

Bucket Breakout Force129.5 kN

Arm Tear-out Force114.7 kN

JCB 225LC ECO PLUS EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,24,569

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹56,00,000
Interest Amount (12 %)	₹18,74,134
Total Amount Payable	₹74,74,134

JCB 225LC ECO PLUS Pros and cons

Pros

High power & torque: 170 HP / 704 Nm for strong digging performance.

Fuel efficiency: Eco+ designation with fuel‑saving technology and regeneration hydraulics

Comfort & tech: Standard AC cabin + GPS/LiveLink telematics support (machine tracking & health alerts).

Cons

Fuel consumption: ~16 L/hour typical, which may be higher than some competitors.

Operating weight (~21.75 t) can limit transport ease compared to lighter models

Smaller fuel tank (~343 L) means more frequent refuel on long jobs.

Download JCB 225LC ECO PLUS Brochure PDF

Download JCB 225LC ECO PLUS brochure online. Check out the JCB 225LC ECO PLUS PDF brochure at Only Heavy with all features and specifications.

JCB 225LC ECO PLUS Uses

Excavation

Digging

Construction

Material handling

Trenching
