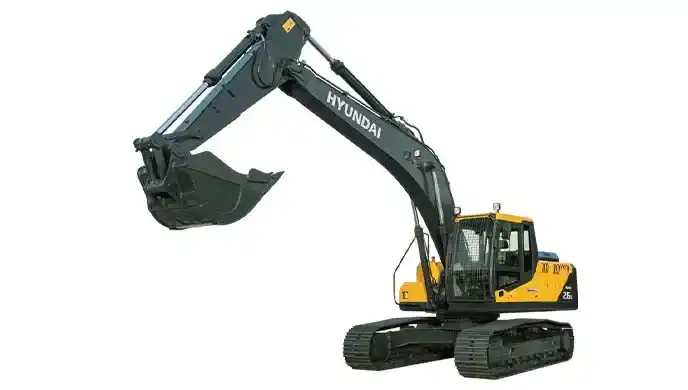

HYUNDAI R215L SMART PLUS

Ex-Showroom Price

₹ 64 L - 66 L

Diesel

22200 kg

6740 mm

Download HYUNDAI R215L SMART PLUS Brochure

Download HYUNDAI R215L SMART PLUS brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of HYUNDAI R215L SMART PLUS

Engine Power

148 HP

Operating Weight

22200 kg

Bucket capacity

1.7 Cu.m

Hydraulic system

220 L/min

Maximum Digging Depth

6740 mm

Boom Height

5.6 m

About HYUNDAI R215L SMART PLUS Overview

HYUNDAI is a very popular name in the heavy construction equipment segment. HYUNDAI R215L SMART PLUS is designed with segment best specification, which helps in providing better work efficiency. The E...

HYUNDAI R215L SMART PLUS Specifications & Features

Engine

Engine ModelCummins 6BTAA 5.9 C

Gross Power110 kW

Net Power104 kW

Engine Power148 HP

Displacement5880 cc

Number of Cylinders6 Nos

Rated RPM2000 rpm

Emission StandardBS III

Max Torque622 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight22200 kg

Machine Weight21200 kg

Counterweight4300 kg

Ground Pressure46 kPa

Hydraulic System

Main Pump TypeVariable displacement axial piston pump

Maximum Hydraulic Flow442 L/min

Maximum System Pressure350 bar

Hydraulic Oil Capacity240 litres

Auxiliary Hydraulic Flow120 L/min

Working Range

Maximum Digging Depth6740 mm

Maximum Vertical Wall Digging Depth6150 mm

Maximum Reach at Ground Level9930 mm

Maximum Dumping Height6600 mm

Maximum Cutting Height9600 mm

Boom Length5.680 m

Arm Length2920 mm

Bucket Breakout Force149 kN

Arm Tear-out Force103 kN

HYUNDAI R215L SMART PLUS EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,40,140

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹63,00,000
Interest Amount (12 %)	₹21,08,401
Total Amount Payable	₹84,08,401

HYUNDAI R215L SMART PLUS Pros and cons

Pros

Equipped with a Cummins engine ~148 HP suitable for heavy duty work.

Boom and arm are built with high-strength steel and internal baffle plates for rugged jobs

Optional Hi-Track remote management monitoring for fuel efficiency and maintenance alerts.

Cons

Final price depends on location, optional packages, and negotiations; exact figures are dealer-specific.

Boom length (~5680 mm) is good but slightly shorter versus some comparable excavators (e.g., Komatsu PC210)

Shorter warranty (typically 1 yr / 2000 hr) compared to some competitors.

Download HYUNDAI R215L SMART PLUS Brochure PDF

Download HYUNDAI R215L SMART PLUS brochure online. Check out the HYUNDAI R215L SMART PLUS PDF brochure at Only Heavy with all features and specifications.

HYUNDAI R215L SMART PLUS Uses

Excavation

Digging

Construction

Material handling

Trenching
