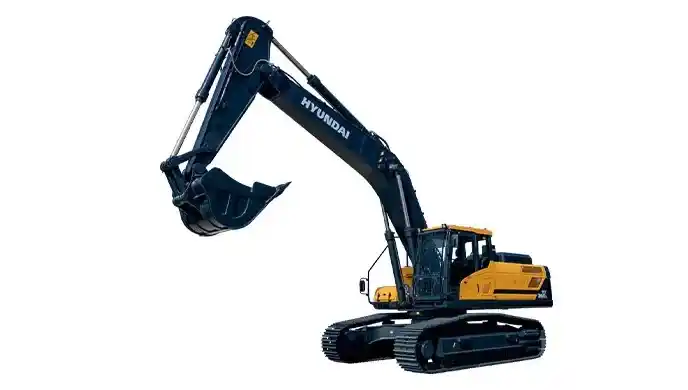

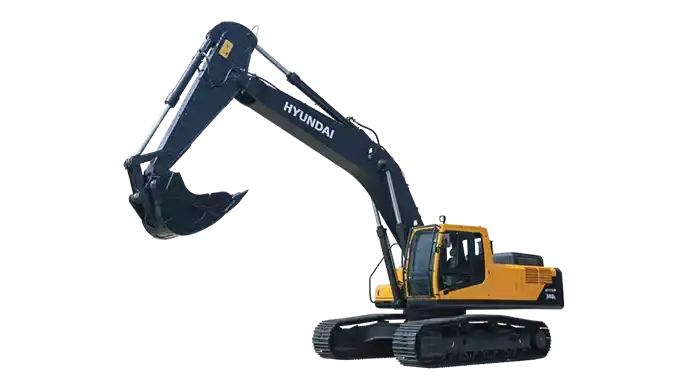

HYUNDAI HX380L

Ex-Showroom Price

₹ 1.24 Cr - 1.26 Cr

Diesel

37200 kg

6820 mm

Download HYUNDAI HX380L Brochure

Download HYUNDAI HX380L brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of HYUNDAI HX380L

Engine Power

255 HP

Operating Weight

37200 kg

Bucket capacity

2.3 Cu.m

Hydraulic system

315 L/min

Maximum Digging Depth

6820 mm

Boom Height

6.45 m

About HYUNDAI HX380L Overview

HYUNDAI HX380L is a popular excavator in the construction vehicle industry. The max operating weight of this excavator is 37200 Kg and also has a lifting capacity of 1650 Kg. Moreover The max digging ...

HYUNDAI HX380L Specifications & Features

Engine

Engine ModelHyundai HM8.3

Gross Power194 kW

Net Power194 kW

Engine Power260 HP

Displacement8300 cc

Number of Cylinders6 Nos

Rated RPM2200 rpm

Emission StandardBS IV

Max Torque1150 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight37200 kg

Machine Weight37200 kg

Counterweight6753 kg

Ground Pressure69.6 kPa

Hydraulic System

Main Pump TypeVariable displacement tandem axial piston pumps

Maximum Hydraulic Flow630 L/min

Maximum System Pressure343 bar

Hydraulic Oil Capacity414 litres

Auxiliary Hydraulic Flow121 L/min

Working Range

Maximum Digging Depth6820 mm

Maximum Vertical Wall Digging Depth6320 mm

Maximum Reach at Ground Level10580 mm

Maximum Dumping Height7120 mm

Maximum Cutting Height10190 mm

Boom Length6.450 m

Arm Length2650 mm

Bucket Breakout Force215 kN

Arm Tear-out Force184 kN

HYUNDAI HX380L EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹2,73,607

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹1,23,00,000
Interest Amount (12 %)	₹41,16,402
Total Amount Payable	₹1,64,16,402

HYUNDAI HX380L Pros and cons

Pros

Robust 260 HP power makes it suitable for heavy‑duty mining and earthmoving.

With ~37.2 t operating weight, it offers excellent stability for digging, lifting, and ripping tasks.

2.1 m³ bucket lets you move large volumes per cycle.

Cons

69.6 kPa ground pressure can make soft or muddy terrains challenging.

Less than some models rated >270 HP — may affect heavy mining cycle speeds vs premium peers.

Large diesel consumption and maintenance costs inherent to big excavators.

Download HYUNDAI HX380L Brochure PDF

Download HYUNDAI HX380L brochure online. Check out the HYUNDAI HX380L PDF brochure at Only Heavy with all features and specifications.

HYUNDAI HX380L Uses

Excavation

Digging

Construction

Material handling

Trenching
